JBL Professional JBL JRX215 Passive 15-inch two-way loudspeaker

The JRX215 is a trapezoidal fifteen-inch two-way box for live sound, playback and speech. The M115-8A woofer uses a 64 mm edgewound ribbon voice coil for efficiency and power handling, paired with a 2414H-C compression driver on a Progressive Transition waveguide, crossed at 2.2 kHz. Sensitivity is 99 dB and it is rated 250 W continuous into 8 ohms.

Coverage is 90 by 50 degrees nominal, with 129 dB maximum output and response to 41 Hz at -10 dB. Connection is a Neutrik Speakon NL-4 and a parallel quarter-inch jack; the enclosure is MDF in black carpet. JBL recommends 250 W to 500 W of amplifier into 8 ohms; an external amplifier is required.

Type	Passive 15-inch two-way loudspeaker
Nominal impedance	8 ohms
Power rating (continuous / peak)	250 W / 1000 W
Recommended amplifier power	250 W to 500 W into 8 ohms
Maximum SPL (1 m)	129 dB
Sensitivity	99 dB SPL (1 W / 1 m)
Frequency range (-10 dB)	41 Hz - 18 kHz
Frequency response (+/-3 dB)	59 Hz - 13 kHz
Nominal dispersion	90 x 50 degrees
Transducers	JBL M115-8A woofer; JBL 2414H-C 1-inch exit compression driver
Crossover frequency	2.2 kHz

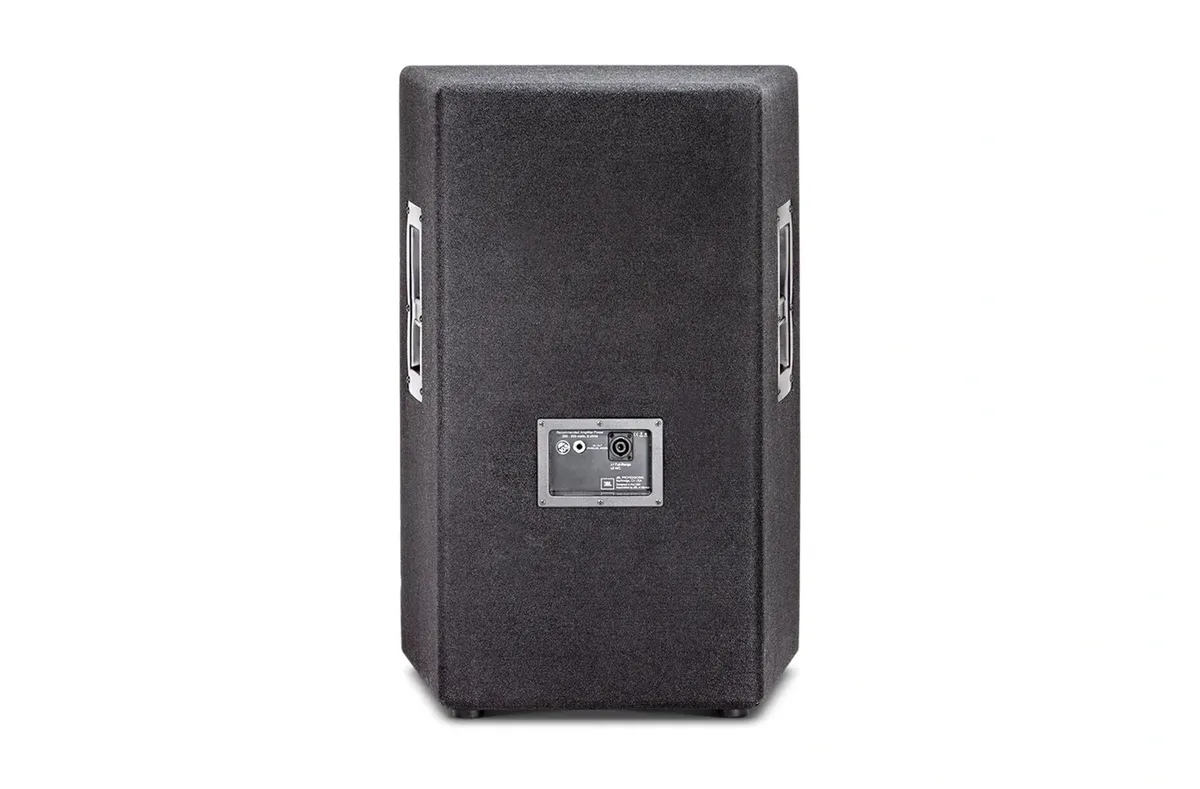

Inputs	Neutrik Speakon NL-4 and parallel quarter-inch TS jack
Enclosure	MDF covered in black carpet
Dimensions (H x W x D)	699 x 460 x 432 mm (27.5 x 18.1 x 17 in)
Net weight	27.4 kg (60.5 lb)
