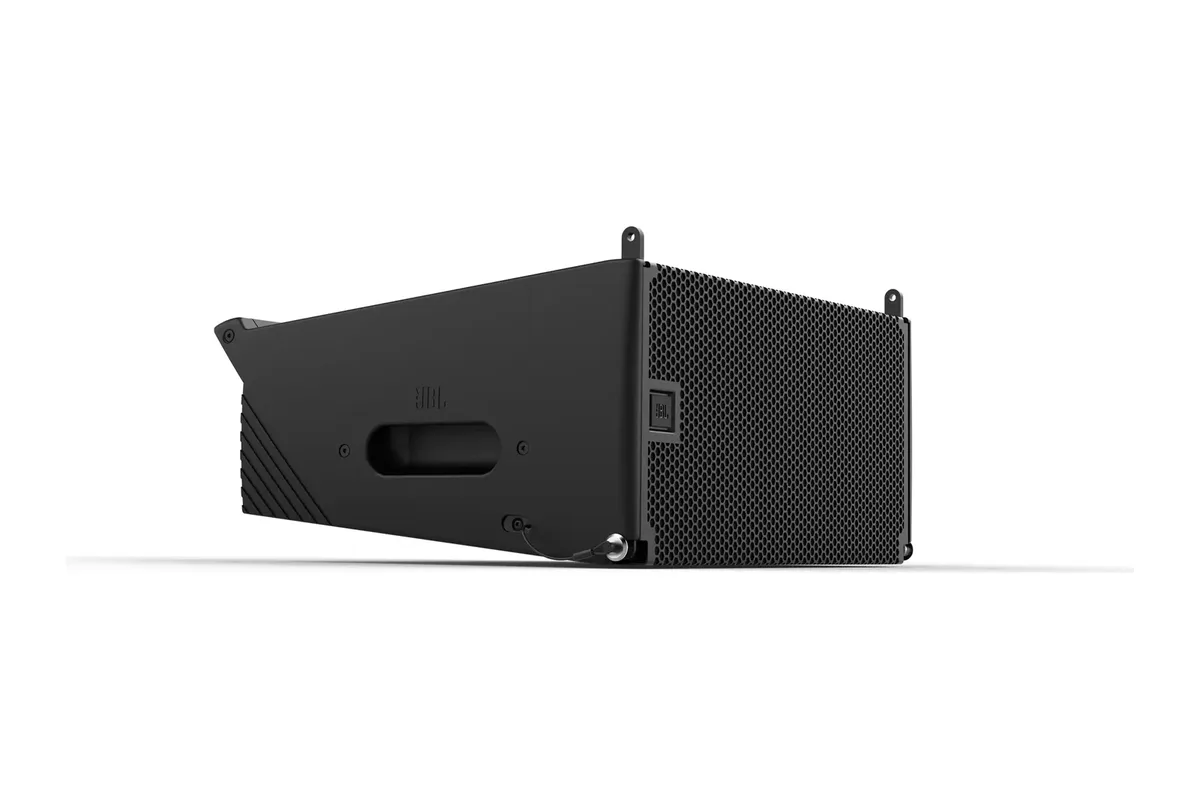

JBL Professional JBL SRX906LA Two-way active line array element

The SRX906LA is the compact two-way active line array box in the SRX900 family. Two JBL 2186G 6.5-inch neodymium Differential Drive woofers work with a 2432H-3 1.5-inch exit compression driver for 134 dB and 120 degrees nominal horizontal coverage from 500 Hz to 16 kHz. Continuous power is 600 W, split 400 W LF and 200 W HF.

Amplification is built in, Class D and passively cooled, on a universal power supply. Two Neutrik etherCON ports carry HARMAN HControl for setup and monitoring, DSP is user-controllable from the rear-panel LCD, and LevelMax limiting uses excursion-control algorithms rather than a simple thermal limiter to keep the transducers inside their range. A three-point rigging system sets inter-enclosure angles from 0.5 to 12 degrees, and the polypropylene enclosure has four recessed handholds. Each box weighs 37 lb.
