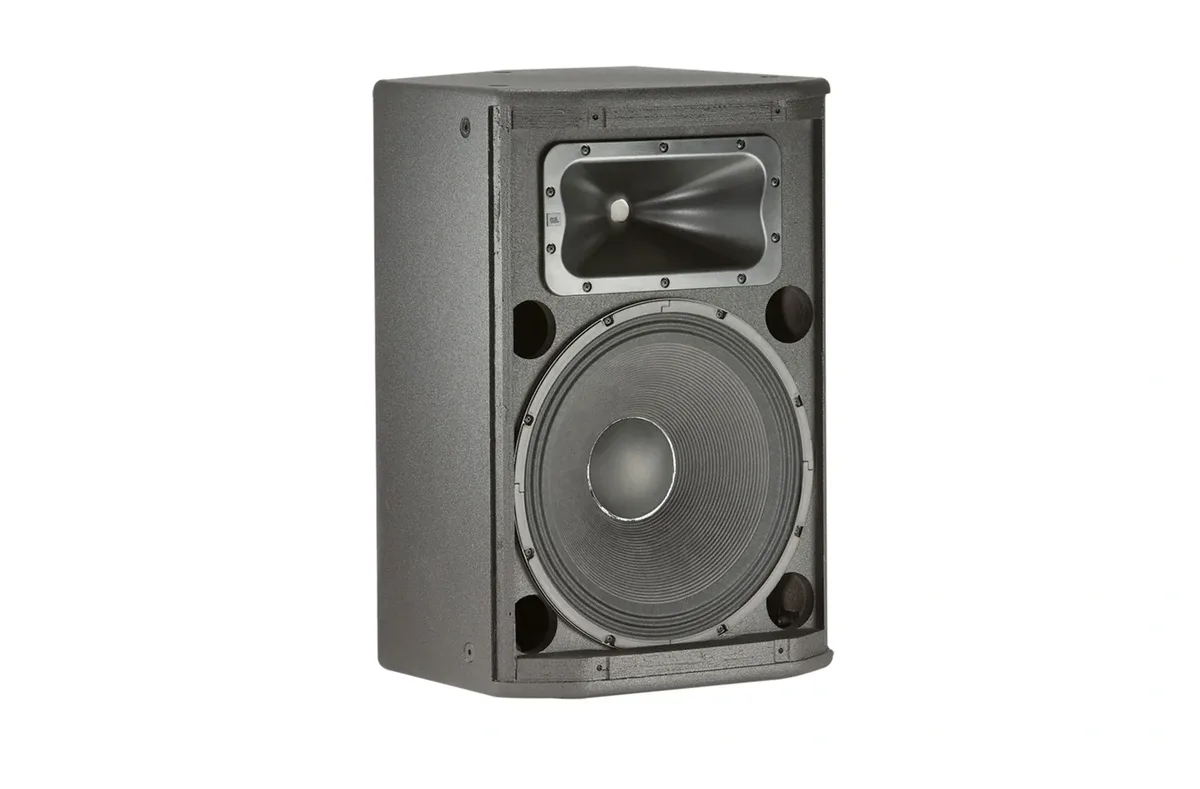

JBL PRX415M 15-inch two-way passive loudspeaker / stage monitor

The PRX415M is the fifteen-inch member of the PRX400 passive line, built to work either as a main on a tripod or as a floor wedge. Sensitivity is 98 dB at 1 W / 1 m and the box is rated 300 W continuous into 8 ohms, with 90 by 50 degree nominal coverage. An external amplifier is required.

The cabinet is DuraFlex-coated plywood with a heavy 16-gauge screen-backed steel grille and a dual-angle pole socket. SonicGuard keeps the high-frequency driver inside its limits without interrupting the show. Input is on parallel Neutrik Speakon NL-2 / quarter-inch combo jacks.

Type	15-inch two-way passive loudspeaker / stage monitor
Nominal impedance	8 ohms
Power rating (continuous / program / peak)	300 W / 600 W / 1200 W pink noise
Maximum SPL (1 m)	122 dB SPL continuous, 129 dB SPL peak
System sensitivity	98 dB SPL (1 W @ 1 m)
Frequency range (-10 dB)	55 Hz - 19 kHz
Frequency response (+/-3 dB)	66 Hz - 16 kHz
Coverage pattern	90 x 50 degrees nominal
Inputs	Parallel Neutrik Speakon NL-2 / quarter-inch combo jacks
Enclosure	DuraFlex-coated plywood, 16-gauge steel grille
Mounting	Dual-angle pole socket
Dimensions (H x W x D)	650 x 429 x 457 mm (25.6 x 16.9 x 18 in)
Net weight	21 kg (46 lb)
