JBL Professional JBL VRX932LA-1 Constant-curvature 12-inch two-way line array element

The VRX932LA-1 is the twelve-inch constant-curvature array element, 46 lb, for hangs of up to six. A 2262H neodymium Differential Drive woofer with dual voice coils works with three 2408J annular-ring-diaphragm compression drivers, crossed at 1.2 kHz, for 100 by 15 degree nominal coverage.

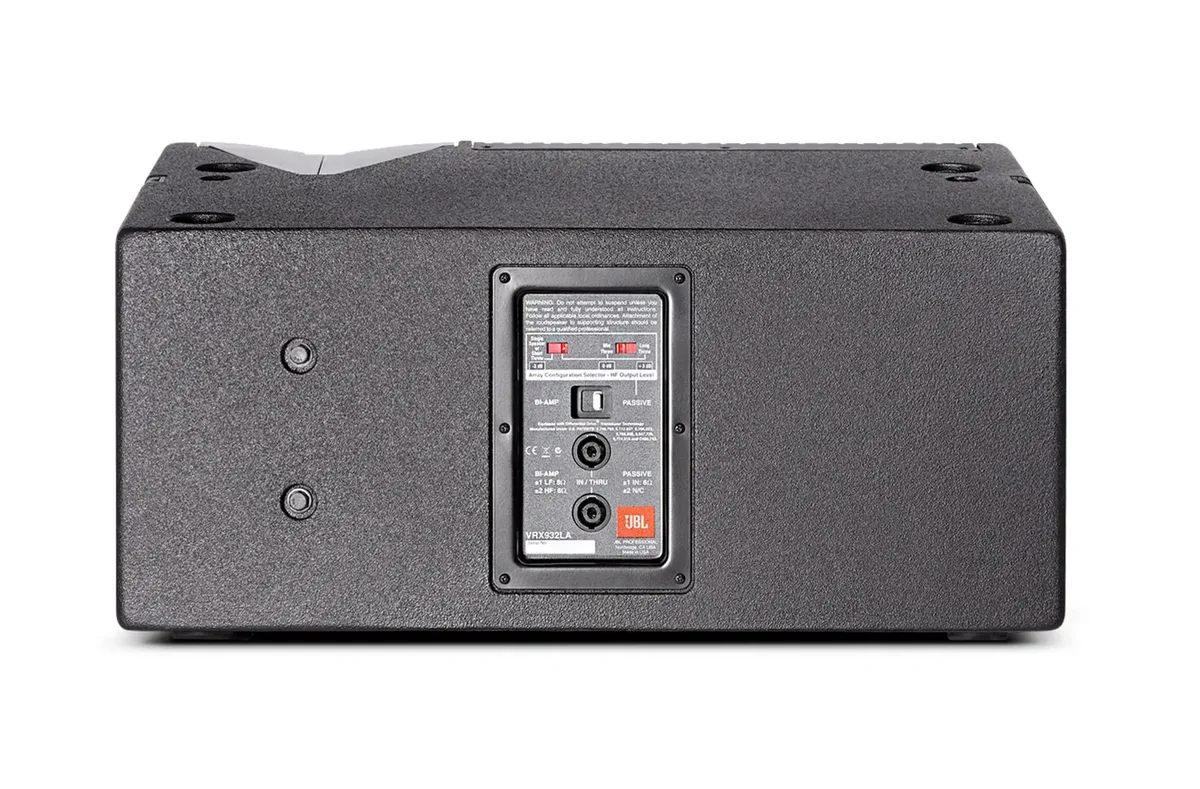

It is externally switchable between passive 8 ohm operation and bi-amp, and JBL publishes active tunings. Two Neutrik Speakon NL-4 connectors handle looping; suspension is on the optional VRX932LA-AF frame kit. The cabinet is 18 mm 11-ply birch in black DuraFlex. An external amplifier is required.

Type	Constant-curvature 12-inch two-way line array element
Nominal impedance	Passive 8 ohms; bi-amp LF 8 ohms, HF 8 ohms
Power rating (continuous / program / peak)	800 W / 1600 W / 3200 W
Maximum SPL (1 m)	130 dB peak passive; bi-amp LF 130 dB, HF 139 dB
Sensitivity	Passive 95 dB SPL
Frequency range (-10 dB)	57 Hz - 20 kHz
Coverage pattern	100 x 15 degrees nominal
Crossover	1.2 kHz; passive or bi-amp, externally switchable
LF driver	1 x JBL 2262H 305 mm (12-inch) neodymium Differential Drive woofer
HF drivers	3 x JBL 2408J 38 mm voice coil neodymium compression drivers
Inputs	2 x Neutrik Speakon NL-4
Enclosure	18 mm 11-ply birch plywood, black DuraFlex finish
Dimensions (H x W x D)	343 x 597 x 376 mm (13.5 x 23.5 x 14.8 in)
Net weight (each)	21 kg (46 lb)
