JBL Professional JBL JRX212 Passive 12-inch two-way stage monitor

The JRX212 is a passive twelve-inch wedge. The M112-8 woofer uses a 64 mm edgewound ribbon voice coil, which puts more copper in the gap than round wire and buys efficiency and power handling, and it meets a 2414H-C compression driver on a Progressive Transition waveguide at 2.1 kHz. Sensitivity is 98 dB and the box is rated 250 W continuous into 8 ohms.

Coverage is 90 by 50 degrees nominal with 128 dB maximum output. Connection is a Neutrik Speakon NL-4 and a parallel quarter-inch jack. The enclosure is MDF covered in black carpet. JBL recommends 250 W to 500 W of amplifier into 8 ohms; an external amplifier is required.

Type	Passive 12-inch two-way stage monitor
Nominal impedance	8 ohms
Power rating (continuous / peak)	250 W / 1000 W
Recommended amplifier power	250 W to 500 W into 8 ohms
Maximum SPL (1 m)	128 dB
Sensitivity	98 dB SPL (1 W / 1 m)
Frequency range (-10 dB)	60 Hz - 20 kHz
Frequency response (+/-3 dB)	80 Hz - 18 kHz
Nominal dispersion	90 x 50 degrees
Transducers	JBL M112-8 woofer; JBL 2414H-C 1-inch exit compression driver
Crossover frequency	2.1 kHz

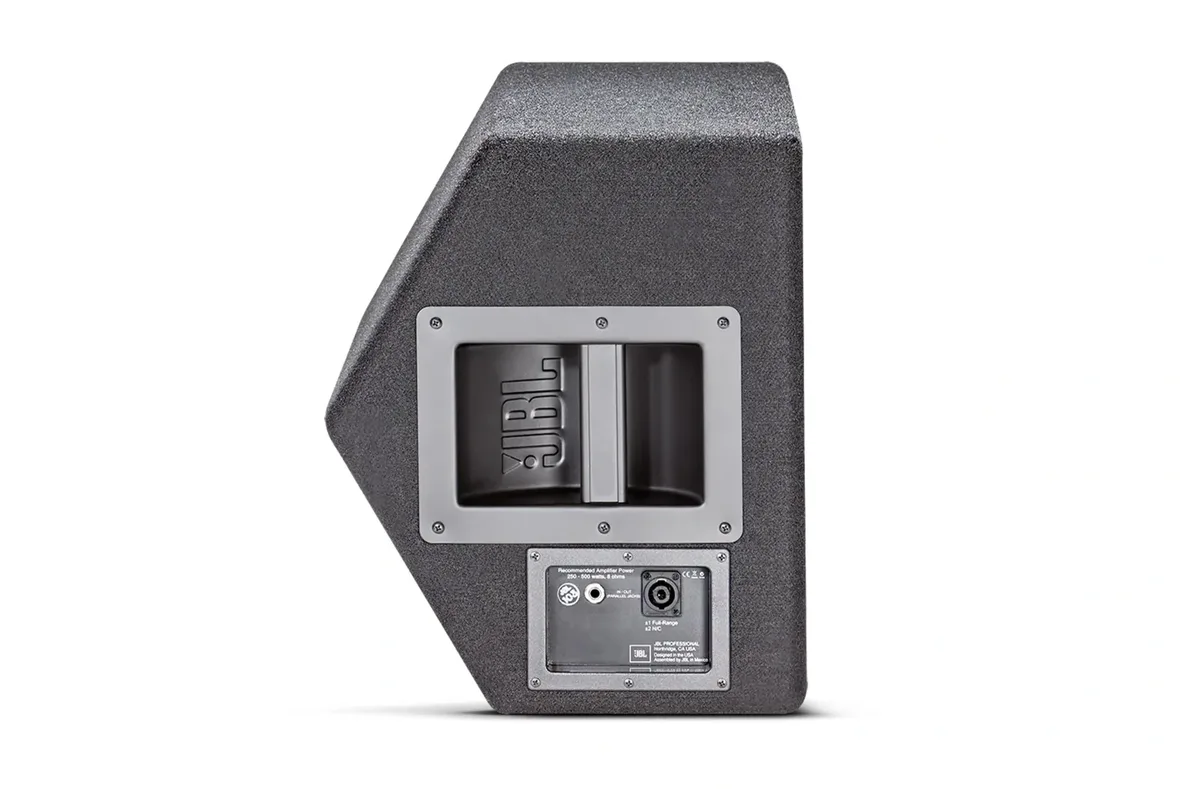

Inputs	Neutrik Speakon NL-4 and parallel quarter-inch TS jack
Enclosure	MDF covered in black carpet
Dimensions (H x W x D)	584 x 399 x 325 mm (23 x 15.7 x 12.8 in)
Net weight	19.5 kg (43 lb)
