JBL Professional JBL EON208P Portable two-way stereo PA system with powered mixer

The EON208P is a complete portable PA that packs into itself. Two 8-inch two-way cabinets clip either side of a detachable 8-channel powered mixer, and the whole system carries in one hand. Output is 300 W total, run as 2 x 150 W stereo from a Class D amplifier, for 121 dB peak with coverage of 100 degrees horizontal by 60 degrees vertical.

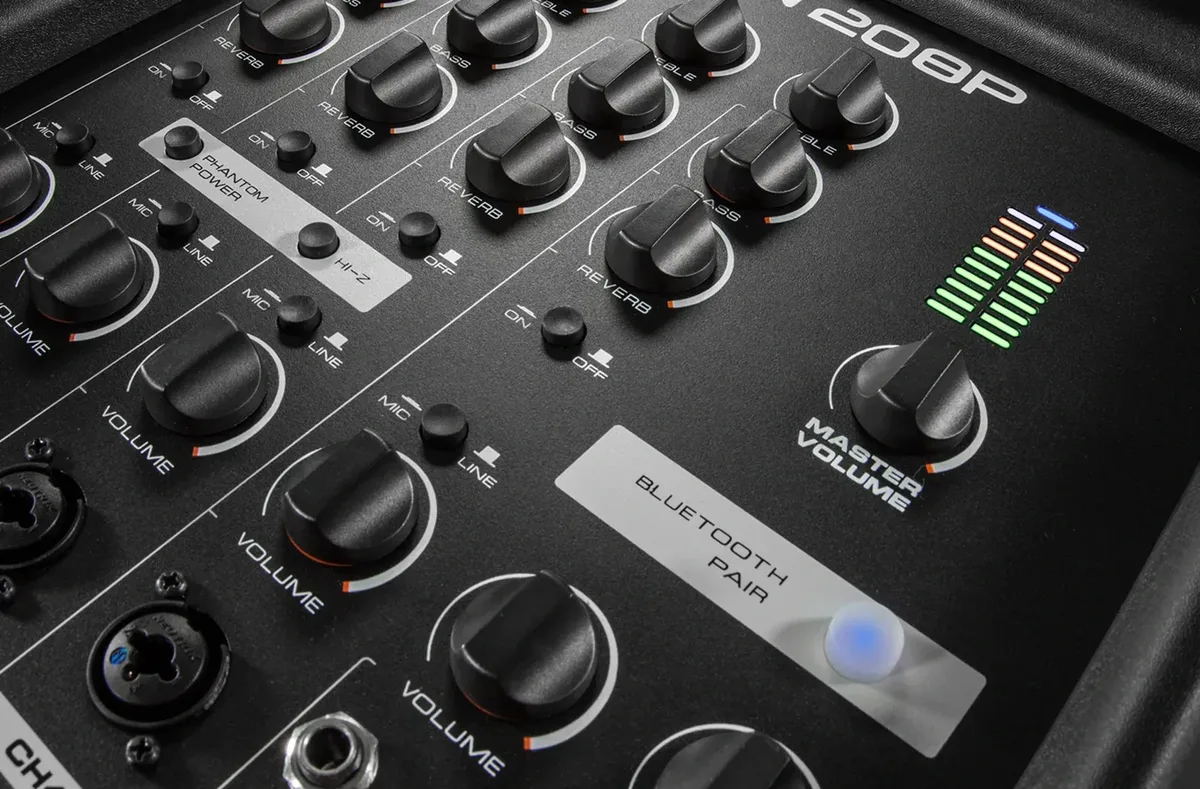

Channels 1 to 4 are XLR/quarter-inch combo jacks; channels 1 and 2 share a phantom power switch and channel 3 has a Hi-Z switch for a guitar. Channels 5 and 6 take balanced TRS or RCA line sources, and Bluetooth handles playback from a phone. Each channel gets high- and low-shelf EQ with 12 dB of cut and boost, there is onboard reverb and DSP limiting, and an AKG microphone is included.

Type	Portable two-way stereo PA system with powered mixer
System power	300 W (2 x 150 W stereo), Class D
Maximum SPL	121 dB peak
Frequency range (-10 dB)	60 Hz - 20 kHz
Frequency response (+/-3 dB)	70 Hz - 18 kHz
Coverage (H x V)	100 x 60 degrees
Transducers	8-inch (203 mm) woofer; 1-inch neodymium aluminium dome tweeter (per cabinet)
Crossover	2 kHz, 2-way passive network
Mixer channels	8; channels 1-4 XLR/TRS combo, 5-6 stereo TRS and RCA, Bluetooth
Enclosure	Polypropylene with powder-coated perforated steel grille
Mounting	36 mm pole socket
Dimensions (H x W x D)	575 x 775 x 400 mm (22.6 x 30.5 x 15.7 in)
Net weight	17.6 kg (38.8 lb)
