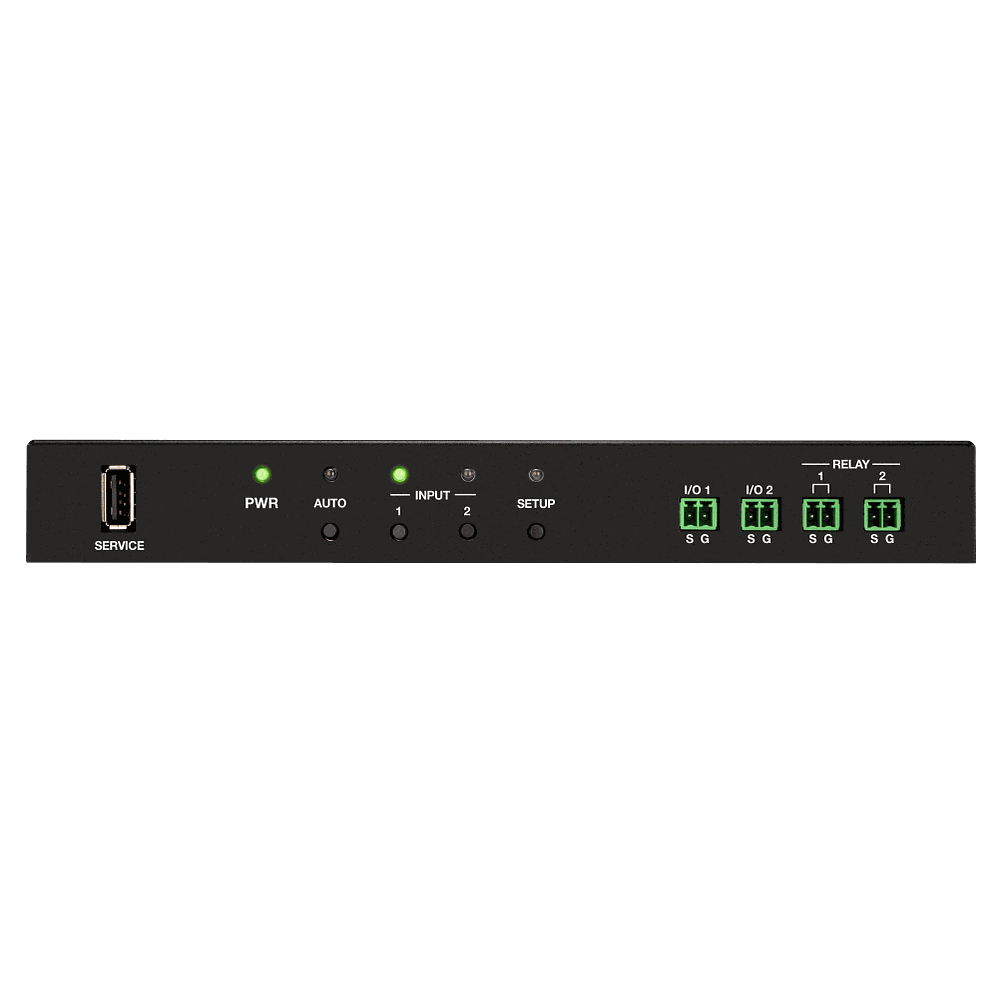

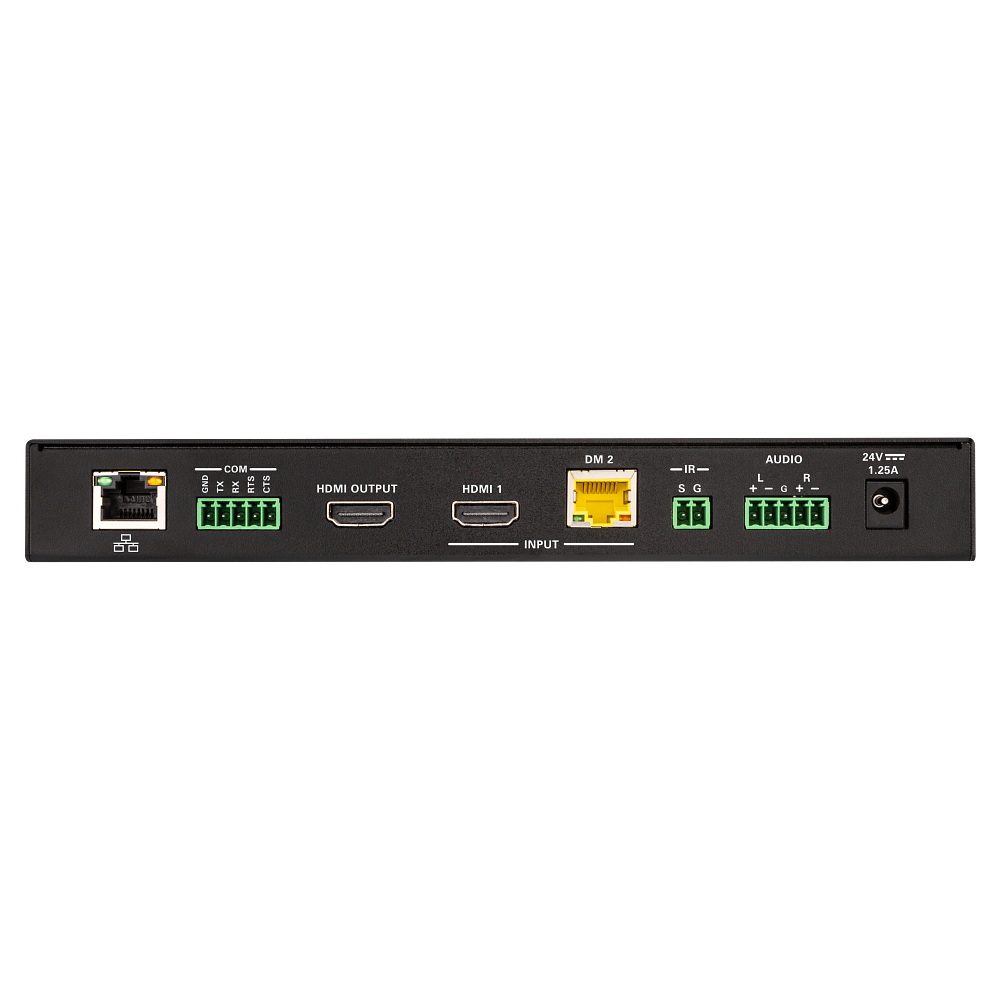

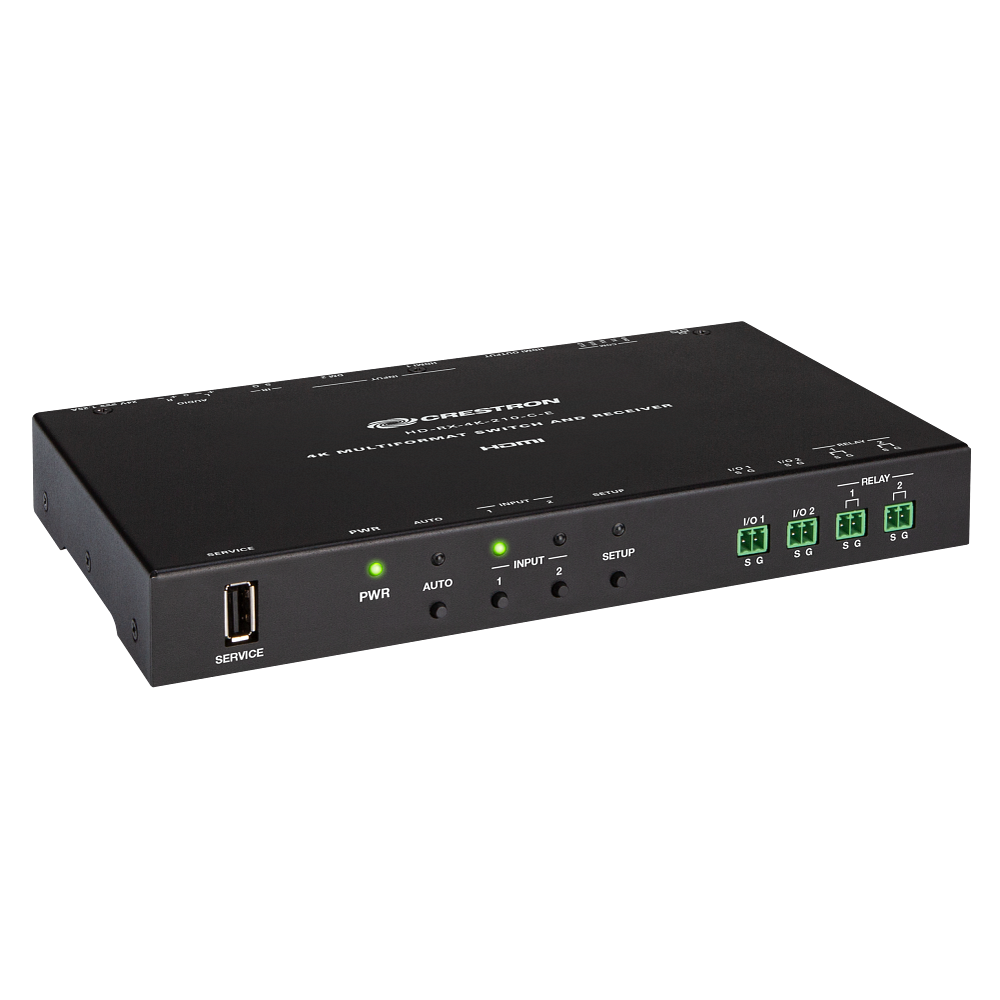

Crestron HD-RX-4K-210-C-E DMPS Essentials 2x1 AV Switch and Receiver
The HD-RX-4K-210-C-E is a DMPS Essentials multiformat switch and receiver that puts the switching at the display end. One DM Essentials input takes the run from a remote transmitter, a local HDMI input takes the source in the room, and the unit switches between them and handles the audio presentation.
It is compatible with all DM Essentials transmitters except the TXU models. Firmware 1.0.5357.12100 or later is required for the 4K60 4:4:4 transmitters; pairing those with 1.0.5005.18300 or earlier gives an unstable link, so check the firmware before commissioning. It suits conference rooms and classrooms where the rack is elsewhere.
| Dimensions | 5.11 in. (130 mm) H x 10.53 in. (268 mm) with mounting flanges attached W x 1.10 in. (28 mm) D |
|---|---|
| Switcher | 2x1 auto-switching or manual, audio-follows-video, Crestron Auto-Locking and QuickSwitch HD technologies |
| Scaler (HDMI Output) | 4K video scaler with intelligent frame rate conversion, Deep Color support, content-adaptive noise reduction, 3:2/2:2 pull-down detection and recovery |
| Scaler Output Resolutions, HDMI | Auto (EDID preferred); 1280x720p@50Hz (720p50); 1280x720p@60Hz (720p60); 1920x1080i@25Hz (1080i25); 1920x1080i@30Hz (1080i30)... |
| Input Signal Types | HDMI (Dual-Mode DisplayPort compatible), DM Essentials |
| Ethernet | 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, CIP, DHCP, web browser setup and control |
| HDMI OUTPUT | (1) HDMI Type A connector, female; HDMI digital video/audio output; DVI compatible... |
| PWR | (1) bicolor green/amber LED, indicates that power is being applied to the HD-RX-4K-210-C-E from the power pack connected to either the... |
