Crestron HD-MD2X1-8K 2x1 8K AV Switcher and Smart Display Controller
The HD-MD2X1-8K is a two-input, one-output 8K AV switcher that also handles display control, so a small room does not need a separate control processor. Power the display on and off by schedule, by room occupancy, or on video sync detection, and switch between the two sources automatically as they come and go.

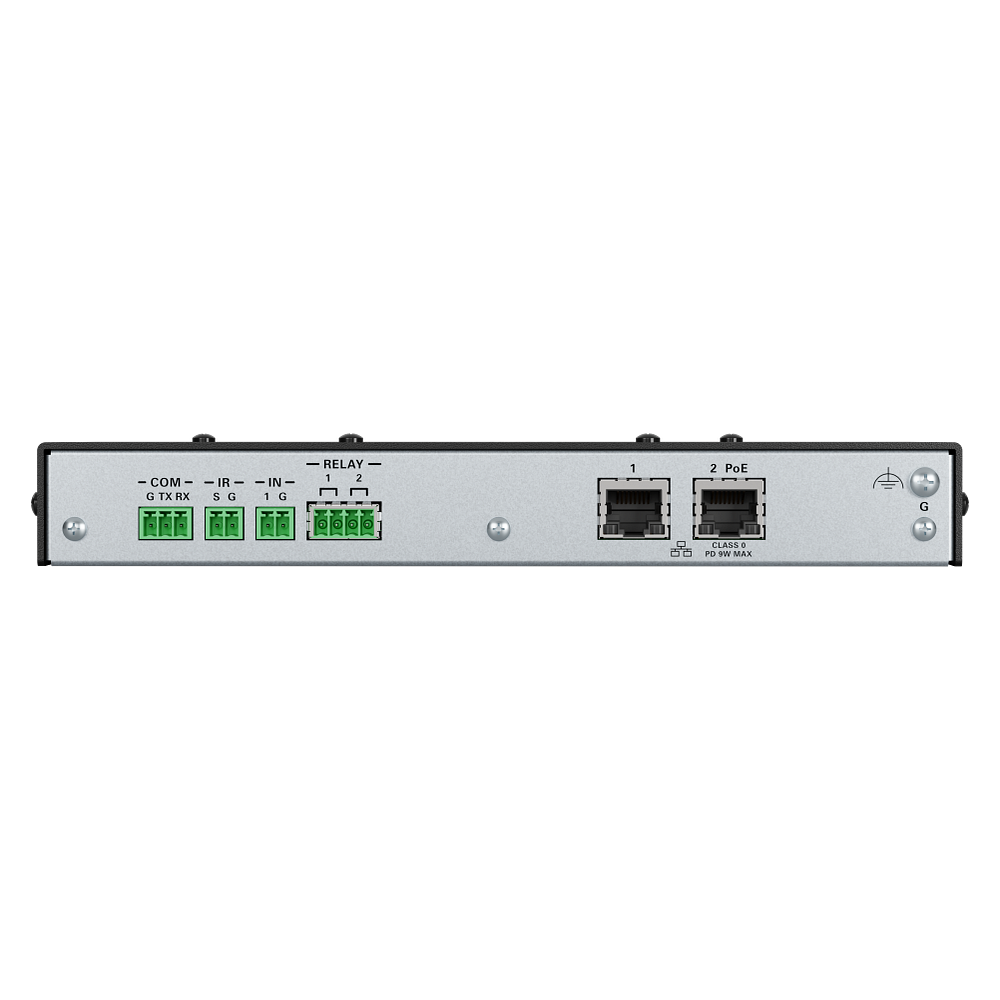

CEC over HDMI reaches both the source and the display, and RS-232, IR and relay control cover equipment that does not support it. It fits unified communications, digital signage and presentation spaces, and in a residence the same outputs run devices such as garage doors and TV lifts.
| Dimensions | 1.12 in. (28 mm) H x 8.36 in. (212 mm) W x 3.88 in. (99 mm) D |
|---|---|
| Input Signal Types | HDMI with HDR10, HDR10+. Dolby Vision, Deep Color, 8K60 4:4:4 support (DVI and Dual-Mode DisplayPort interface compatible) |
| Output Signal Types | HDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 8K60 4:4:4 support (DVI compatible) |

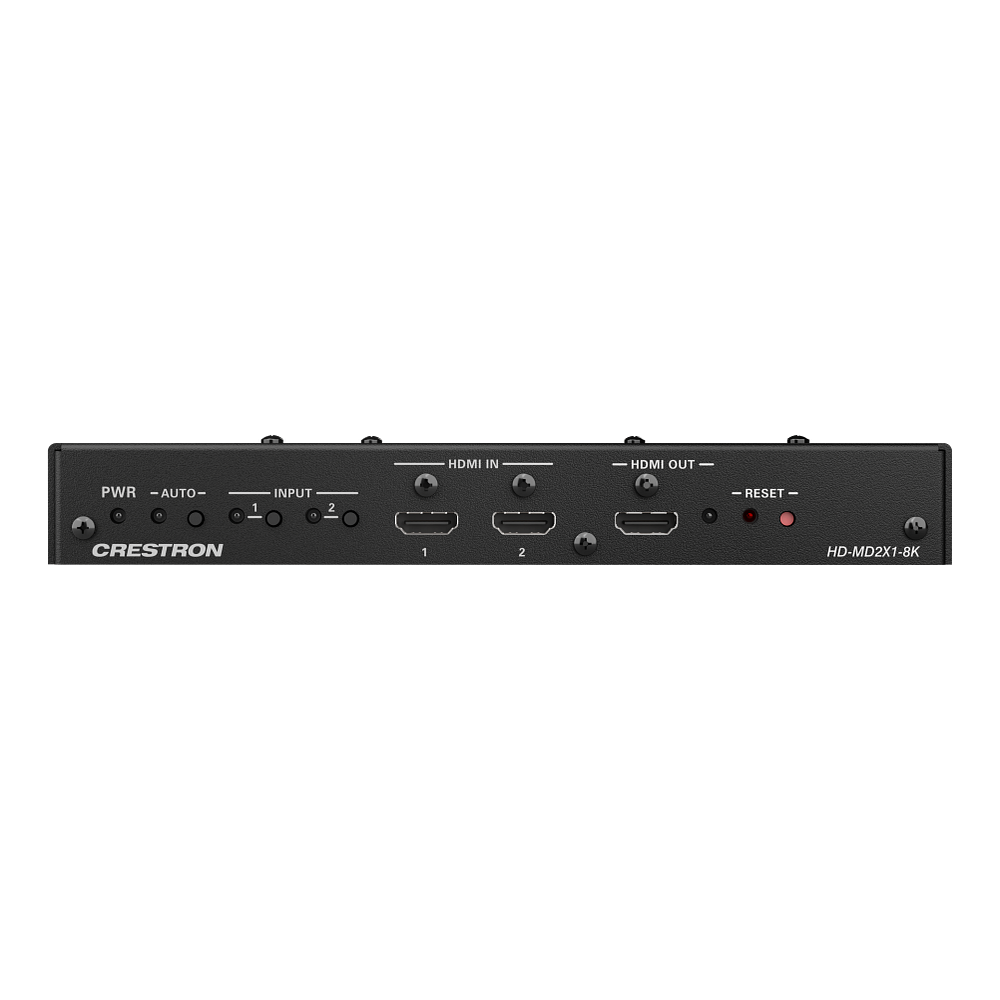

| HDMI IN 1 and 2 | (2) 19-pin Type A connectors, female; HDMI 2.1 compliant digital video/audio inputs (DVI and Dual-Mode DisplayPort interface compatible) |
| PWR | (1) LED; Amber indicates that the device is booting; Green indicates that the device is operational. |
| Temperature | 32 deg to 104 deg F (0 deg to 40 deg C) |
| Chassis | Metal, black finish, vented sides |
| Weight | 1.22 lb (.55 kg) |
