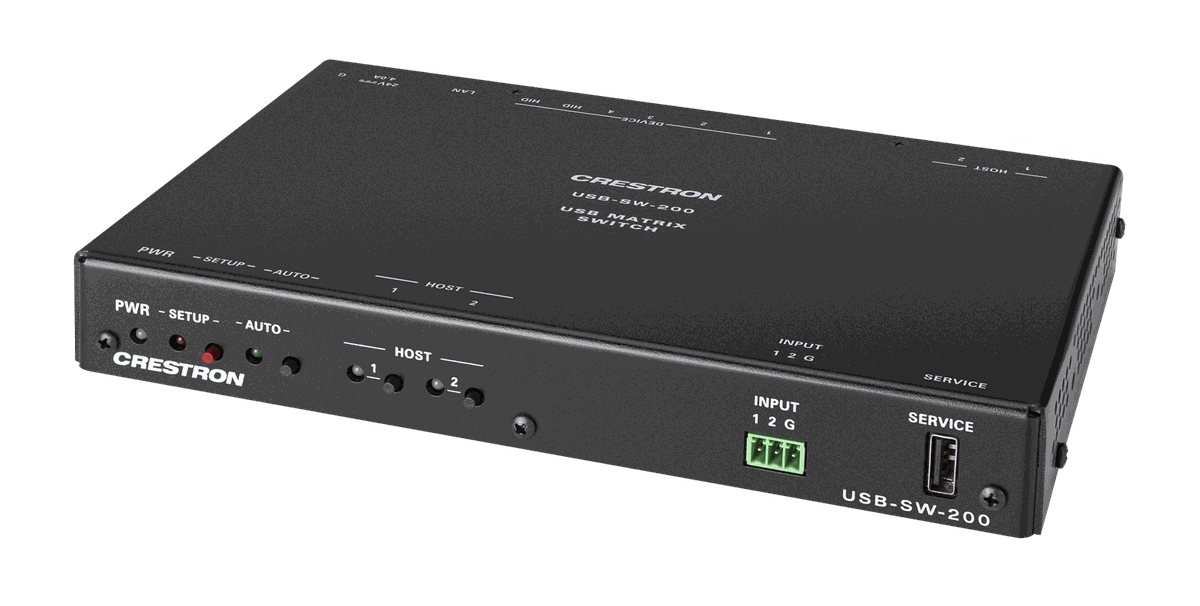

Crestron USB-SW USB 3.2 Data Matrix Switcher

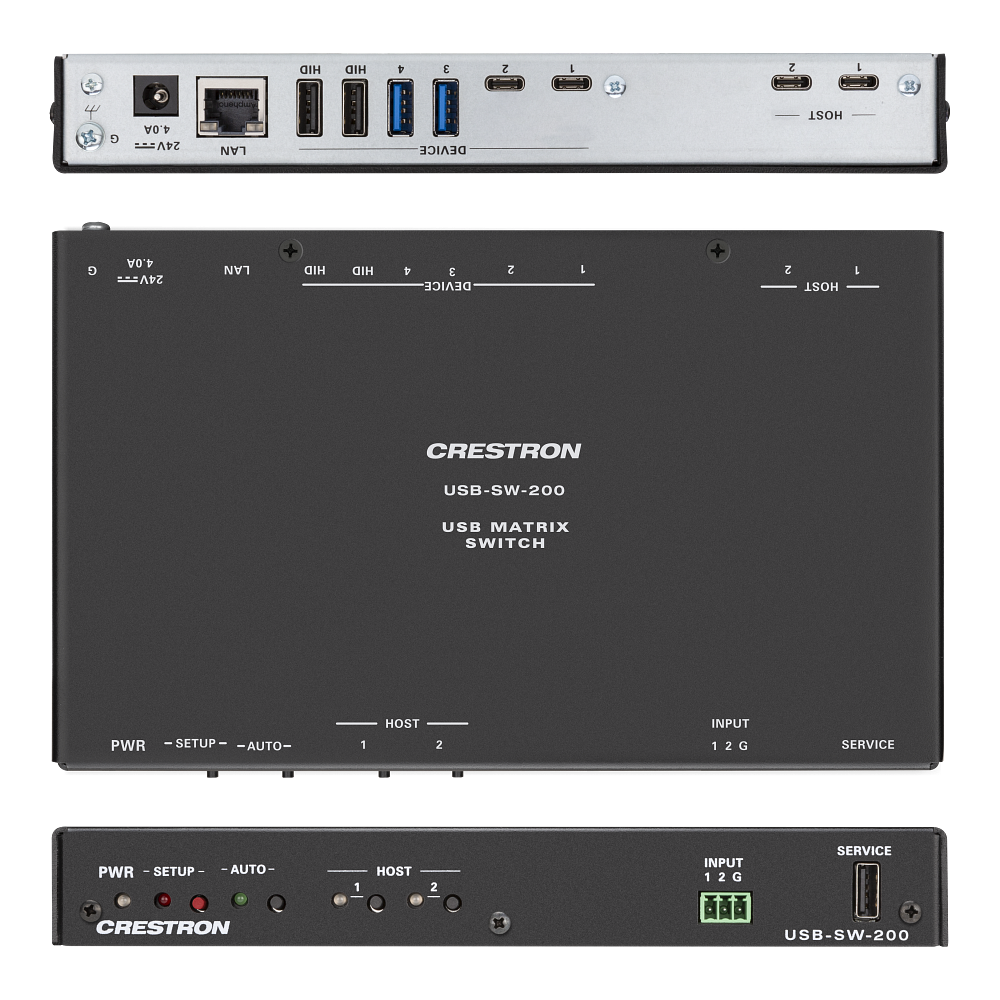

A room with a resident codec and a guest laptop needs the same camera, microphone, and touch device on either one. The USB-SW switchers do that job directly: six USB device ports route to two hosts on the USB-SW-200 or four hosts on the USB-SW-400, plug and play, with a button and an LED per host on the front panel and an auto-switching mode.

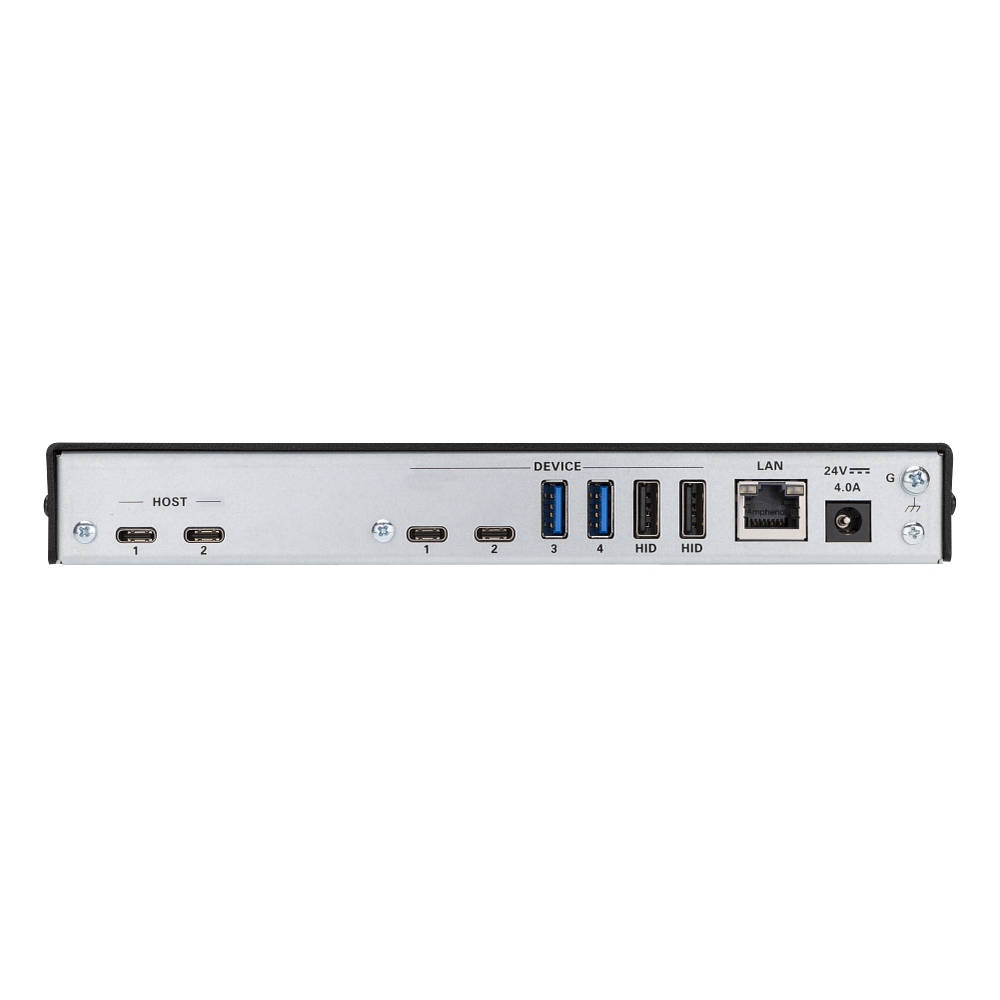

The device side is two USB-C 3.2 Gen 2 ports supplying up to 15 W each, two USB-A 3.2 ports at 4.5 W, and two USB-A 2.0 HID ports at 2.5 W for a keyboard and mouse. The USB-C ports carry data only, without DisplayPort Alt Mode or Power Delivery. A gigabit LAN port brings the switcher under control system management, and a 3-pin I/O connector allows external triggering. Both models run from a 4 A 24 VDC pack in a metal chassis, freestanding or surface mounted.

Hosts	USB-SW-200: (2) USB-C 3.2 Gen 2; USB-SW-400: (4) USB-C 3.2 Gen 2
Device Ports	(2) USB-C 3.2 Gen 2 at up to 15 W, (2) USB-A 3.2 at up to 4.5 W
HID Ports	(2) USB-A 2.0 for keyboard and mouse, up to 2.5 W
Note	USB-C data connectors do not support DisplayPort Alt Mode or Power Delivery
Network	(1) 8-pin RJ-45, 100Base-TX/1000Base-T Ethernet

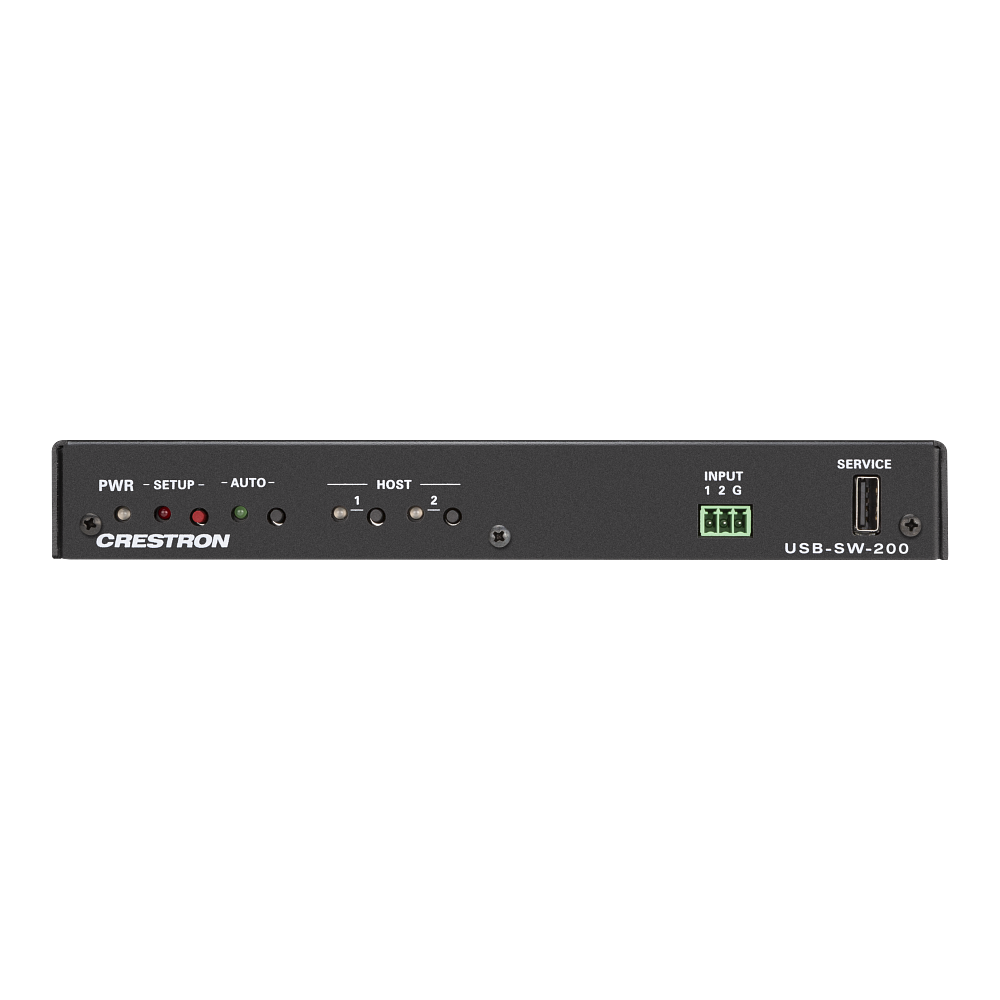

Controls	Per-host push buttons and LEDs, auto-switching mode, setup and restore button
Power	4 A at 24 VDC, 46 W (USB-SW-200) or 47 W (USB-SW-400)
Dimensions	1.12 in. H x 8.36 in. W x 5.04 in. D (28 x 212 x 128 mm), 1.4 lb (0.63 kg)
