Crestron HD-TX-4KZ-201 DM Essentials 4K60 Transmitter and 2x1 Auto-Switcher

The HD-TX-4KZ-201 is a DM Essentials 4K60 4:4:4 transmitter with two HDMI inputs and automatic switching between them, feeding a DM Essentials receiver or DMPS Essentials switcher over one twisted pair. Two inputs cover the usual table: a resident PC and a guest laptop, with whichever is live going to the display.

Use CAT5e or better (Crestron DM-CBL-8G or DM-CBL-ULTRA, sold separately). Runs reach 230 ft (70 m) at 1080p, WUXGA and 2K, and 130 ft (40 m) at UHD and 4K.

Dimensions1.20 in. (30 mm) H x 8.52 in. (216 mm) W x 5.23 in. (133 mm) D
Input Signal TypeHDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support (DVI and Dual-Mode DisplayPort interface compatible)
Output Signal TypeDM Essentials with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support
HDMIHDCP 2.3, EDID, CEC pass-through

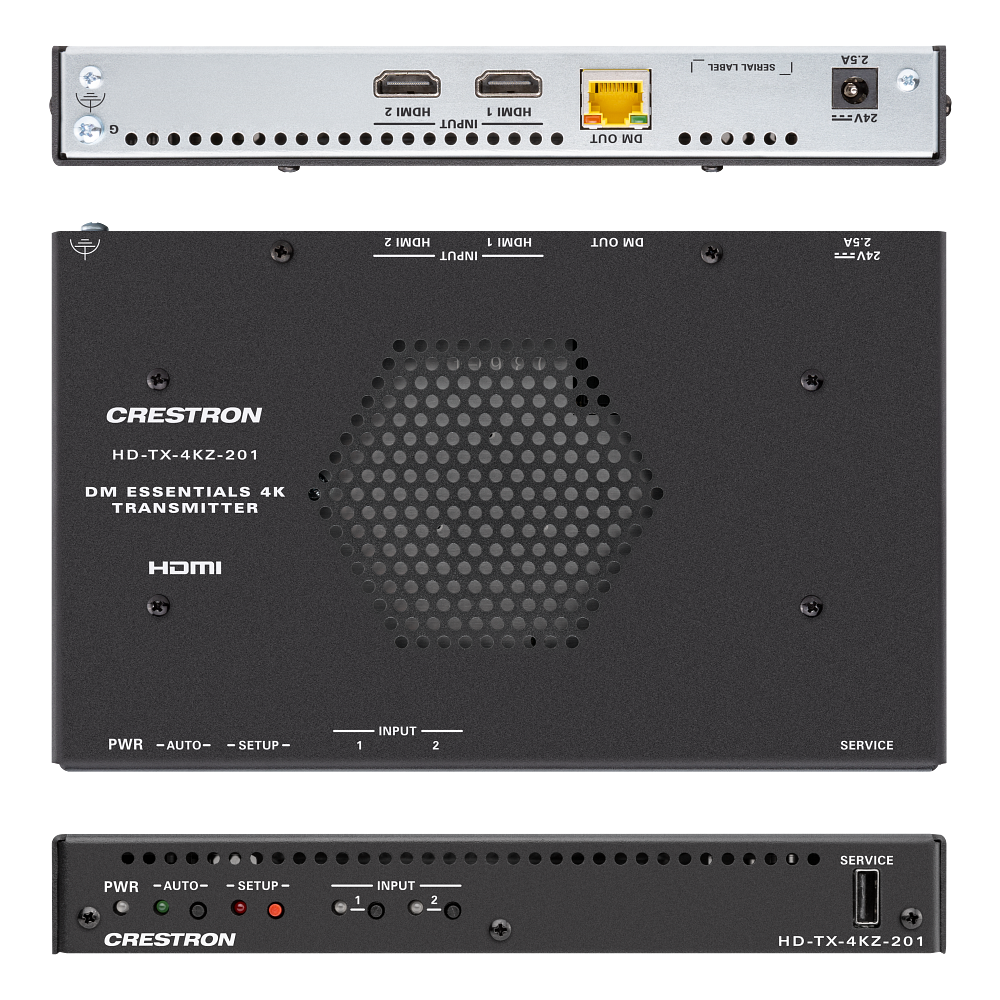

HDMI INPUT 1-2(2) HDMI Type A connectors, female; HDMI digital video/audio inputs; DVI and Dual-Mode DisplayPort interface compatible

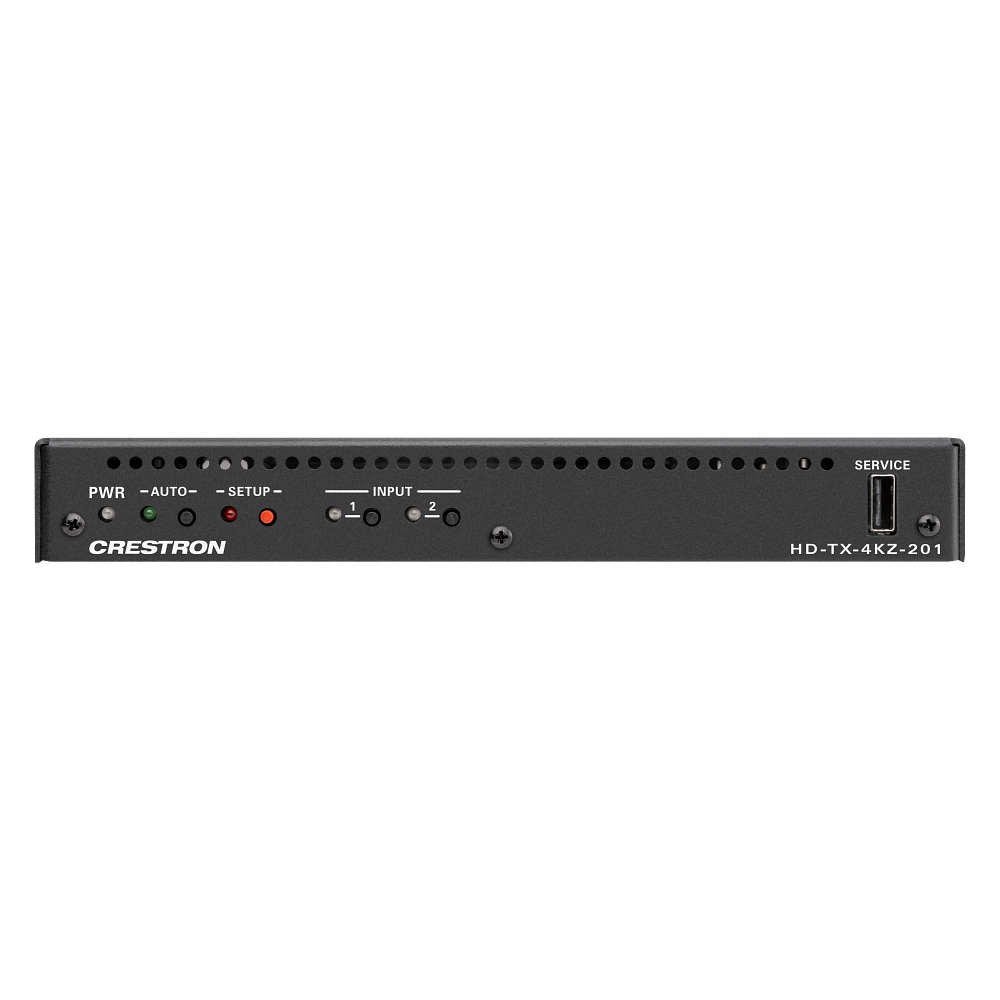

PWR(1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is...
Power Pack (Included)Input: 100-240VAC; Output: 24VDC 2.5A; Model: PW-2420RU
Temperature32 deg to 104 deg F (0 deg to 40 deg C)
