Crestron HD-TX-4KZ-401 DM Essentials 4K60 Transmitter and 4x1 Auto-Switcher

The HD-TX-4KZ-401 is a DM Essentials 4K60 4:4:4 transmitter with four HDMI inputs and automatic switching, sending the live source to a DM Essentials receiver or DMPS Essentials switcher over a single CATx run. It is the table box for a room with more sources than the 2x1 can take.

A CAT5e or better twisted pair carries the link, supporting up to 230 ft (70 m) at 1080p, WUXGA and 2K, and up to 130 ft (40 m) at UHD and 4K.

Dimensions1.20 in. (30 mm) H x 8.52 in. (216 mm) W x 5.23 in. (133 mm) D
Input Signal TypeHDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support (DVI and Dual-Mode DisplayPort interface compatible)
Output Signal TypeDM Lite with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support
HDMIHDCP 2.3, EDID, CEC pass-through

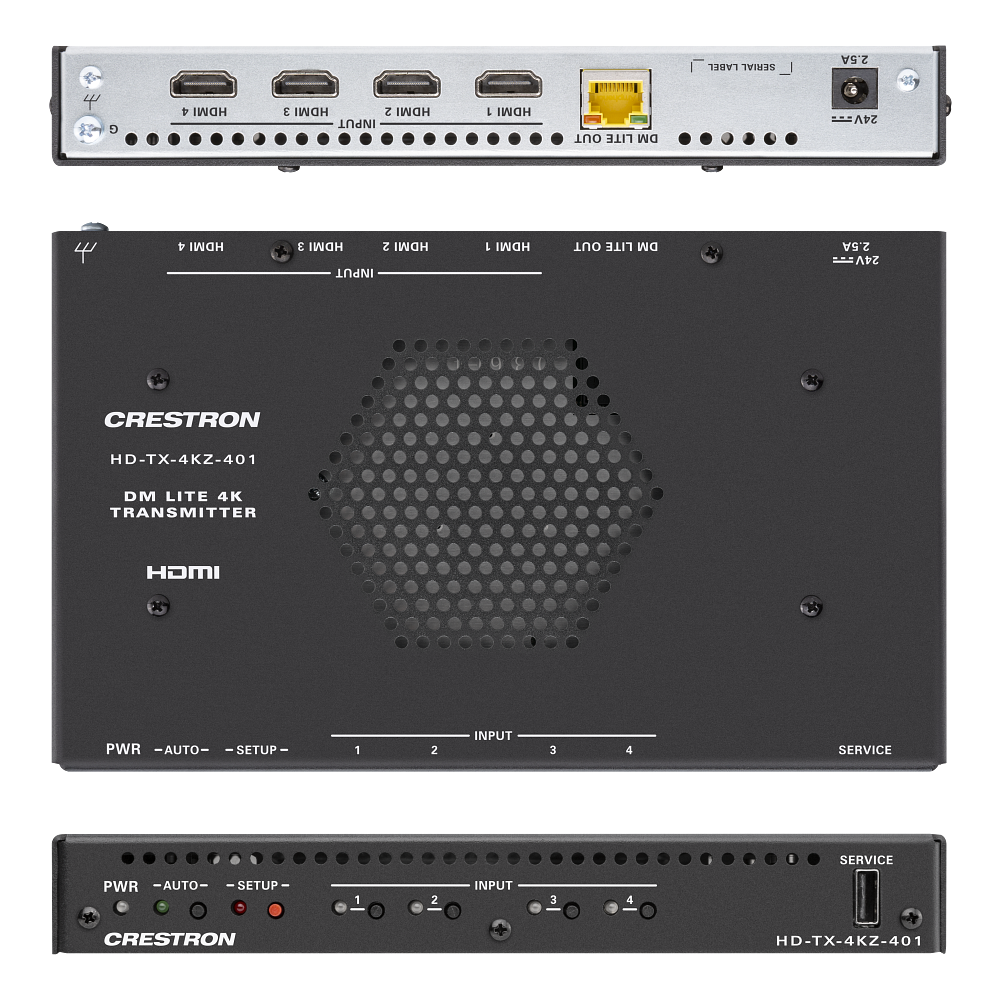

HDMI INPUT 1-4(4) HDMI Type A connectors, female; HDMI digital video/audio inputs; DVI and Dual-Mode DisplayPort interface compatible

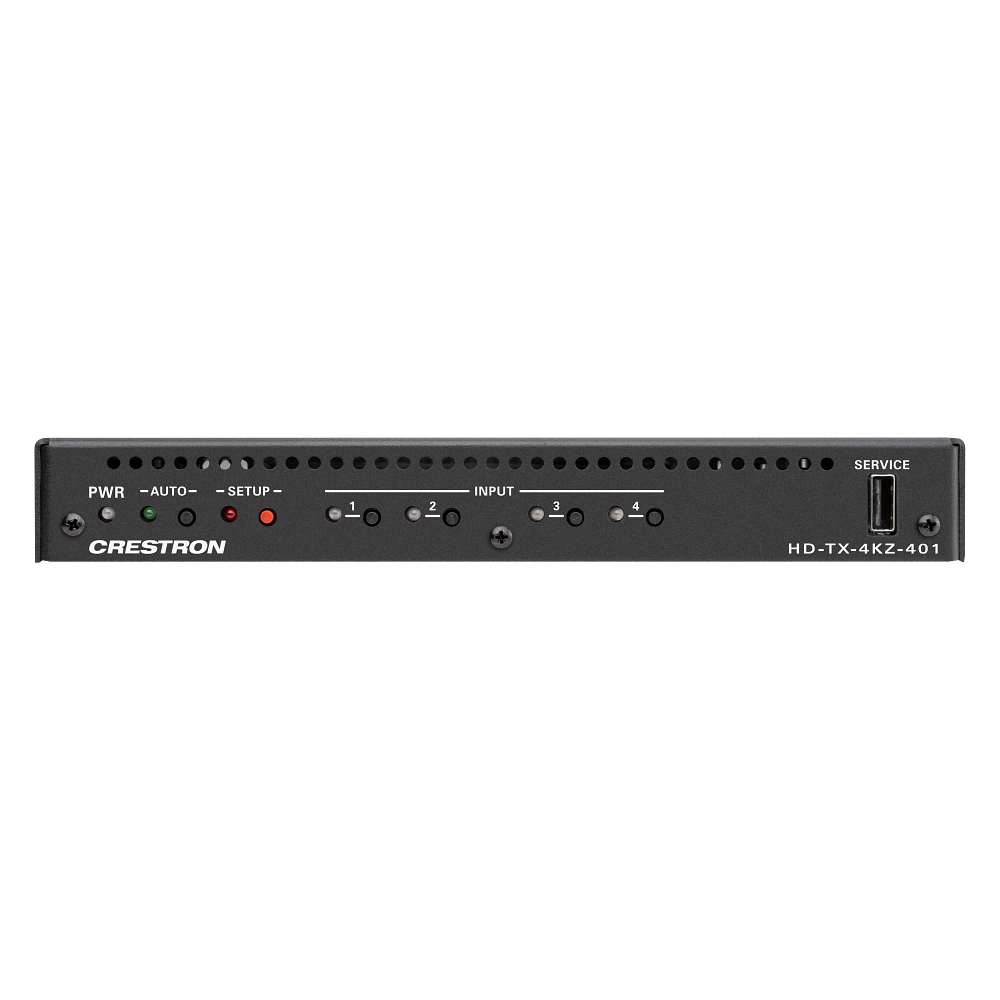

PWR(1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is...
Power Pack (Included)Input: 100-240VAC; Output: 24VDC 2.5A; Model: PW-2420RU
Temperature32 deg to 104 deg F (0 deg to 40 deg C)
