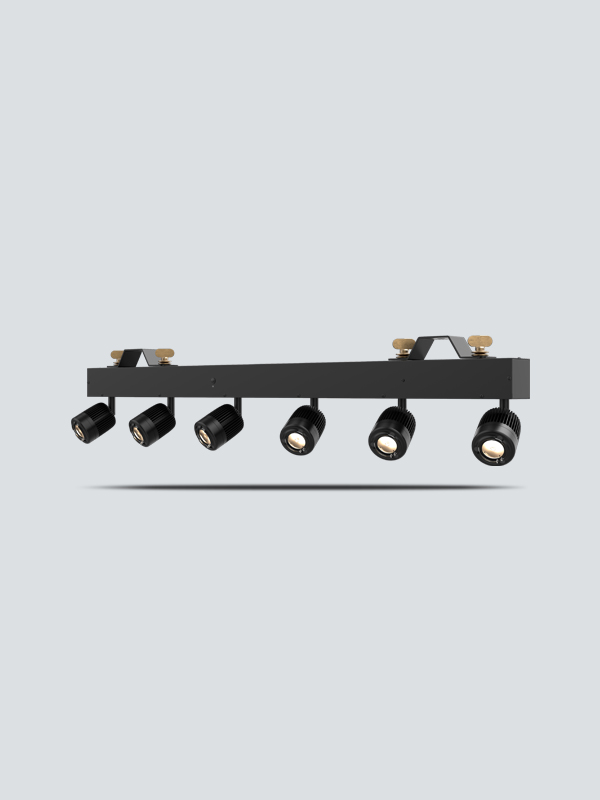

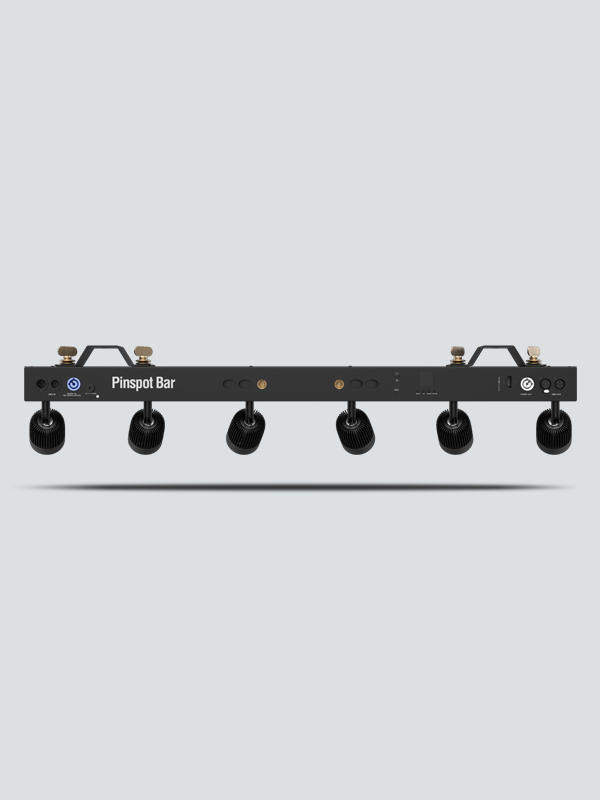

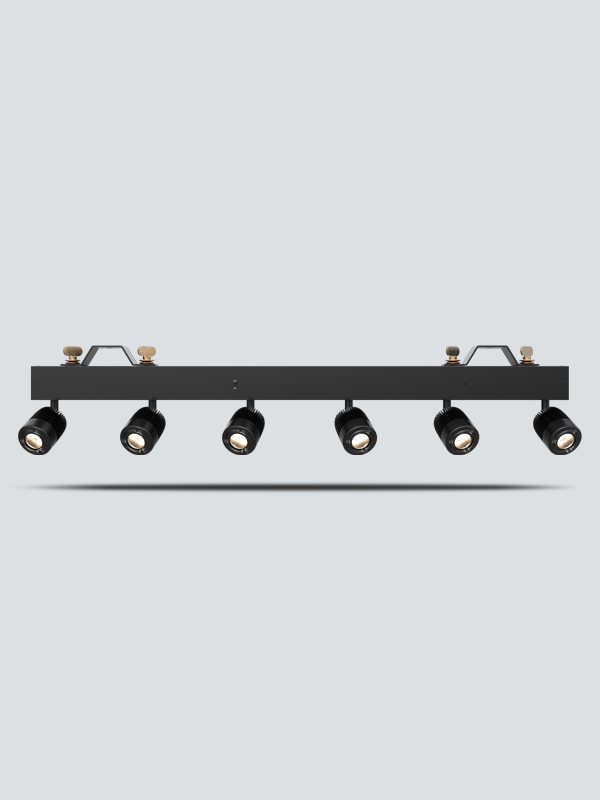

Chauvet DJ Pinspot Bar Independent 15 W Warm White Pin Spots on One Bar

Pinspot Bar puts six warm white pin spots on one bar and runs the whole thing from a single powerCON-compatible input. In a room where the lighting has to be invisible, that is the feature: one cable to hide instead of six, and power linking chains the next bar from the same point.

The emitters are 15 W warm white at a 5 degree beam and 11 degree field, producing 7,707 lux at 2 m per pod, tight and bright enough to pick out a buffet, an exhibit or a centerpiece against ambient room light. Each head controls independently. Beam diffusers and 2700 K filters are included for matching the look to incandescent practicals already in the space. Control is 1, 6 or 11 channel DMX over 3-pin and 5-pin XLR, and 8 units power link at 120 V.

Light Source6 LEDs (warm white) 15 W, (3.6 A), 50,000 hours life expectancy
Illuminance7,707 lux @ 2 m (per pod)
Beam Angle5 degrees
Field Angle11 degrees
Color Temperature4000 K
CRI81
Size39 x 4.6 x 5 in (1000 x 119 x 131 mm)
Weight9.4 lb (4.3 kg)
