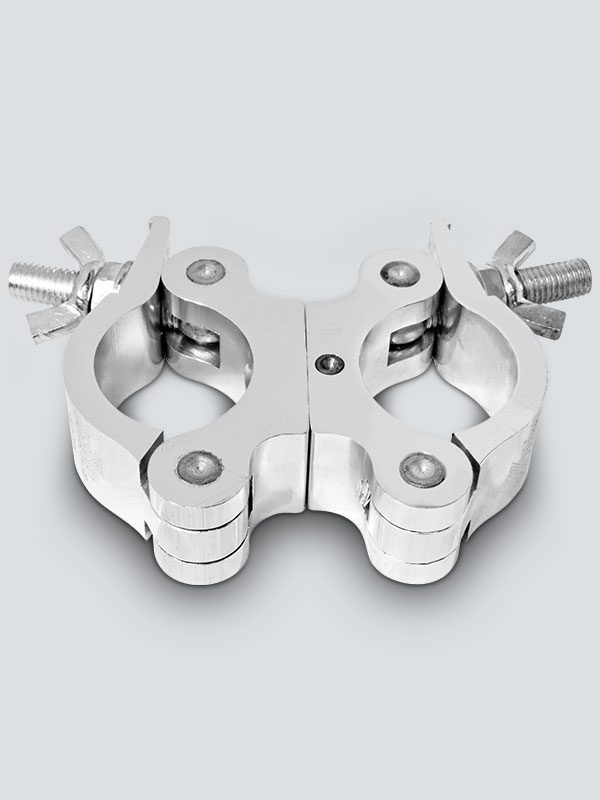

Chauvet DJ CLP-25N Narrow Swiveling Truss Clamp
CLP-25N is a narrow truss clamp designed to fit between cross braces where a standard-width clamp will not sit. It swivels at its center so a fixture can be aimed independently of the clamp's orientation on the truss, useful for complex rigging angles.
The clamp wraps completely around the truss tube for security and is built from heavy-duty material rated for repeated use on the road.
| Type | Narrow swiveling truss clamp |
|---|---|
| Weight | 1.4 lb (0.6 kg) |
| Dimensions | 6.8 x 4.6 x 1.2 in (171 x 116 x 30 mm) |
| Load Capacity (vertical) | 129 lb (59 kg) |
| Fits | 2 in (50 mm) truss |
| Rotation | Swivels at center |
