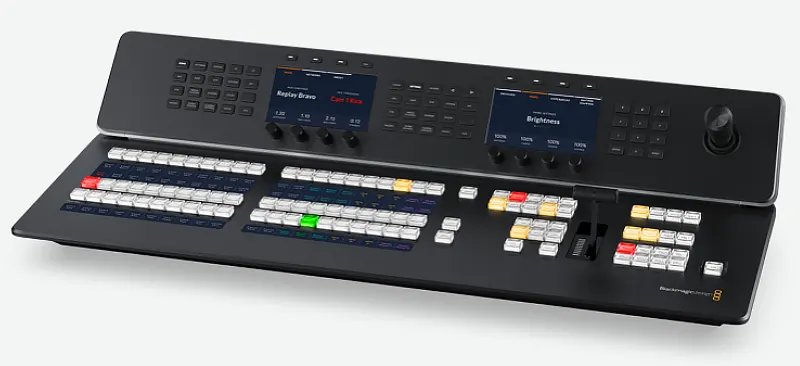

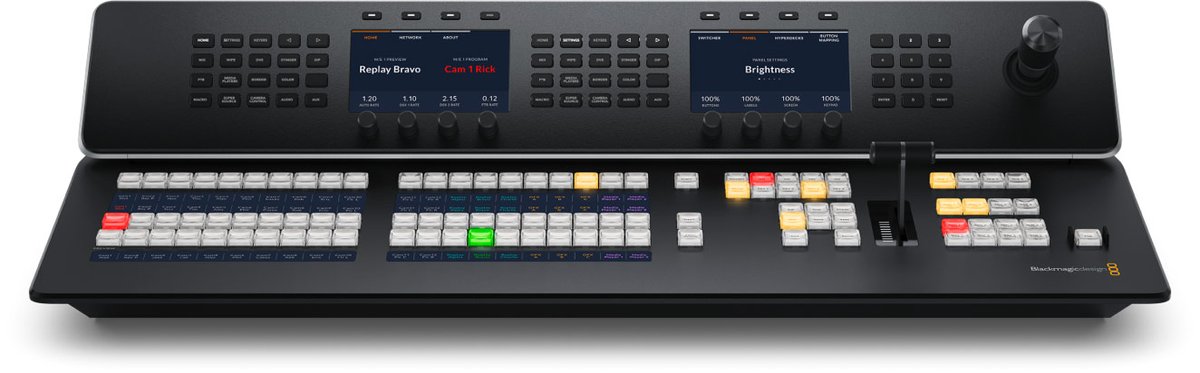

Blackmagic ATEM 1 M/E Advanced Panel 20

The ATEM 1 M/E Advanced Panel 20 is a hardware control surface for driving an ATEM switcher by hand rather than by mouse. It has 20 input buttons, each with its own LCD for custom labeling, so an operator can see and select sources at a glance. Two system control LCDs handle menus and settings, and dedicated buttons reach 4 upstream keyers, 4 downstream keyers and 4 M/E rows for fast, repeatable live production.

Real-time control comes from a single 3-axis joystick, which can steer PTZ cameras or effects, and a large weighted T-bar fader for transitions, wipes and fades. The panel connects to the switcher over Ethernet. It carries Blackmagic part number BMD-SWPANELADV1ME20.
