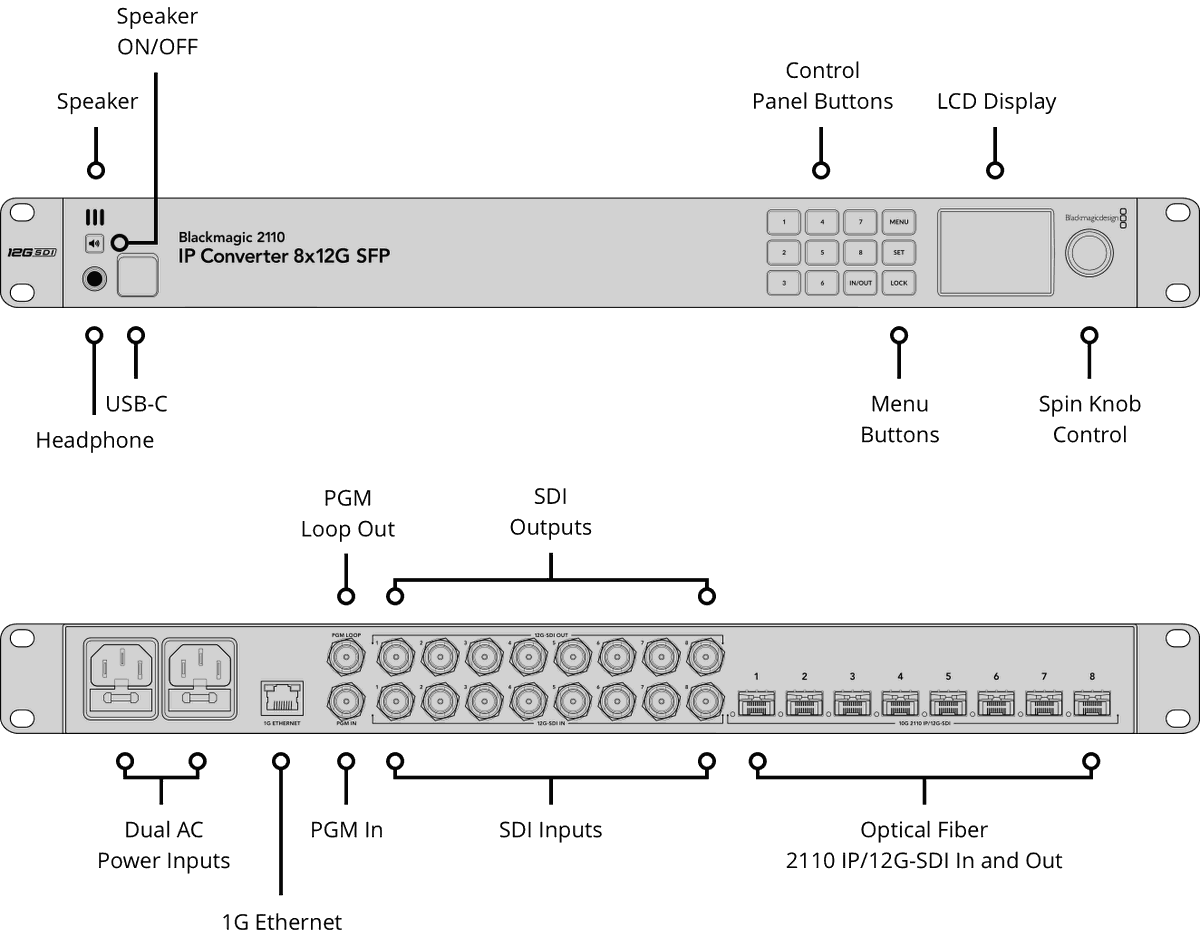

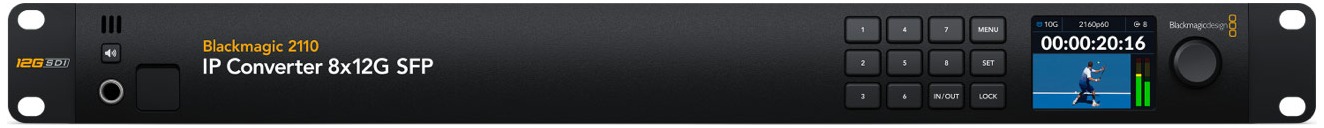

Blackmagic 2110 IP Converter 8x12G SFP

The Blackmagic 2110 IP Converter 8x12G SFP is a 1RU gateway that brings existing 12G-SDI broadcast gear into a SMPTE ST-2110 IP video network. It packs 8 independent bidirectional converters, each moving signal between 12G-SDI and ST-2110 IP in either direction, and it works with SD, HD and Ultra HD standards all the way to 2160p60. Because the IP side uses SFP module cages, you choose optical fiber modules for long cable runs or copper modules for short hops.

Every converter carries 16 channels of embedded audio across both the SDI and the ST-2110 IP paths, and a front panel LCD control panel handles setup and monitoring without a computer. The chassis runs on dual internal 100-240V AC supplies for redundancy. G&G ships this as Blackmagic part number BMD-CONVNVIPC8/12GSFP.
