Blackmagic ATEM 1 M/E Constellation 4K

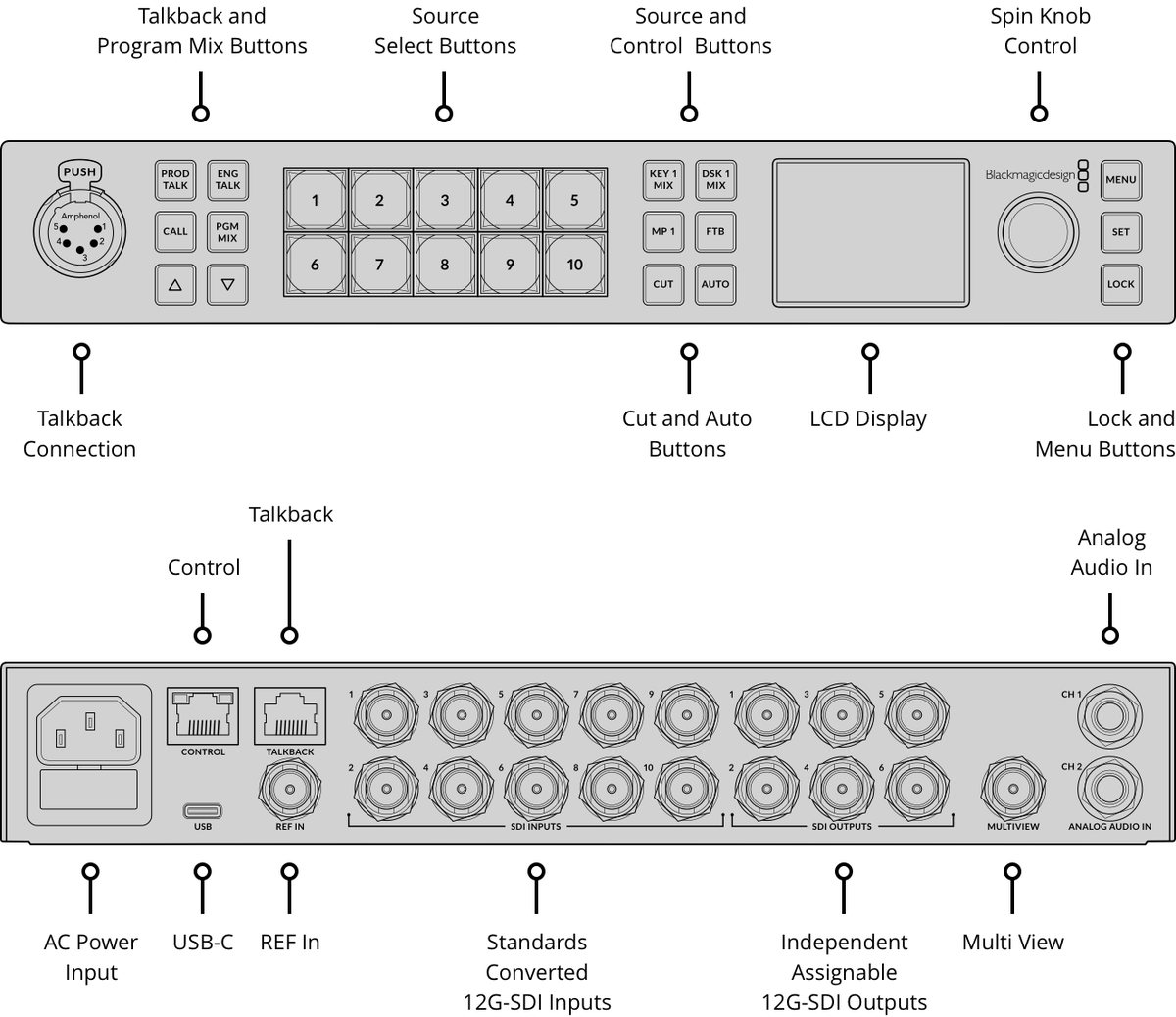

The ATEM 1 M/E Constellation 4K is a full 1 M/E Ultra HD live production switcher built for busy multi-camera shows. It carries 10 12G-SDI inputs, each with its own frame rate and format converter, so cameras and playback sources running different standards all lock into the show without external conversion. On the output side there are 6 12G-SDI aux buses plus a dedicated 12G-SDI multiview, and the production toolkit runs deep: DVE, four ATEM Advanced Keyers, media players and USB webcam output.

Everything folds into a compact chassis that fits two-thirds of a rack unit in width and one rack unit high, so it slots easily into an OB truck or a fixed rack. A 28-channel Fairlight audio mixer with EQ and dynamics keeps the mix inside the switcher, and built-in talkback lets the director stay in the ears of the camera crew. It carries Blackmagic part number BMD-SWATEMSCN2/2ME1/4K.
