Blackmagic 2110 IP Converter 4x12G PWR

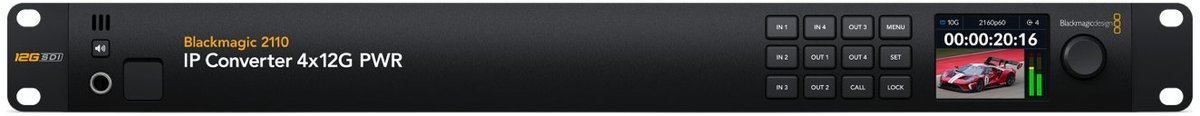

The 2110 IP Converter 4x12G PWR bridges 12G-SDI broadcast gear into a SMPTE-2110 IP video network. Four independent bidirectional converters move 12G-SDI to and from 2110 IP over RJ-45 10G Ethernet, so cameras, switchers, and monitors that speak SDI drop straight into an IP infrastructure. Everything supports SD, HD, and Ultra HD standards up to 2160p60, and the 1RU chassis carries a front control panel with a color display for setup and status without a laptop.

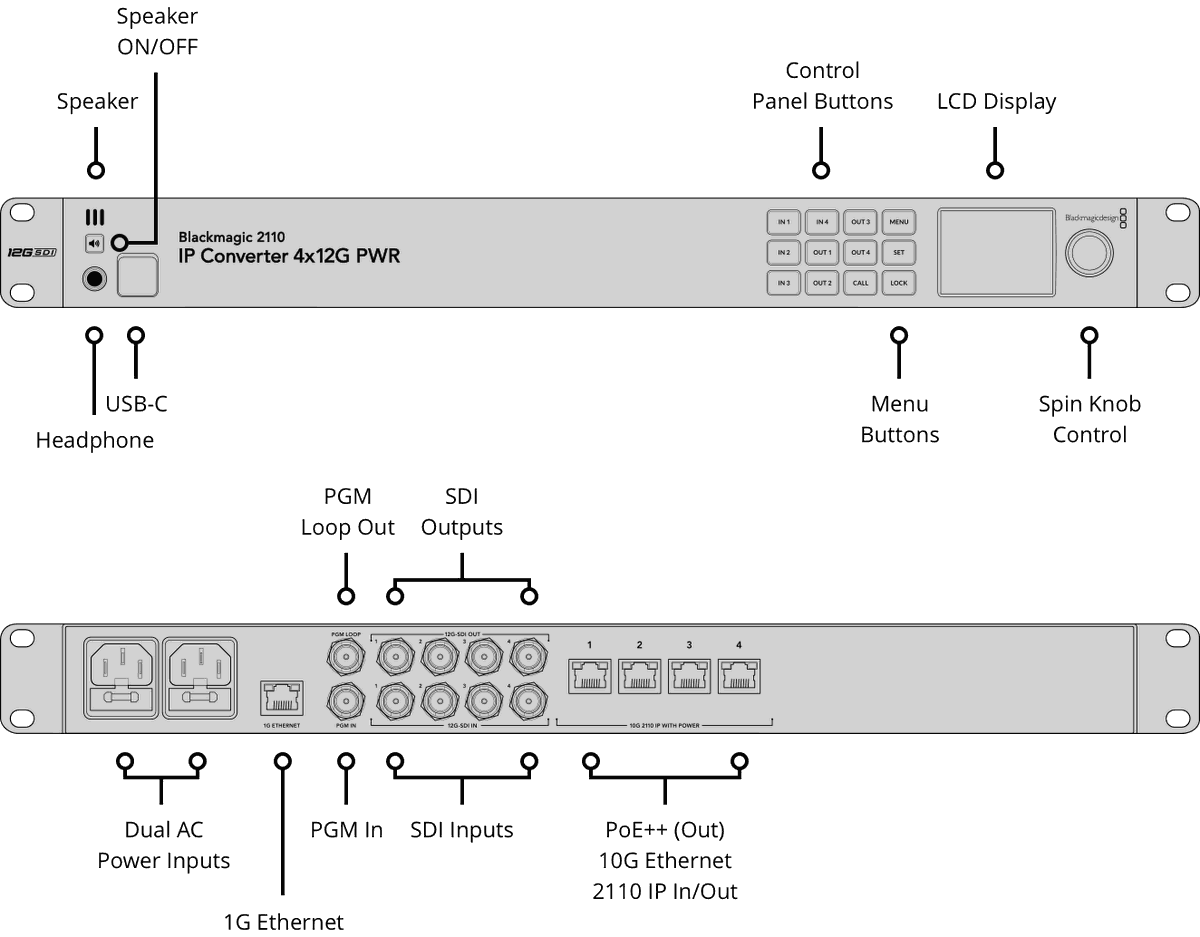

The four 10G RJ-45 ports are PoE++, so they can also power connected Blackmagic cameras and converters over the same cable. A separate 1G RJ-45 and a USB-C port handle configuration and firmware updates. Conversion between 12G-SDI rates and 10G 2110 IP uses Blackmagic's IP10 codec. Blackmagic part number BMD-CONVNVIPB4/12GPWR.
