Blackmagic Ultimatte Smart Remote 4 G2

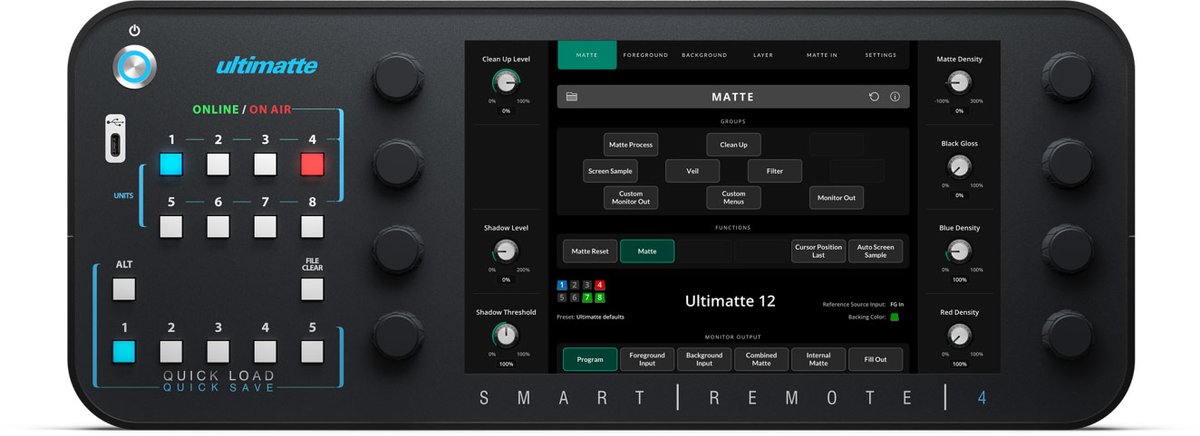

The Ultimatte Smart Remote 4 G2 gives an operator hands-on control of up to 8 Ultimatte 12 units at once over a standard Ethernet connection, so a keying operator doesn't have to touch a computer to adjust a shot. Its 10.1-inch touchscreen shows live status and settings, while 8 illuminated unit ID buttons let the operator jump between cameras instantly, with LEDs showing which units are online and which are currently on air.

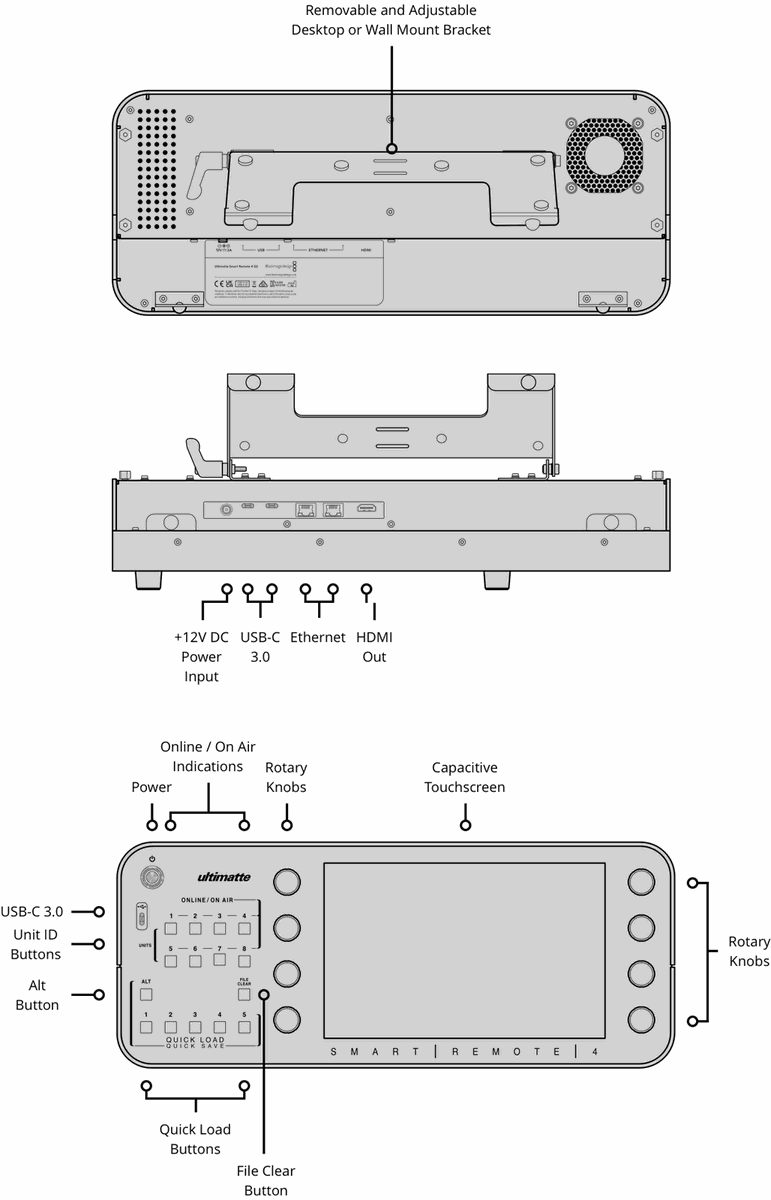

Eight rotary knobs give tactile control over spill suppression, edge treatment, and other keying parameters without hunting through touchscreen menus, and dedicated quick load/save buttons recall presets between shots. Connectivity includes 2 Gigabit Ethernet ports for linking to the Ultimatte units and a network, 3 USB-C 3.0 ports (2 rear, 1 front) for peripherals and power delivery, and an HDMI output for feeding a secondary monitor at up to 1080p60.
| Controls | Up to 8 Ultimatte 12 units simultaneously via Ethernet |
|---|---|
| Display | 10.1" touchscreen, 1280 x 800 |
| Physical Controls | 8 rotary knobs, 8 illuminated unit ID buttons, quick load/save/clear buttons |
| Ethernet | 2x 10/100/1000 Mbps |
| USB | 3x USB-C 3.0 (2 rear, 1 front); supports power delivery |
| Video Output | 1x HDMI, up to 1080p60 |
| Power | 24W max, universal 36W external supply included |
| Part Number | BMD-ULTMSMTREM4G2 |
