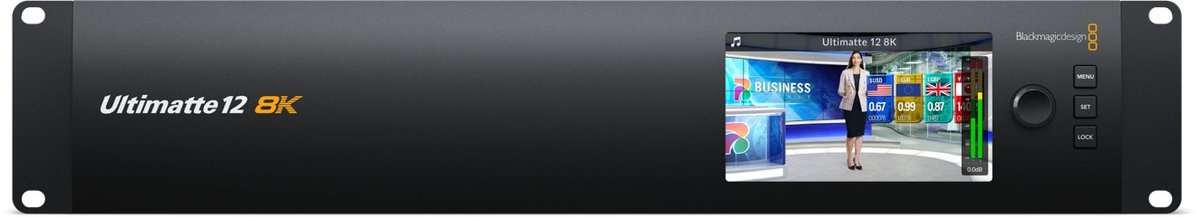

Blackmagic Ultimatte 12 8K

Ultimatte 12 8K is the flagship of the Ultimatte line, a real time compositing processor built to key 8K live action against virtual sets and broadcast graphics. It runs the same keying engine that handles hair detail, motion blur, and edge color separation, scaled up to full 8K for large format virtual production and high end broadcast. The key is generated live, so the finished composite is ready to air immediately.

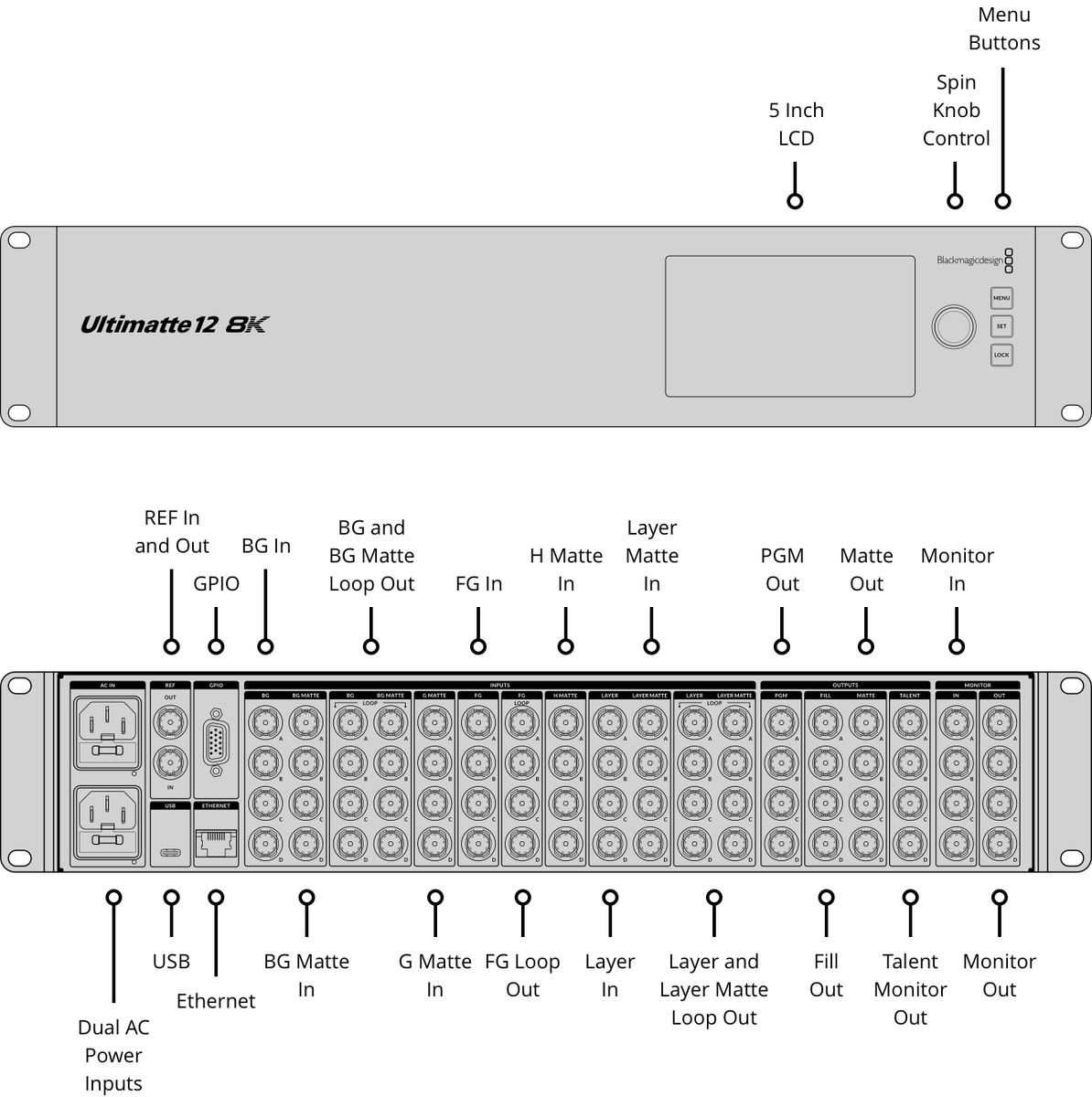

Quad Link 12G-SDI handles every format up to 4320p60 8K, with 32 SDI inputs, 20 SDI outputs, and 20 reclocked loop outputs. A 10Gb/s Ethernet port carries SMPTE 2110 IP video, device control, and Media Pool stills. The 2 rack unit chassis includes dual redundant power supplies and draws 218W. Blackmagic part number BMD-ULTMKEY12/D/8K.
