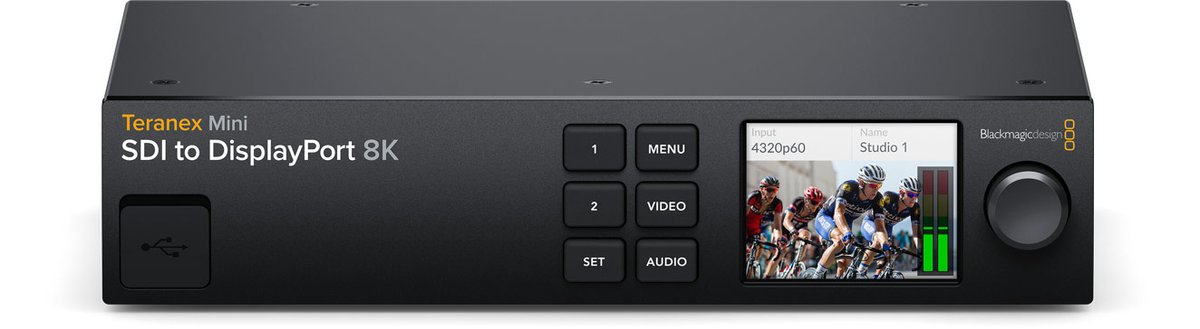

Blackmagic Teranex Mini SDI to DisplayPort 8K HDR Converter

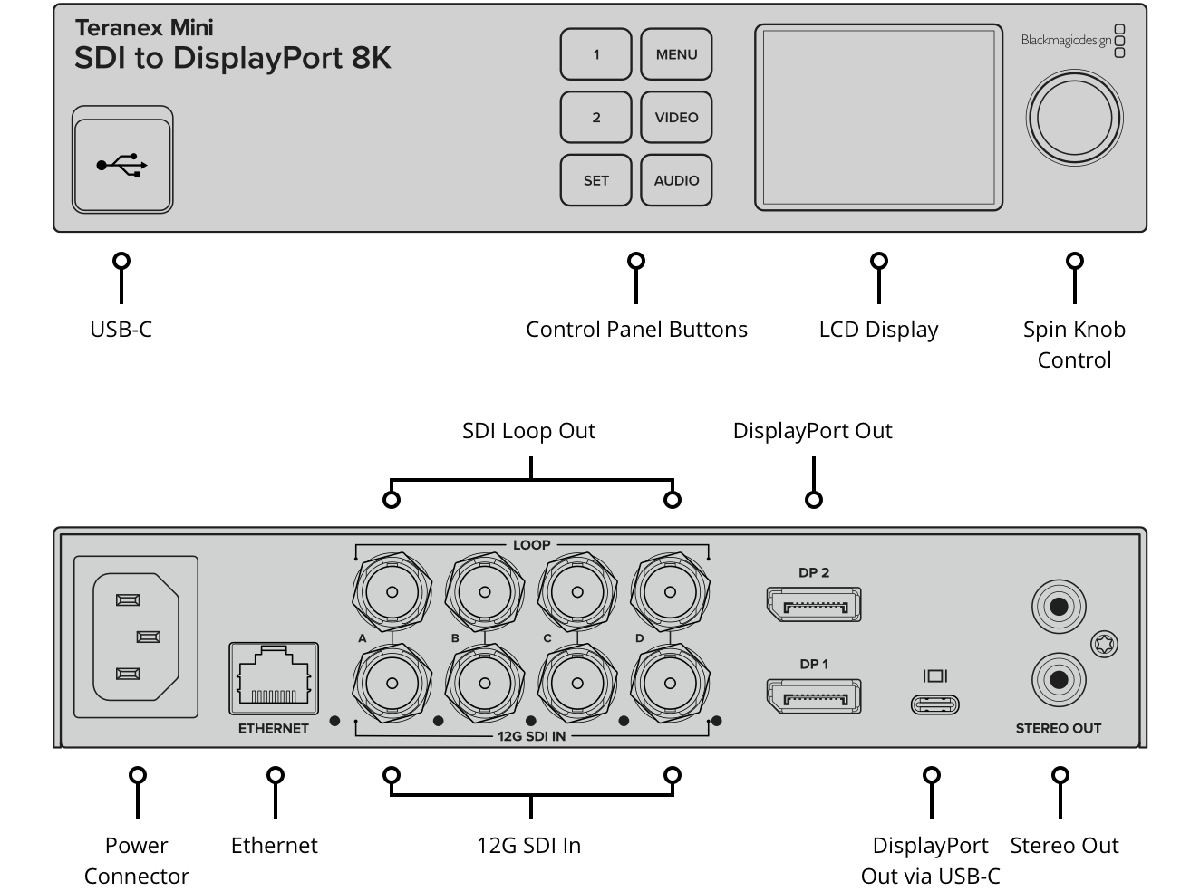

The Teranex Mini SDI to DisplayPort 8K HDR is an 8K monitoring converter that takes SDI sources and drives DisplayPort displays in all HD, Ultra HD and 8K formats up to 4320p60. Four 12G-SDI inputs auto switch across HD, 2K, 4K and 8K, with dual and quad link 12G-SDI used for 8K. Two full size DisplayPort connectors output 4K on one connector or uncompressed 8K across both, and a USB-C DisplayPort connector supports certified passive DisplayPort over USB-C cables.

It includes a built in down converter, HDR output formats, 33 point 10-bit RGB LUTs and monitor calibration for compatible displays. Built in waveform, parade, vector and histogram scopes give on-screen signal analysis, and analog audio is available on RCA. Four 12G-SDI loop outputs pass the source on to other devices. Active generic USB-C cables and active Thunderbolt cables are not compatible with the USB-C DisplayPort output.
