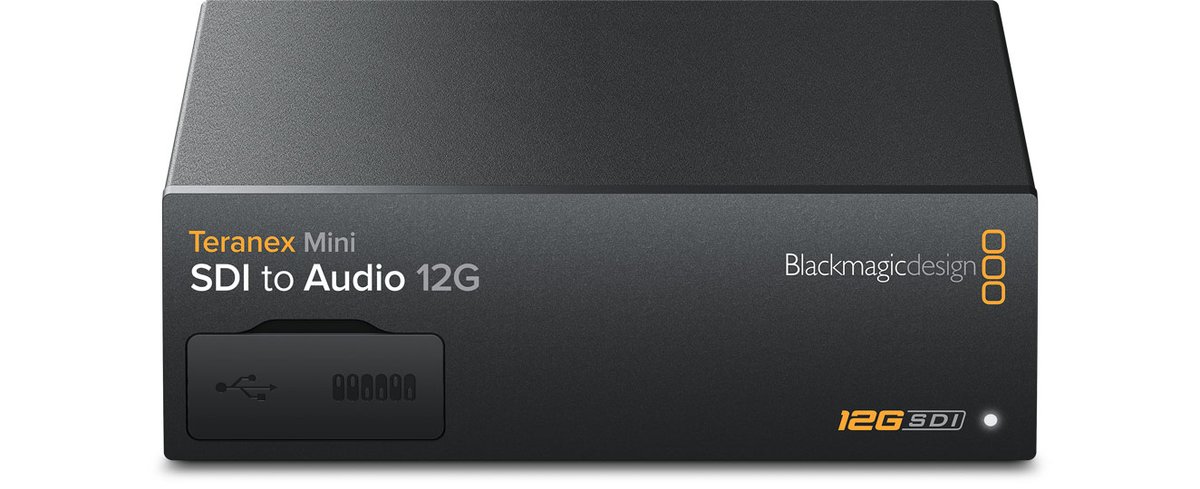

Blackmagic Teranex SDI to Audio 12G Converter

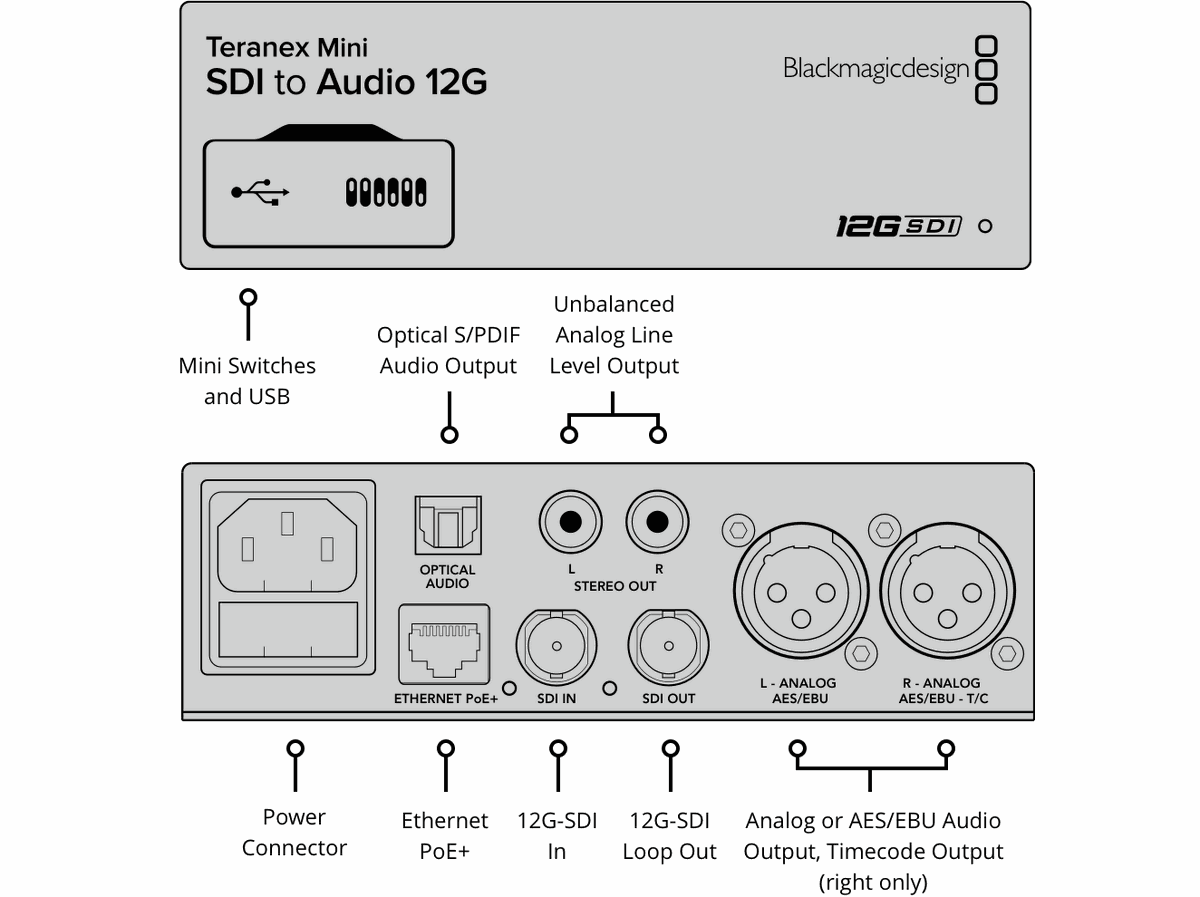

The Teranex Mini SDI to Audio 12G de-embeds audio from any SD, HD or Ultra HD SDI connection and sends it out as analog or digital. It delivers two channels of analog audio to balanced XLR, optical or HiFi RCA, or up to four channels of AES/EBU digital, so SDI program audio can reach a mixer, a broadcast deck, powered monitors or a consumer device.

It accepts a 12G-SDI input with automatic SD/HD/2K/4K switching and passes the signal on through a 12G-SDI loop. The right XLR can be configured to output timecode. The unit uses the standard Teranex Mini chassis and works with the optional Rack Shelf and Smart Panel.
