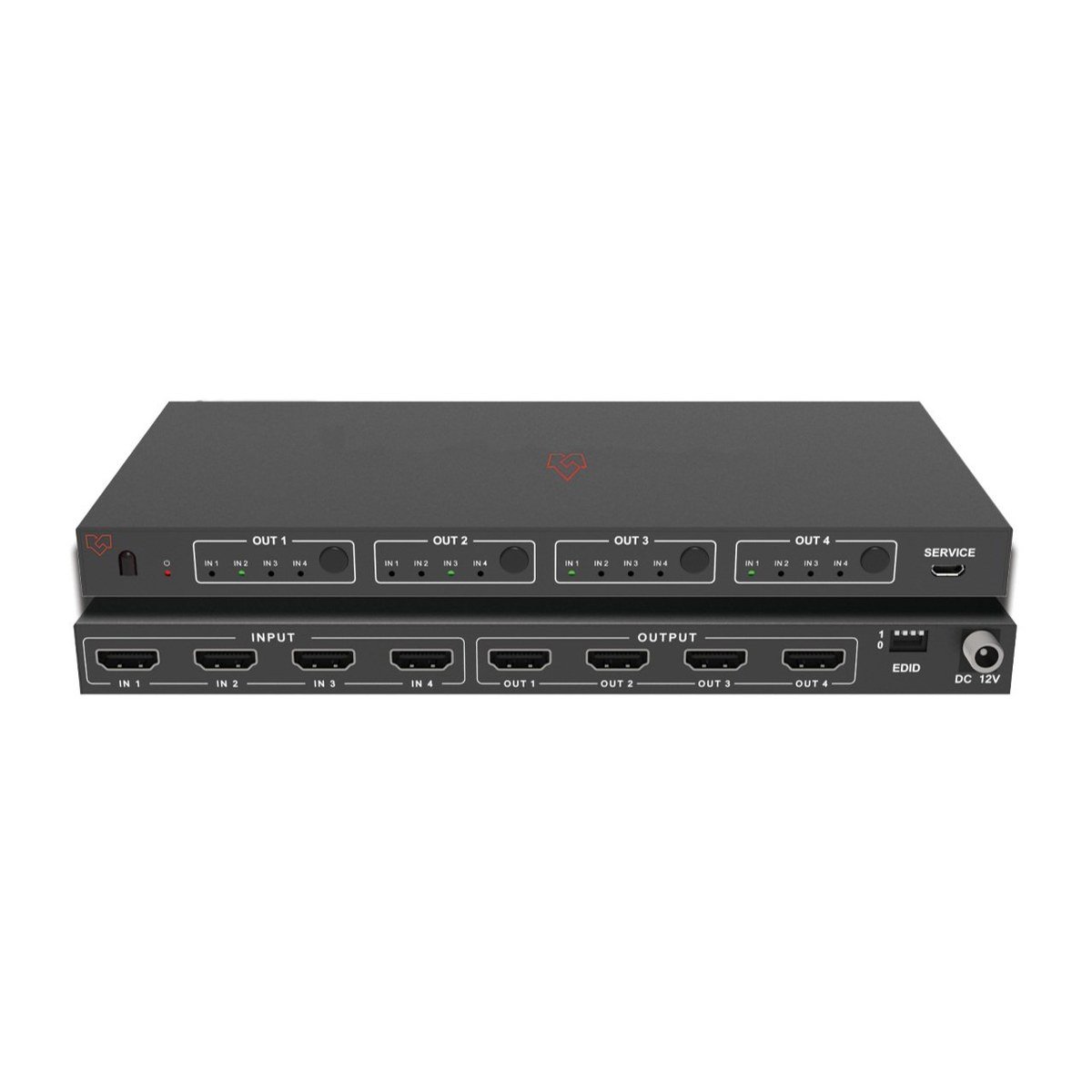

VigilLink VLMX-0404 4x4 HDMI 2.0 Matrix Switcher with Downscaling

The VLMX-0404 carries video up to 4K2K@60Hz YCbCr 4:4:4 with multichannel digital audio from four sources to four HDMI outputs. Any source can be assigned to any screen, showing the same content everywhere or four different feeds.

Each output has its own downscale function, so a 1080p display can sit alongside UHD screens on the same matrix. The unit offers both distribution and switching modes, is HDCP 2.2 compliant, and passes HDR, HDR10, HDR10+, and Dolby Vision along with LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio.

Video Bandwidth	594MHz / 18Gbps
Video Resolution	480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Inputs	4xHDMI Type A [19-pin female] 1xIR Receiver Window 1xMicro USB [RJ45]
Outputs	4xHDMI Type A [19-pin female]
HDMI Audio Formats	LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Color Space	RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
Color Depth	8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0)
Housing	Metal Enclosure
