VigilLink VLSW-21H21 2x1 HDMI 2.1 Switcher, 8K 48Gbps

The VLSW-21H21 switches either of two HDMI sources to a single display, at video resolutions up to 8K@60Hz 4:2:0 and 48Gbps of bandwidth. It suits outdoor displays, video conferencing, security monitoring, and home theatre where two sources share one screen.

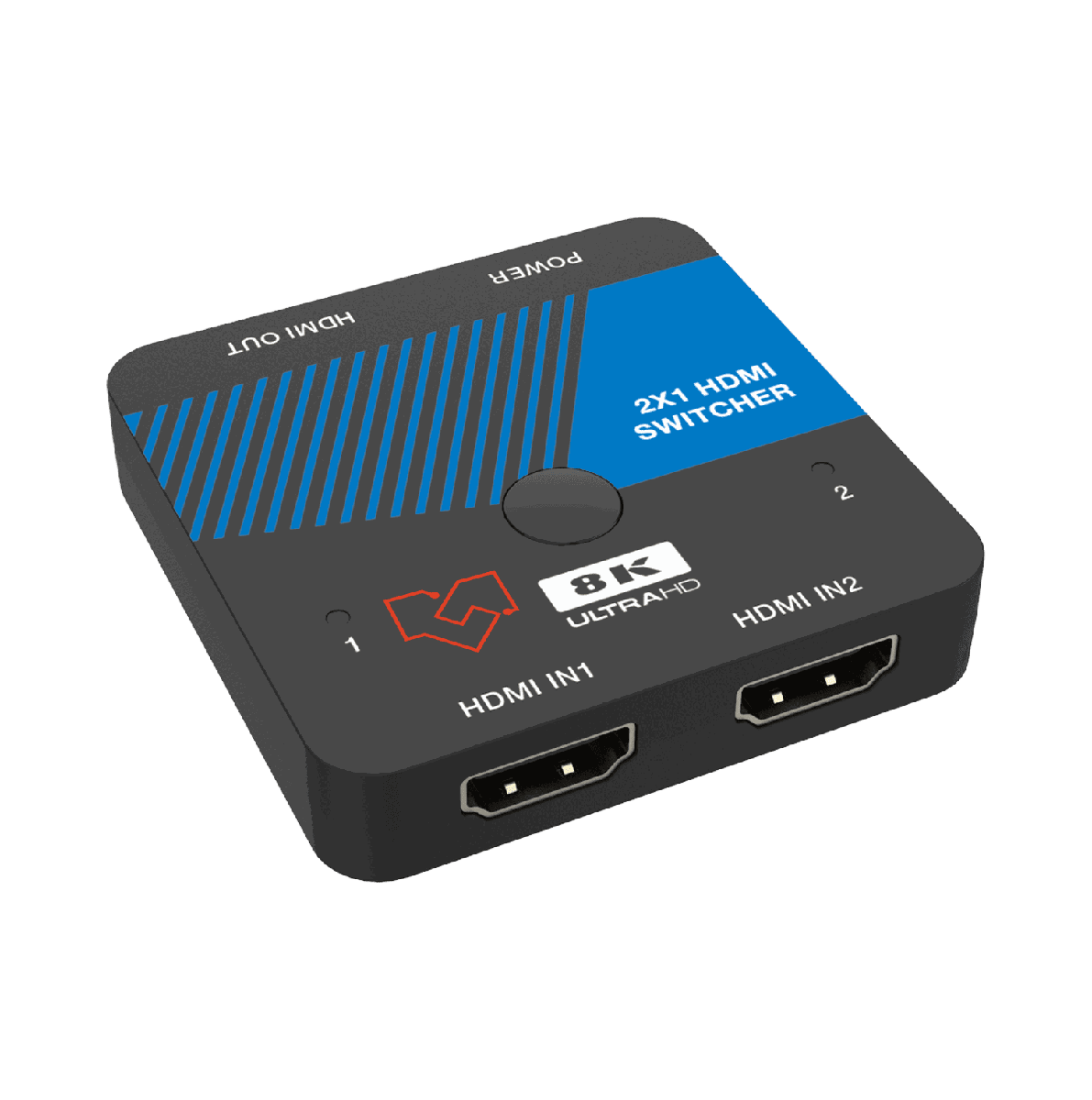

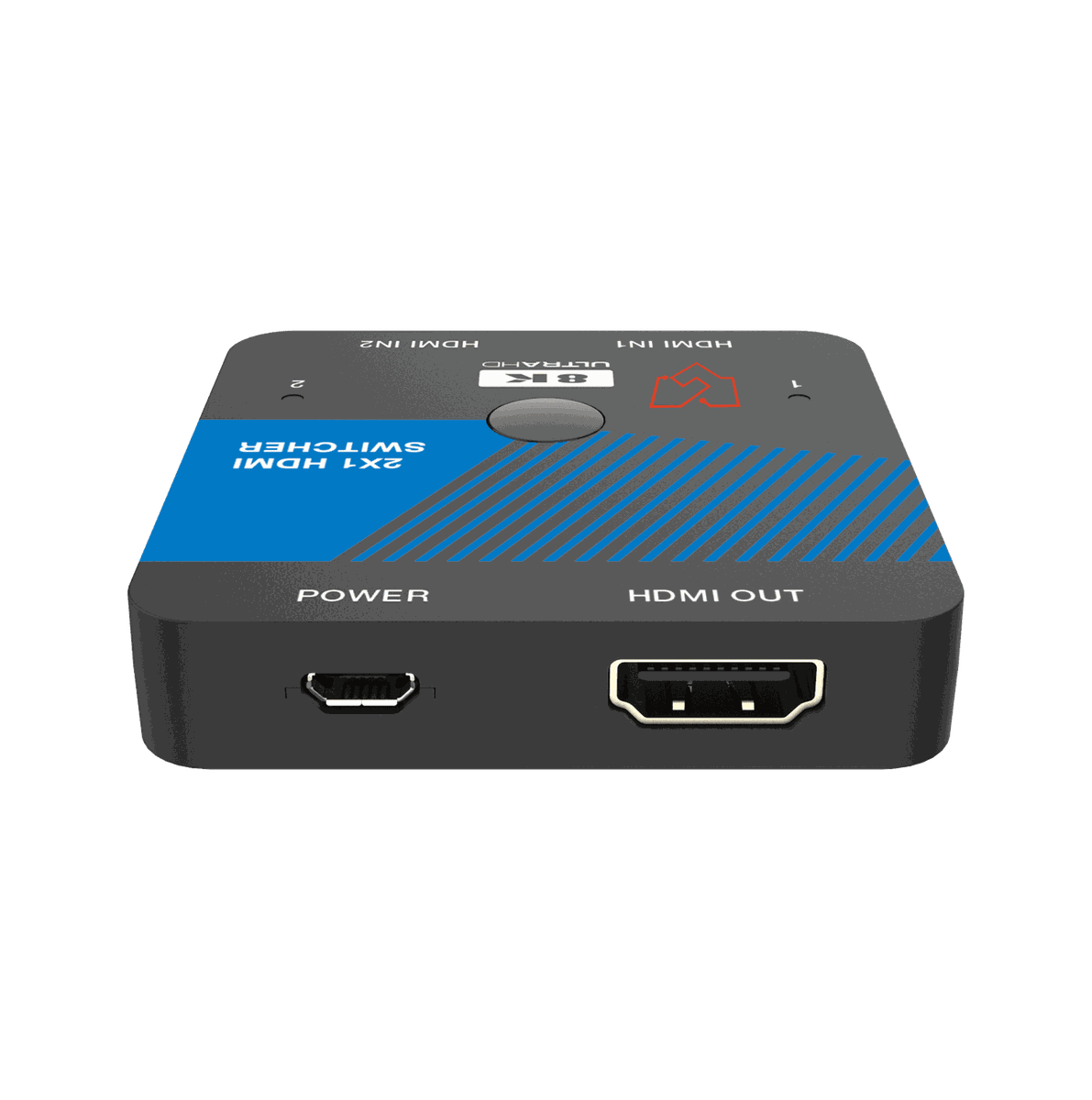

Connect both sources to HDMI IN1 and IN2 and the display or projector to HDMI OUT. The switcher is HDMI 2.1 and HDCP 2.3 compliant, supporting 8K@60Hz 4:2:0 10-bit and 8K@30Hz, with VRR, FVA, and ALLM for variable-frame sources.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps
Video Resolution	Up to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
Output	1xHDMI OUT [Type A, 19-pin female]
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Color Space	RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth	8/10/12-bit
