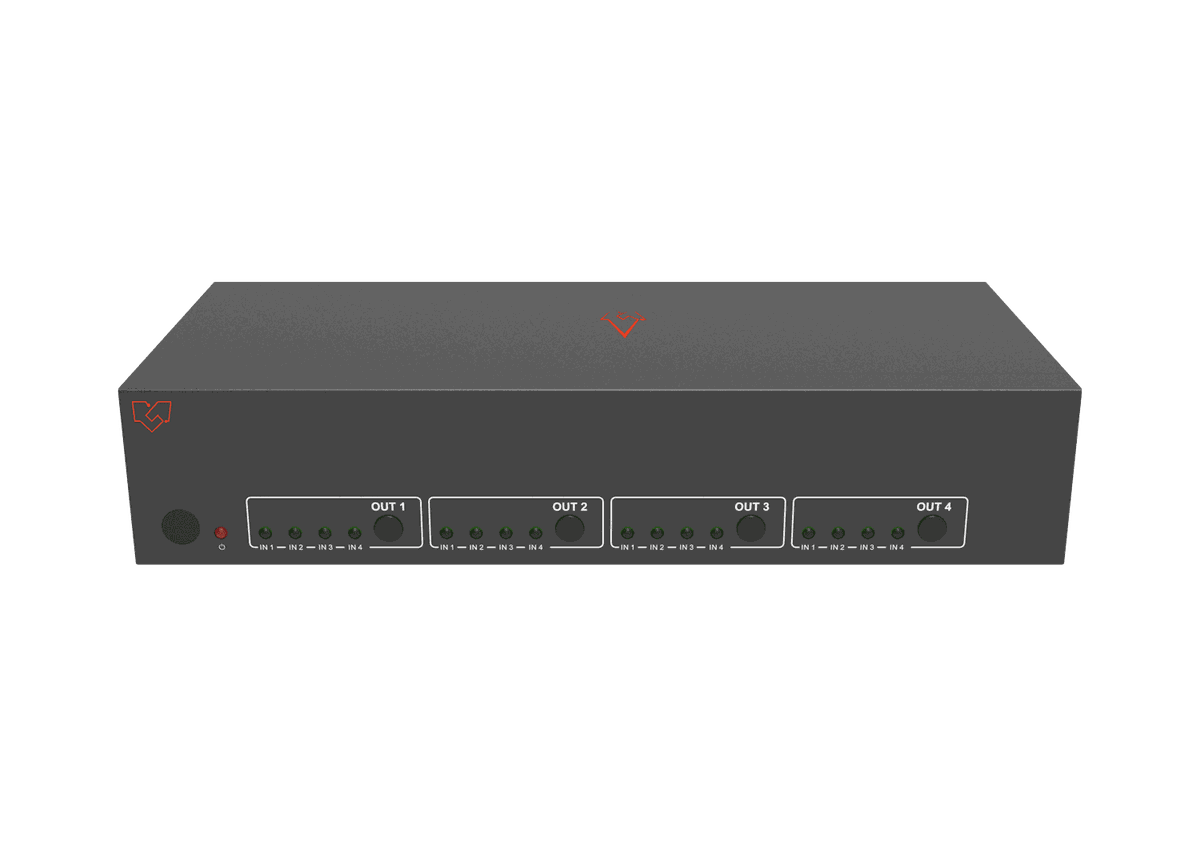

VigilLink VLMX-0404E 4x4 HDMI 2.0 Matrix Switcher with Scaling and Display Control

The VLMX-0404E switches any of four HDMI 2.0 sources to four HDMI 2.0 displays, every input and output at up to 4K60 4:4:4 under HDCP 2.2. Each output scales independently, so a 1080p display can be driven from the same matrix as a UHD one.

De-embedded audio is available as analog L/R and coaxial. With ARC enabled, display audio returns to the coaxial output. Advanced EDID management and 18Gbps of bandwidth complete a matrix built for mixed-generation display estates.

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions, including 1920 x 1200
Input Ports	4xHDMI Type A [19-pin female]
HDMI IN / OUT	10ft / 3M
Output Ports	4xHDMI Type A [19-pin female] 4xL/R audio out [3.5mm Stereo Mini-jack] 4xCOAX audio out [RCA]
HDMI Audio Formats (Pass-through)	PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
