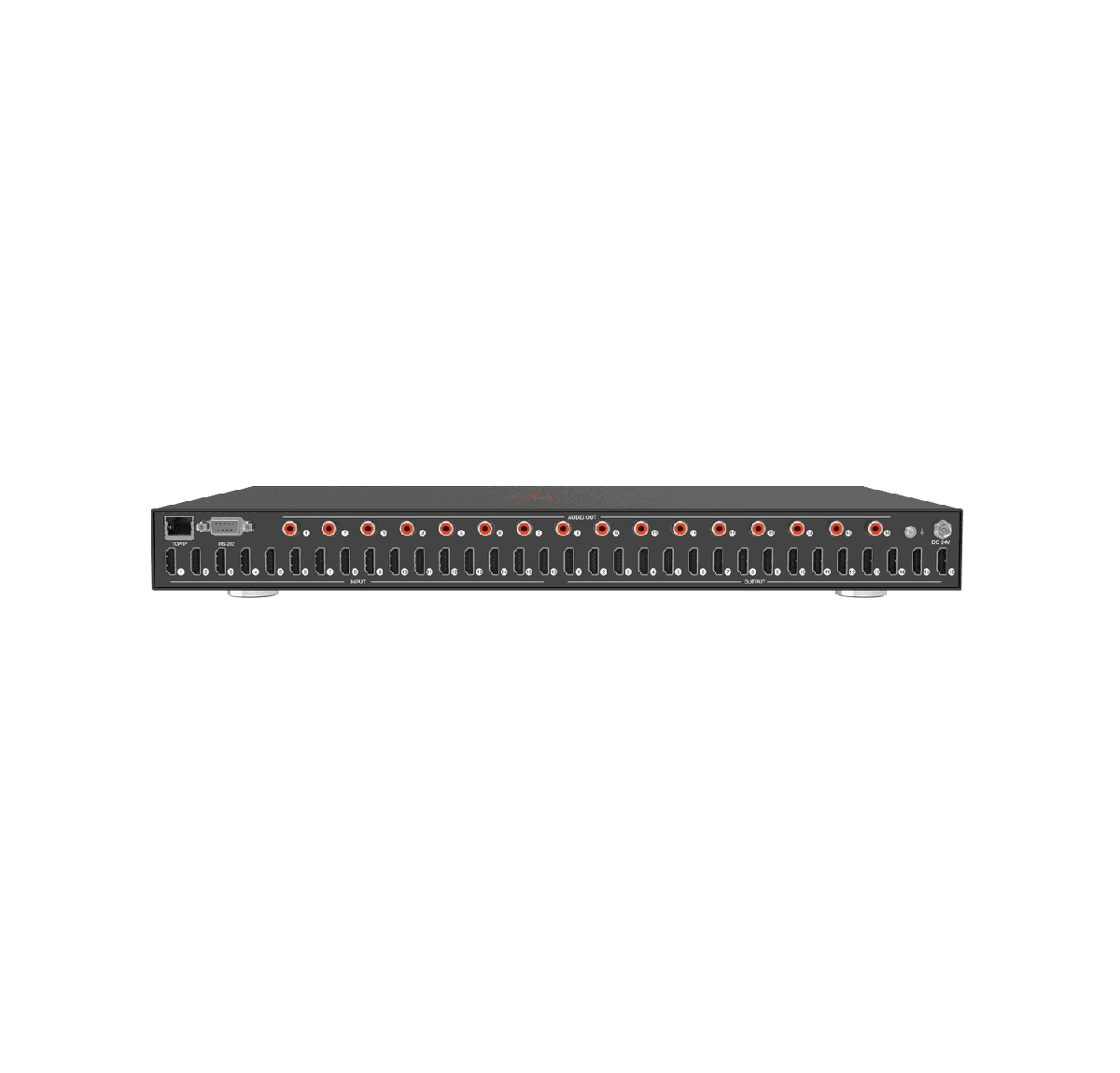

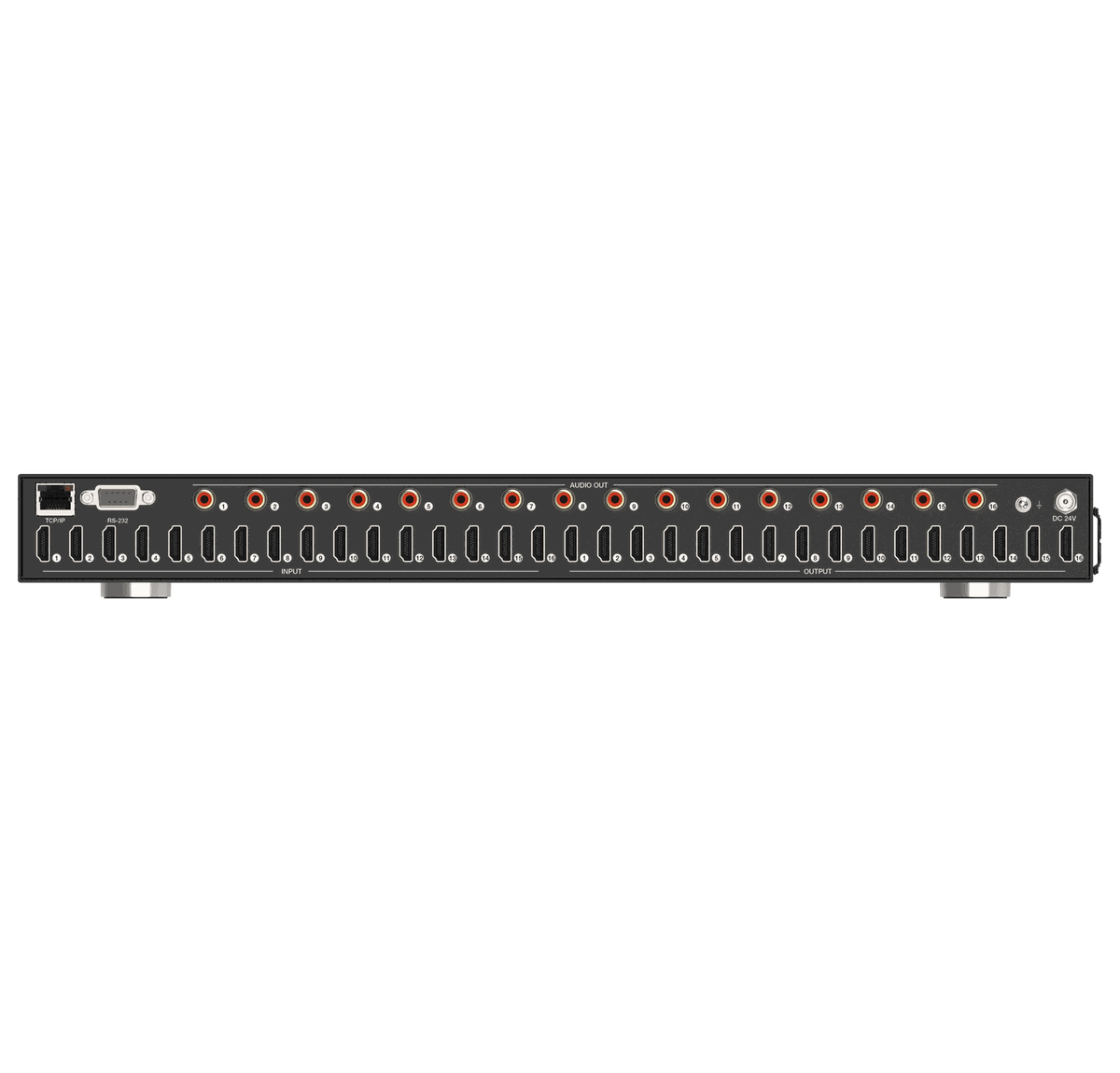

VigilLink VLMX-1616E 16x16 HDMI 2.0 Matrix Switcher with Downscaling

The VLMX-1616E moves video up to 4K@60Hz 4:4:4 and multichannel digital audio from sixteen HDMI sources to sixteen HDMI displays. Every output has its own 4K-to-1080p downscaler, which is what makes a mixed estate of new and old screens workable from one frame.

Audio de-embedding to coaxial outputs is supported across all sixteen outputs, and with ARC enabled display audio is extracted back to the matching coaxial port. The unit is HDMI 2.0b, HDCP 2.2/1.x, and DVI 1.0 compliant at 18Gbps, with HDR, HDR10, HDR10+, Dolby Vision, and HLG supported.
