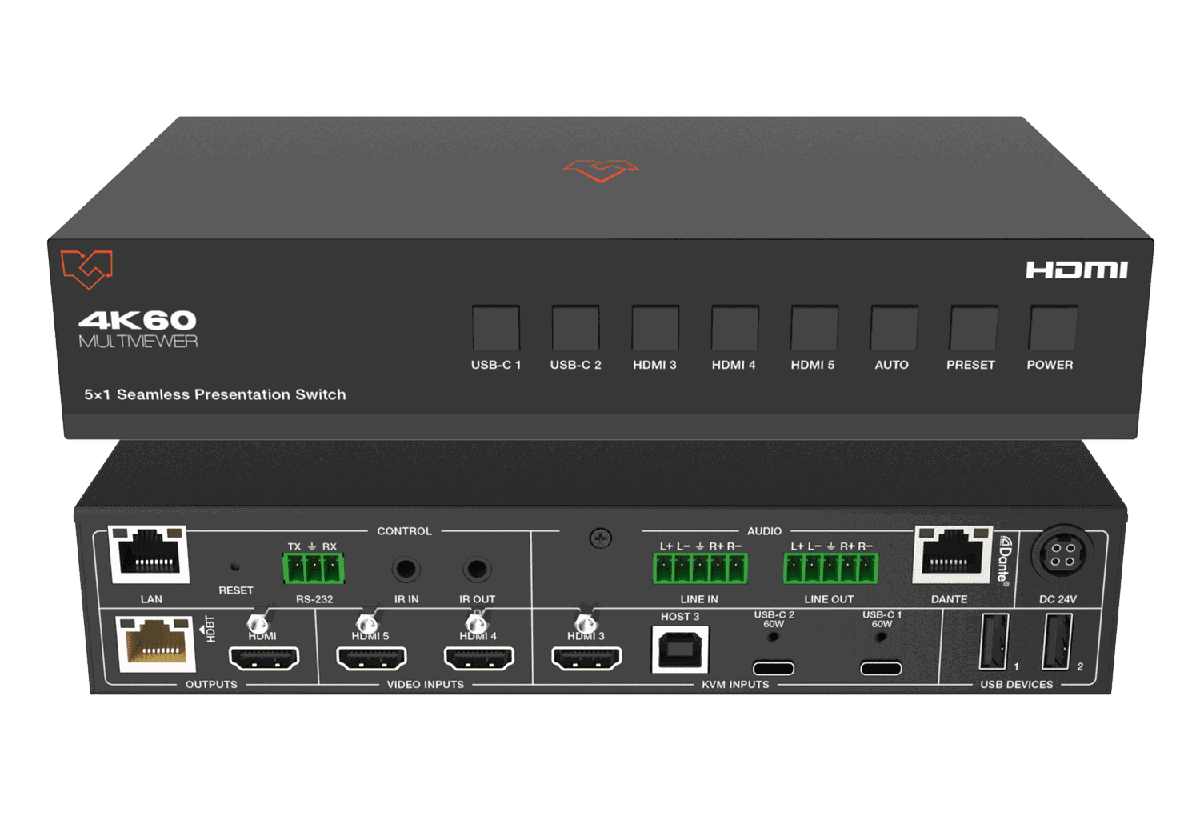

VigilLink VLPT-51HT70 5x1 Seamless Presentation Switcher with Dante and HDBaseT 3.0

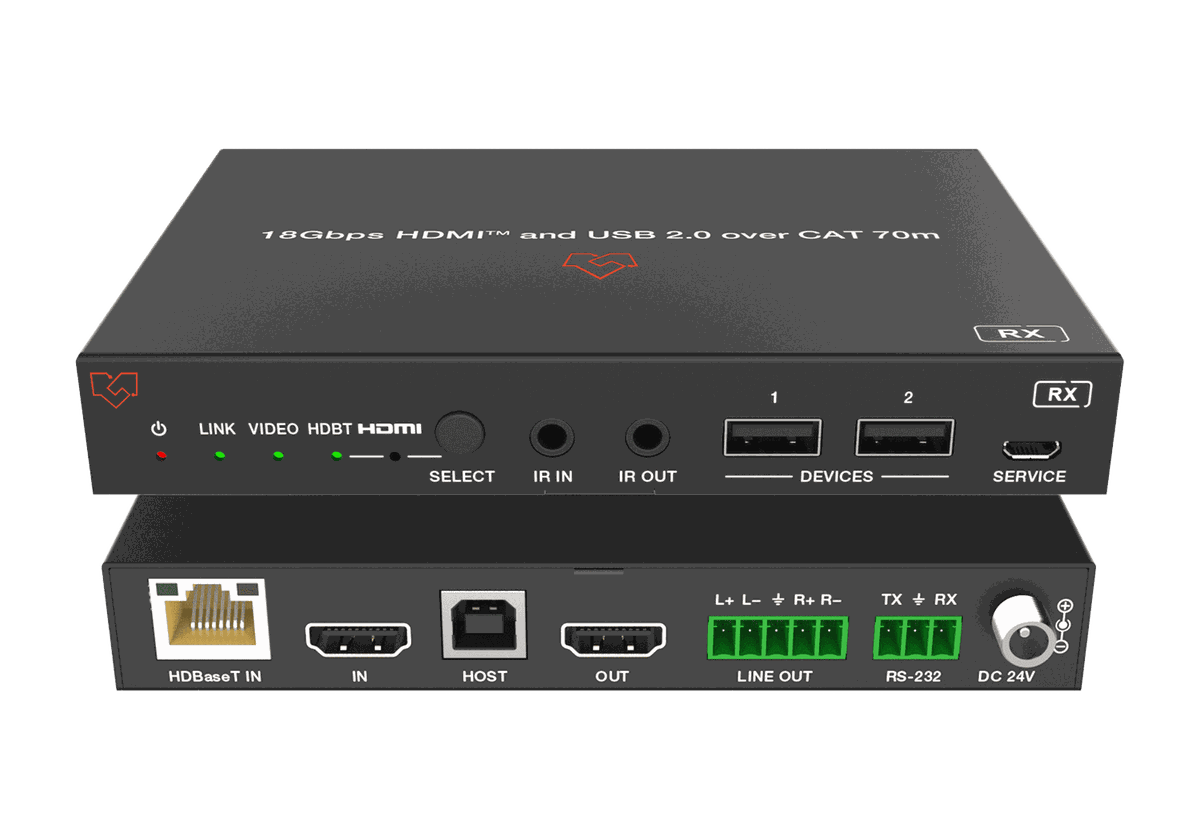

The VLPT-51HT70 consolidates three HDMI sources and two USB-C sources into one seamless switcher with multiview, and ships with an HDBaseT 3.0 receiver that carries 4K at 18Gbps up to 70 meters. The USB-C inputs handle DisplayPort Alt Mode video, USB 2.0, Ethernet pass-through to 100 meters, and 60W device charging.

Audio is handled by Dante 2x2 integration with a built-in 3x3 audio matrix, giving independent EQ, volume, and delay per channel. Full KVM switching and USB 2.0 extension travel over the HDBaseT link, so the remote position drives whichever source is on screen.

HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2
Video Bandwidth18Gbps
Network Bandwidth100Mbps
Inputs1x HDMI IN [Type A, 19-pin female]; 1x HDBaseT IN [RJ45]
Outputs1x HDMI OUT [Type A, 19-pin female]; 1x LINE OUT [5-pin 5mm phoenix connector]
Transmission Distance1080P & 4K@30Hz: 230ft/70m; 4K@60Hz: 131ft/40m (via single CAT6A F/FTP cable)
Audio FormatsLPCM 2.0
