VigilLink VLMX-0402E 4x2 HDMI 2.0 Matrix Switcher with Scaling and Display Control

The VLMX-0402E takes four 18G HDMI inputs to two HDMI outputs, each output independently scalable. Every port supports up to 4K60 4:4:4 with full HDMI 2.0 and HDCP 2.2 compliance, and each output can be downscaled to 1080p for a legacy display or an HDBaseT extension leg.

Audio de-embedding on both outputs provides analog L/R and optical TosLink feeds. The unit is built for automation, with display control so a source change can also power and switch the connected screen.

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18Gbps
Video Resolution	4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions, including 1920 x 1200
Input Ports	4xHDMI Type A [19-pin female]
HDMI IN / OUT	16ft / 5M

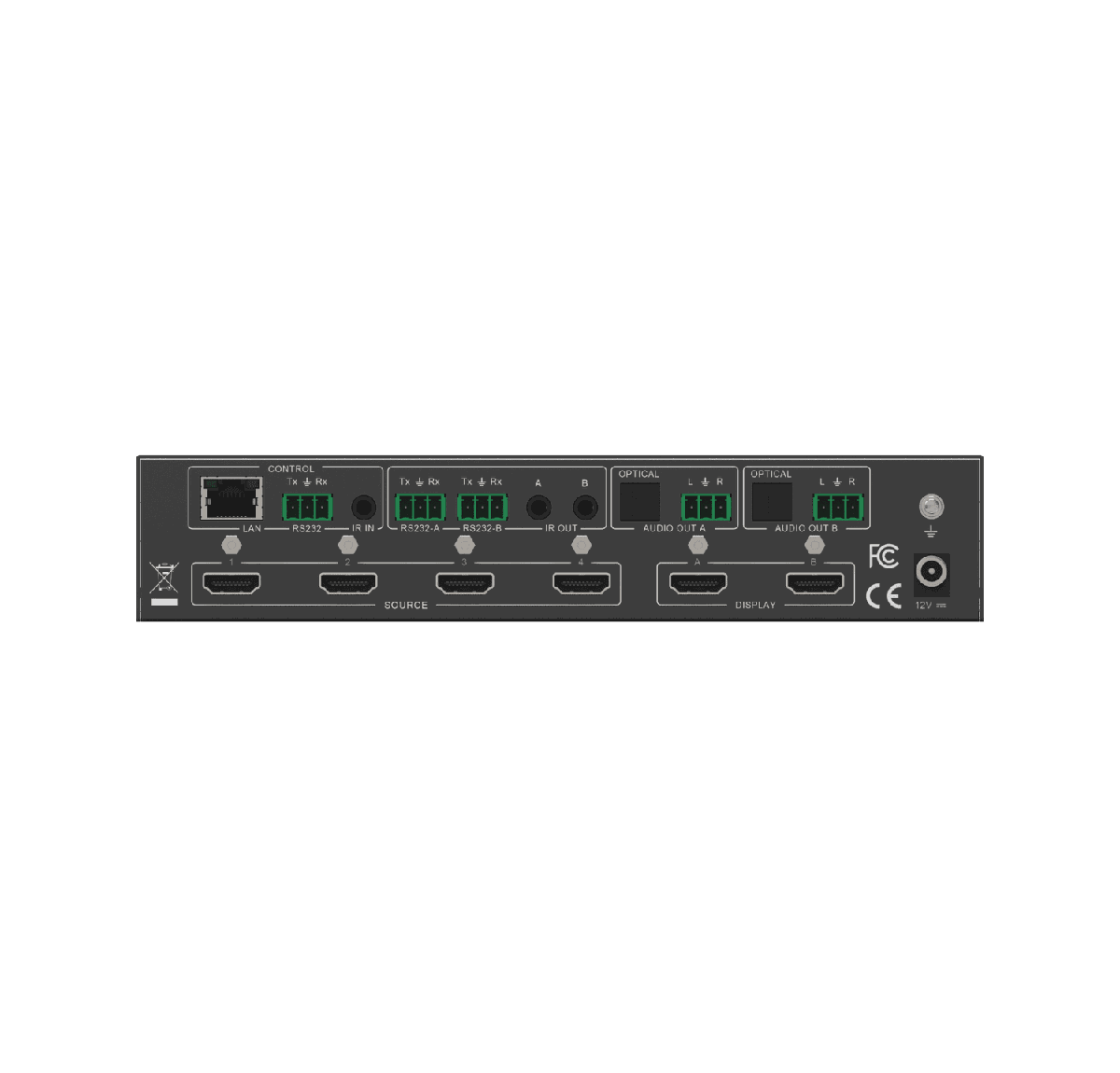

Output Ports	2xHDMI Type A [19-pin female] 2xL/R audio out [3-pin phoenix connector] 2xOPTICAL audio out [S/PDIF] 2xRS232 A/B [3-pin phoenix connector]
HDMI Audio Formats (Pass-through)	PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
