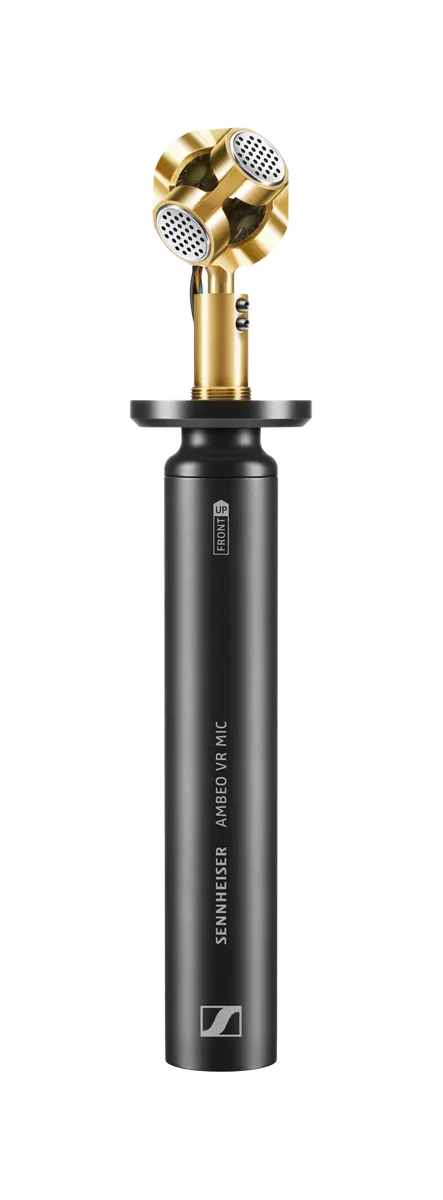

Sennheiser AMBEO VR Mic Ambisonic Microphone

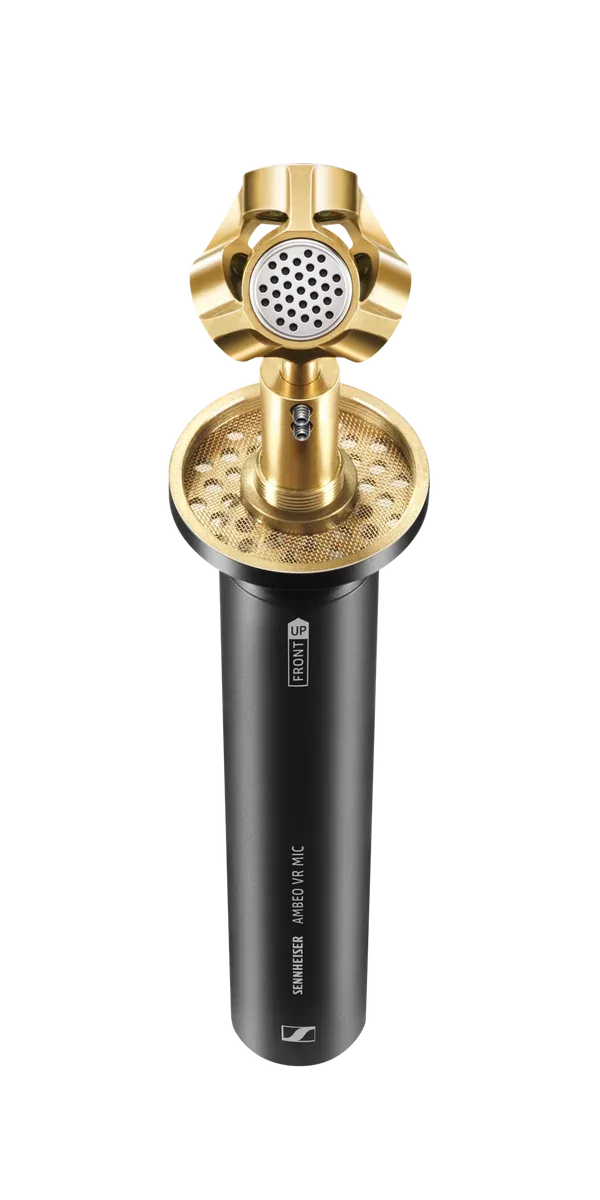

A 360 video that sounds like it came from one direction breaks the illusion immediately. The AMBEO VR Mic records a first-order ambisonic soundfield instead: four matched cardioid capsules arranged in a tetrahedron, output in A-format, which converts to B-format and then to whatever the delivery platform wants, with the listener's head orientation applied at playback.

All four capsules are pre-polarized condensers running 20 Hz to 20 kHz at 31 mV/Pa, with 130 dB(A) maximum SPL and 18 dB(A) of self-noise, and the four channels are matched so the decode does not fight capsule variation. Power is four channels of P48 at 3.5 mA. Connection is a DIN12M on the body with an adapter cable breaking out to four XLR-3M, so it records to any four-input interface or field recorder. The body is 215 mm long and 49 mm at its widest.

  • Dimensions215 x 49/25 mm (L x D)
  • ConnectionWired
  • Audio frequency response20 Hz to 20 kHz
  • Pickup patternCardioid
  • Sensitivity31 mV/Pa (-30 dBV)
Transducer typePre-polarised
Audio frequency response20 Hz to 20 kHz
Equivalent noise level (db)18 dB(A)
Max. sound pressure level130 dB(A) for 1 kHz
Pickup pattern
ConnectionWired
Operating relative humidity (≤ %)Max 90% at 40 °C
Operating temperature (C)-10 °C to 55 °C (14 °F to 131 °F)
Sensitivity31 mV/Pa (-30 dBV)
Nominal impedanceApprox. 200 Ω
Min. terminating impedance1000 Ω
Dimensions215 x 49/25 mm (L x D)

Full specifications on the manufacturer’s site
