Sennheiser AVX ME2/835 SET-4 Camera-Mount Wireless Combo System
The AVX ME2/835 SET-4 is a digital camera-mount wireless system that packs both a bodypack and a handheld transmitter into one kit, so a shooter can switch between a clip-on lavalier and a stick mic without carrying two rigs. It runs in the license-free 1.9 GHz band and manages its own frequencies automatically, so there is no channel scanning or coordination before rolling. The ultra-compact EKP AVX receiver plugs straight into a camera's XLR input and powers up from the camera's phantom supply.
The bodypack pairs with the ME 2 omnidirectional condenser lavalier, while the SKM AVX handheld carries an MMD 42-1 omnidirectional dynamic capsule; only one transmitter runs at a time. Audio is carried at 24-bit/48 kHz with 19 ms latency and AES 256 encryption. The kit ships with the EKP AVX receiver, SK AVX bodypack, ME 2 lavalier, SKM AVX handheld, BA 10/BA 20/BA 30 rechargeable batteries, EKP AVX adapter, NT 5-10U power supply, CI 400 adapter cable, a handheld stand clamp, and a bag.
- Battery capacity (Ah)2.2
- Audio output level-30 dBu - 0 dBu in 4 Steps
- ConnectionWireless
- Audio input3,5 mm mini jack
- Audio outputXLR
| Transducer type | |
|---|---|
| Latency (ms) | 19 ms |
| Total harmonic distortion (THD) | typ. 0.1 % |
| Frequency range | 1920.000 - 1930.000 |
| Audio frequency response | 20 Hz to 20000 Hz |
| Dynamic range (>) | > 120 dB(A) |
| Sampling rates | 24 bit / 48 kHz |
| Audio output level | -30 dBu - 0 dBu in 4 Steps |
| Signal-to-noise ratio | > 90 dB(A) |
| Pickup pattern | Omnidirectional |
| Connection | Wireless |
| Audio input | 3,5 mm mini jack |
| Audio output | |
| Operating temperature (C) | -10 °C - + 55°C |
| Battery capacity (Ah) | 2.2 |
| Battery count | 1 |
| Battery voltage (V) | 3.6 |
| Battery specification | Li-Ion 3,7 V DC |
| Battery operating time (h) | > 4h (Receiver), typ 15 h (Transmitter with LiIon energy pack) |

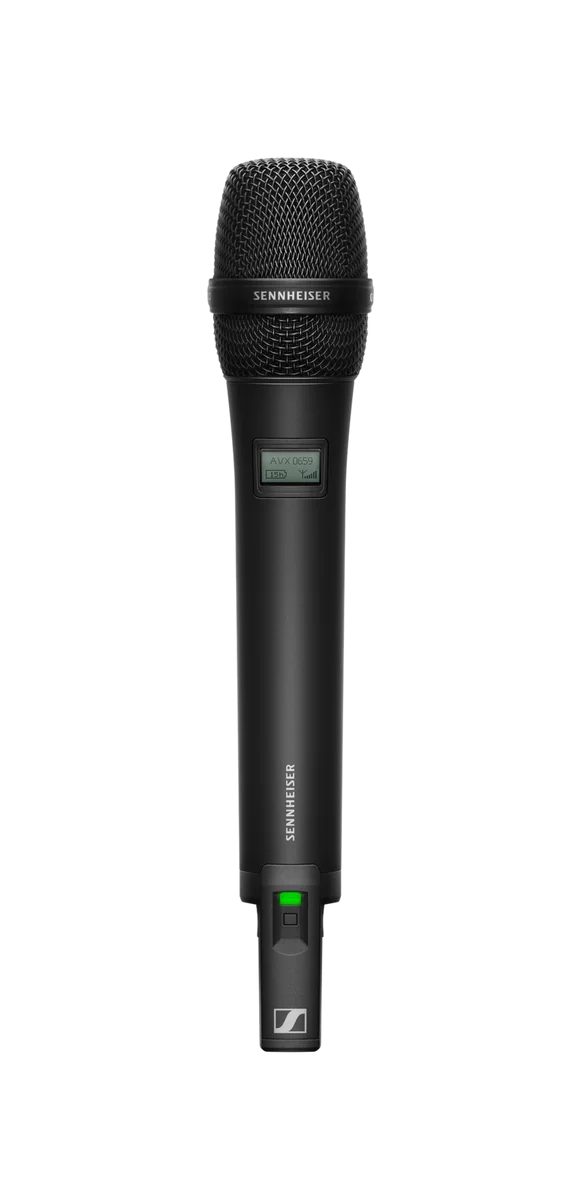

- SKM AVX Handheld transmitter
- MMD 835-1 BK Microphone capsule

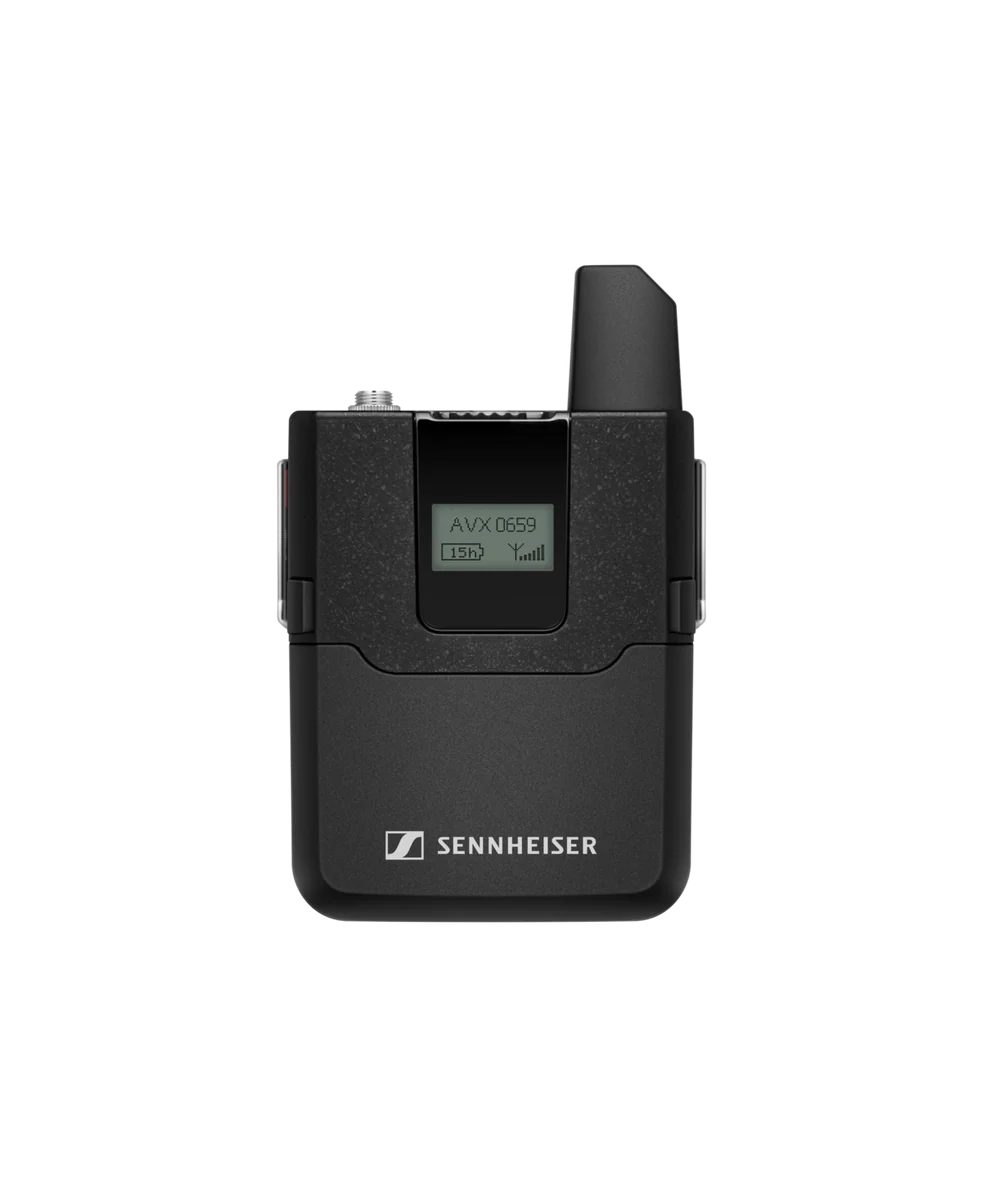

- SK AVX Bodypack transmitter

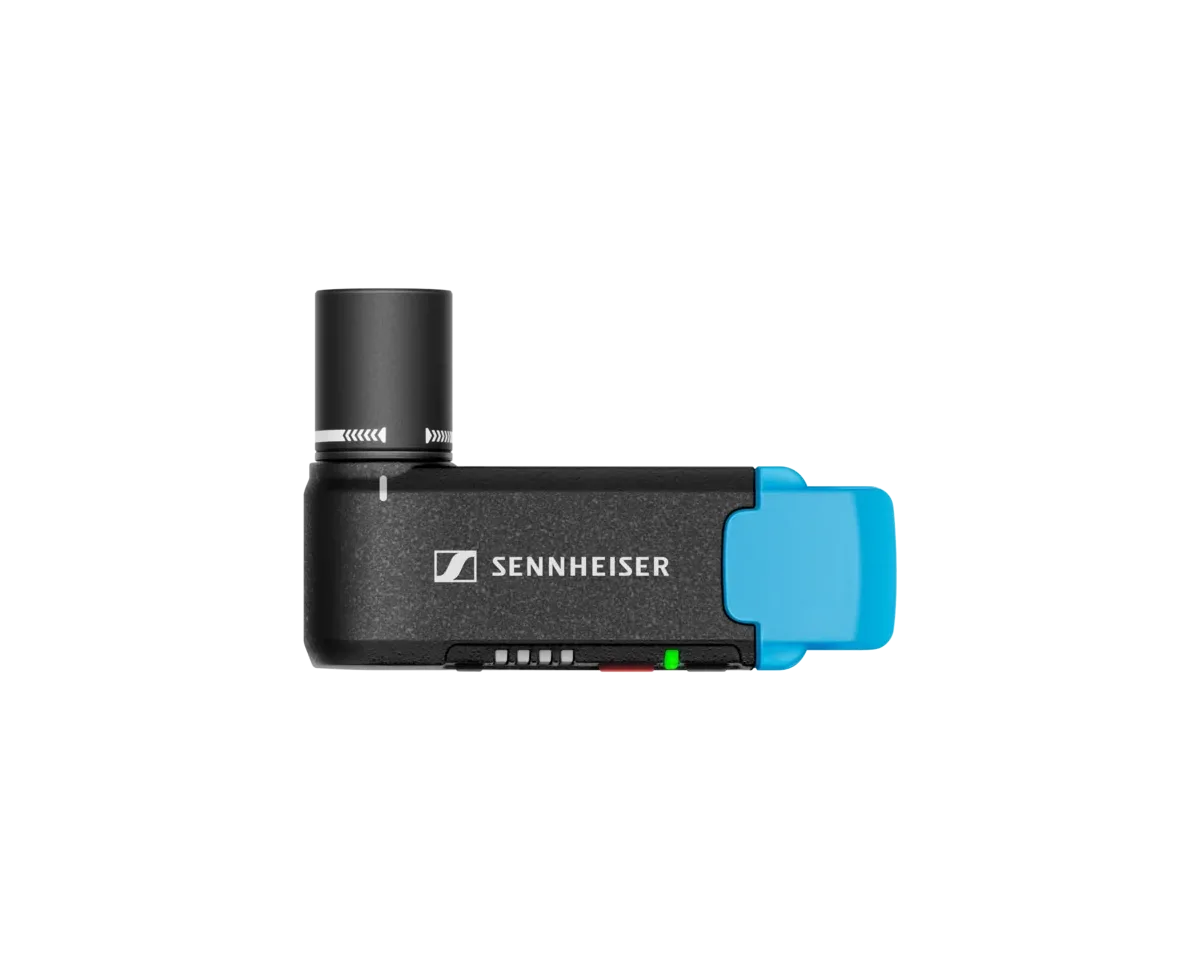

- EKP AVX Plug-on Receiver
- EKP AVX Adapter
- ME 2 Lavalier microphone
- BA 10 Rechargeable battery
- BA 20 Rechargeable battery
- BA 30 Rechargeable battery
- CL 400 Adapter cable
- SKM 6000 Microphone clip
- NT 5-10U Power supply
- Pouch
- Quick guide
