PROTON CAM Miniature 1080p Broadcast POV Camera

The PROTON CAM is the camera that started the line: a 28 x 28 x 23 mm body weighing 24 grams that delivers 12-bit 1080p with HDR output in HLG, PQ and S-Log3. It draws 2.5 W and will run on anything from 4.5 to 25 V, which is what lets it live inside a helmet, a scoreboard, a piano lid or a set piece for a whole event without a dedicated power plan. A stereo microphone and tally light are integrated.

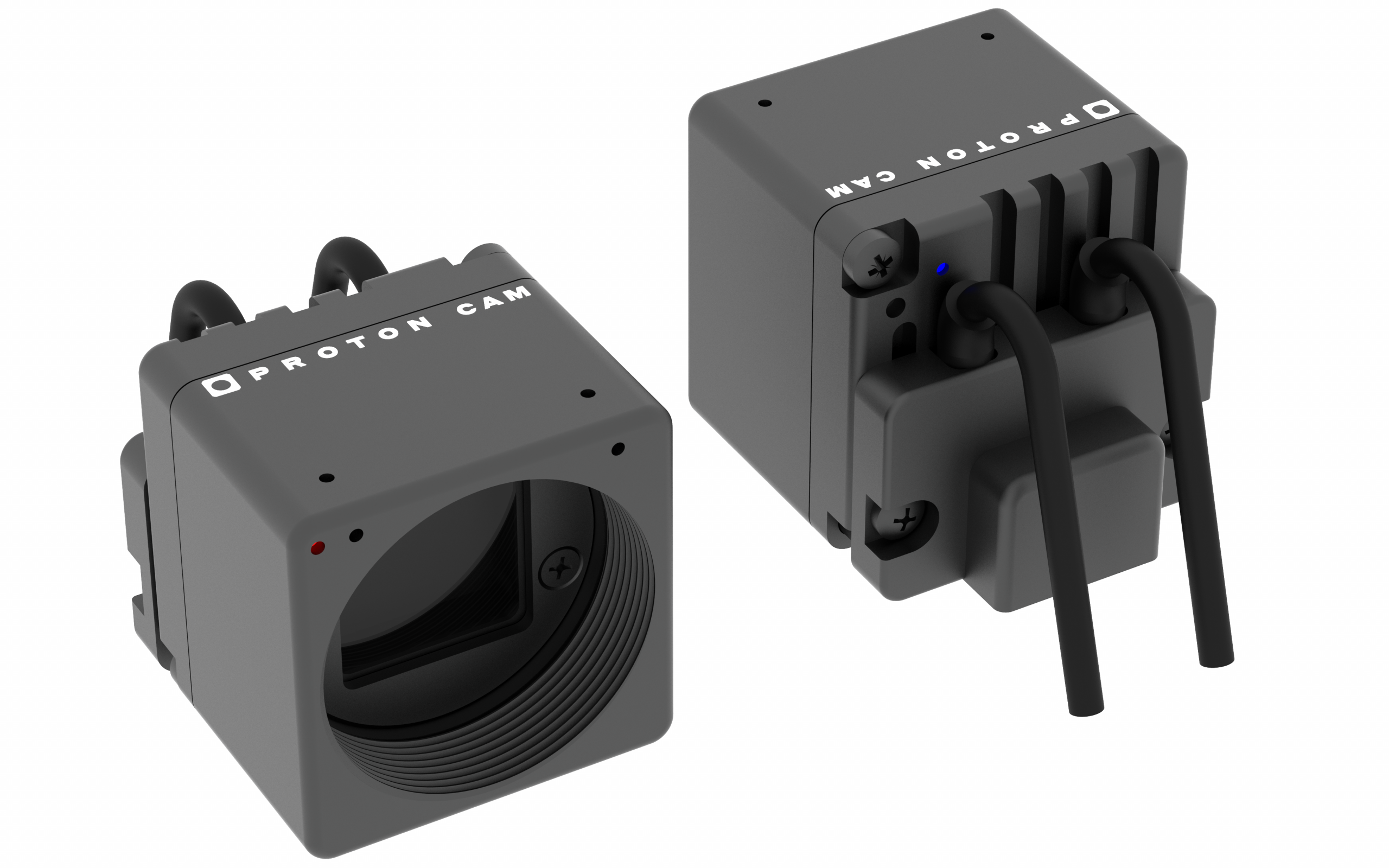

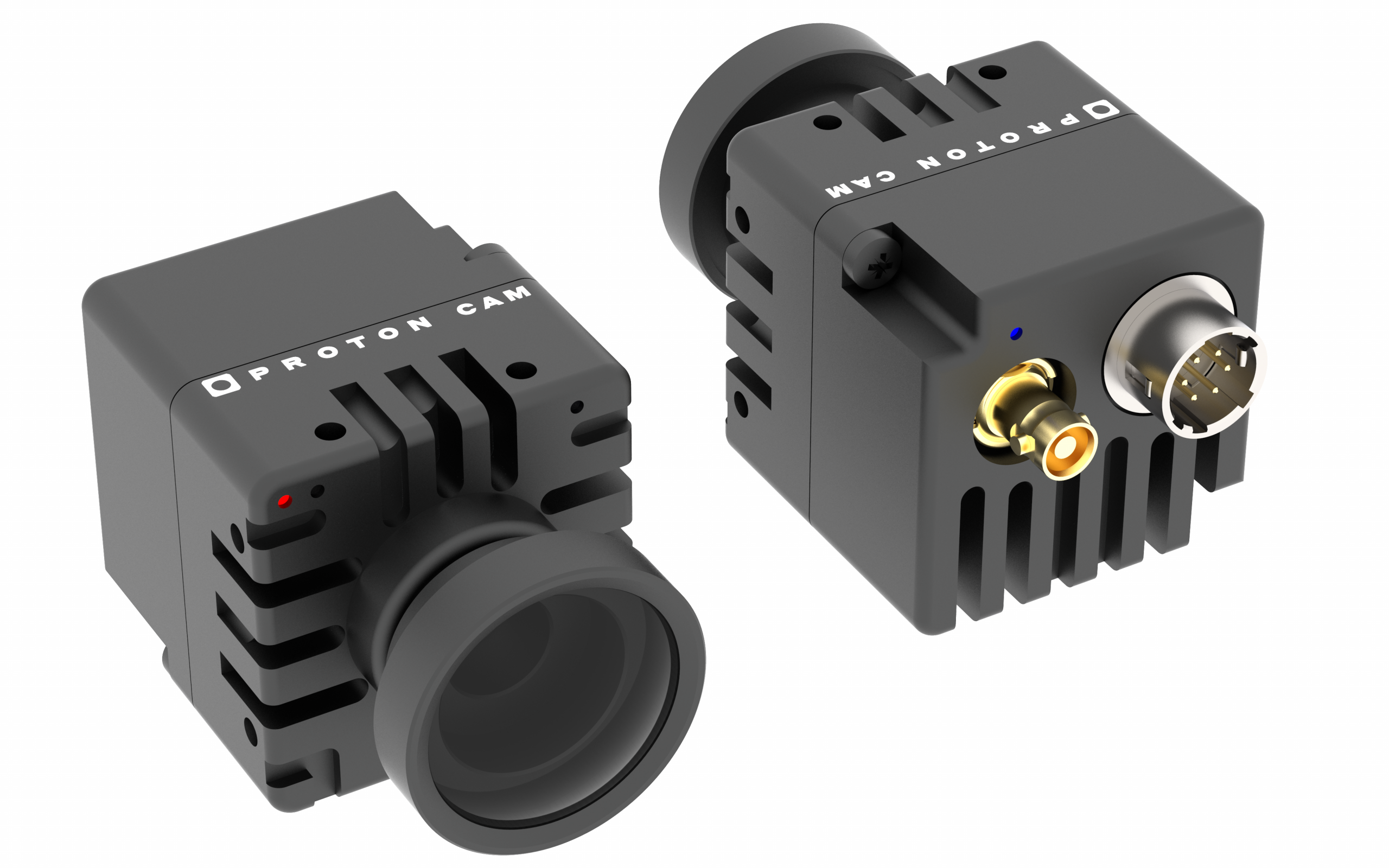

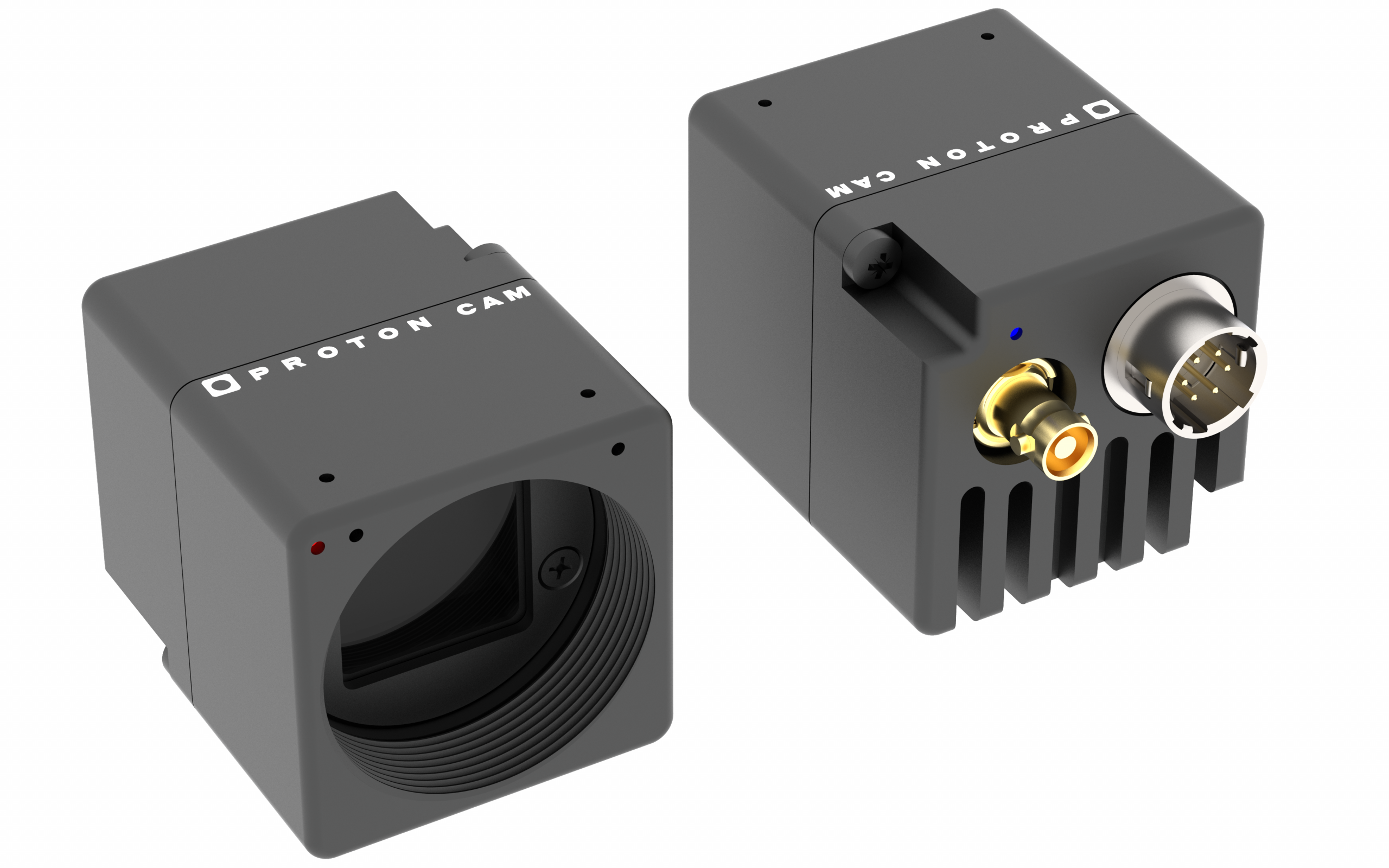

Four build options cover how you need to terminate it. The standard PCI-CAM-02 uses an M12 lens mount and pigtails; PCI-CAM-CON adds a mini HD-SDI connector and a Hirose male connector in a 28 x 28 x 39 mm body; PCI-CAM-CS swaps the M12 mount for C/CS in the same 39 mm length; and PCI-CAM-CON-CS combines connectors and the C/CS mount at 28 x 28 x 33 mm. Image performance is identical across all four. Lens angle reaches 120 degrees with the widest PROTON optic.
