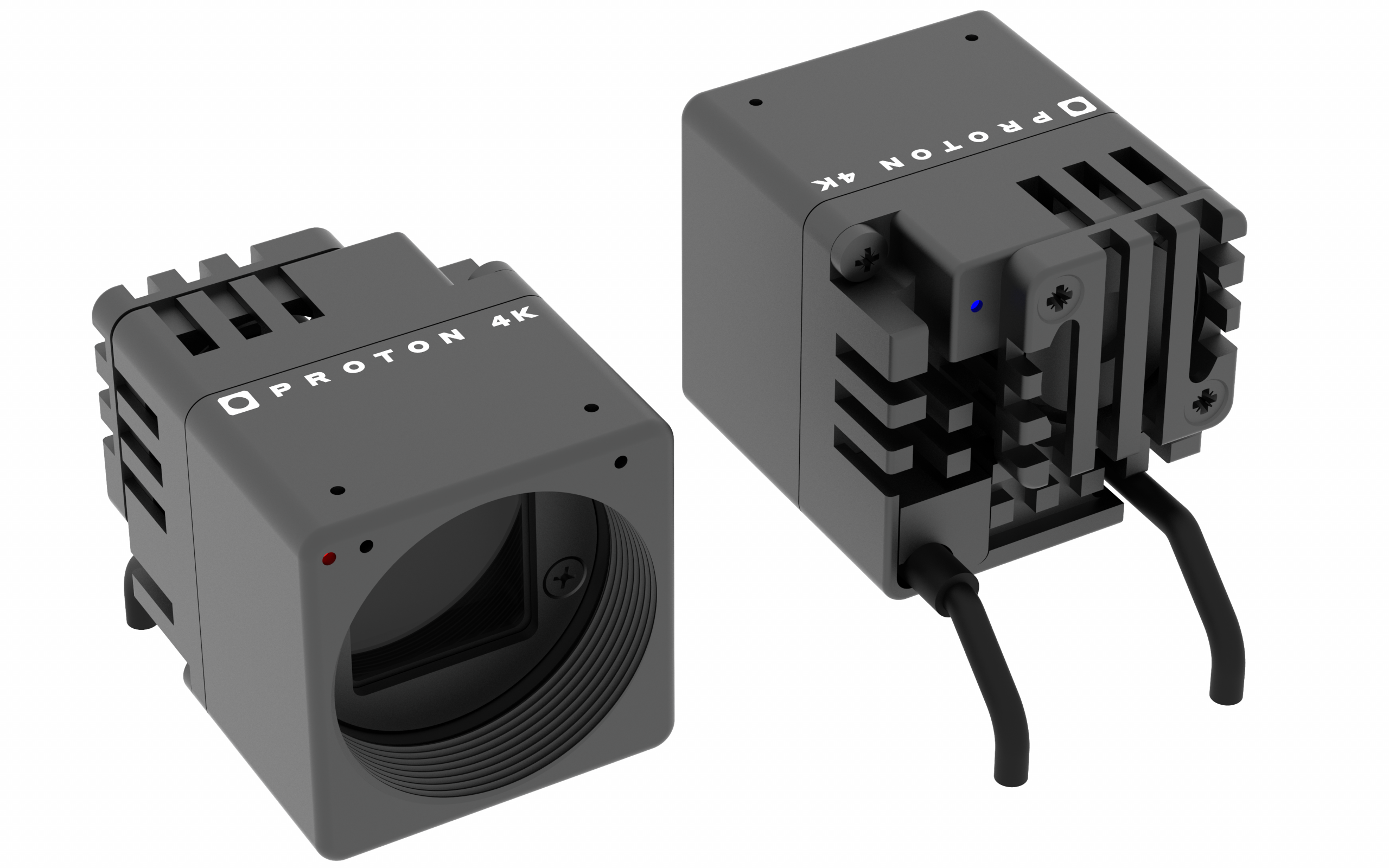

PROTON 4K Miniature Broadcast POV Camera

The PROTON 4K is a broadcast POV camera with a body the size of a sugar cube. It shoots 4K at 60 fps off a 12-bit pipeline and will downscale to 1080p when the rest of the chain is HD, so one head covers both workflows. High sensitivity and low noise mean it holds up in the dim corners where these cameras usually end up: goal posts, dugouts, drum risers, lighting trusses. HDR output is compliant with HLG, PQ and S-Log3, and a 2.2 mm lens opens the field of view to 124 degrees.

It runs on anything from 10 to 25 V and draws 6 W, so it powers off the same rigs already feeding your remote heads. A stereo microphone and an integrated tally light are built in. The standard PCI-4K uses the M12 mount that PROTON lenses share; the PCI-4K-CS is the identical camera with a C/CS mount for cine and machine-vision glass.
