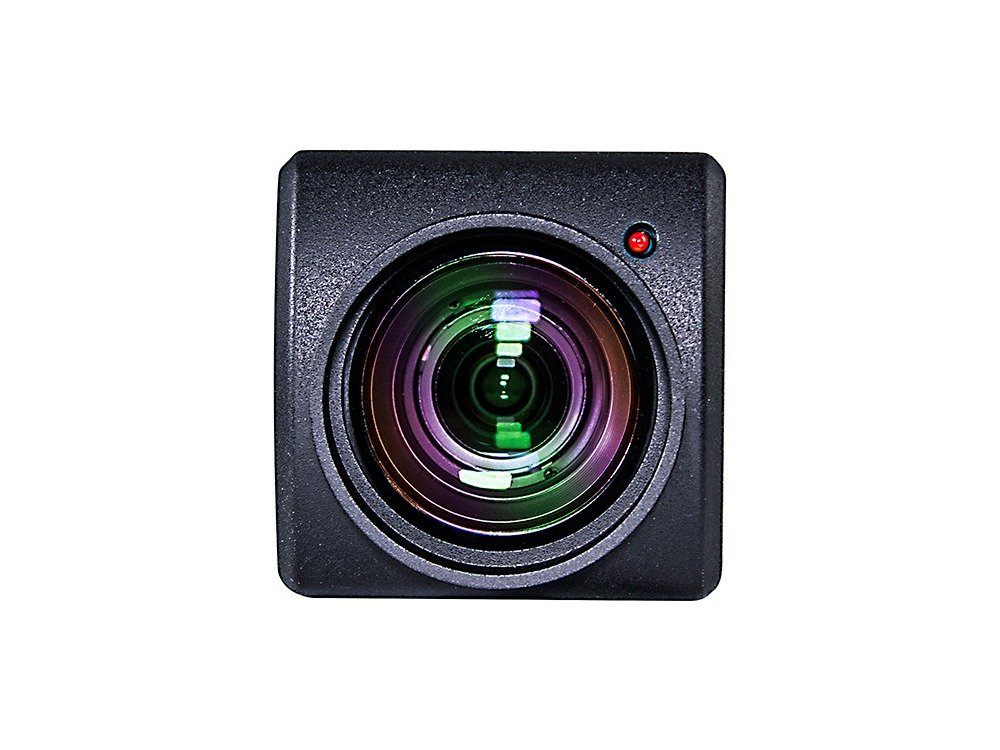

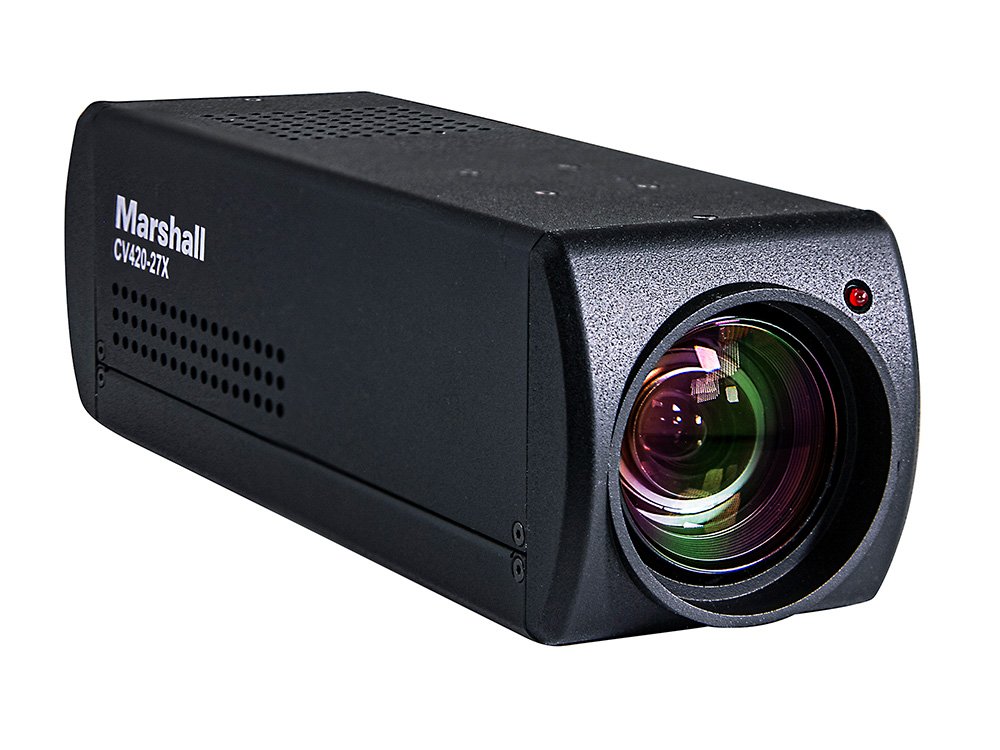

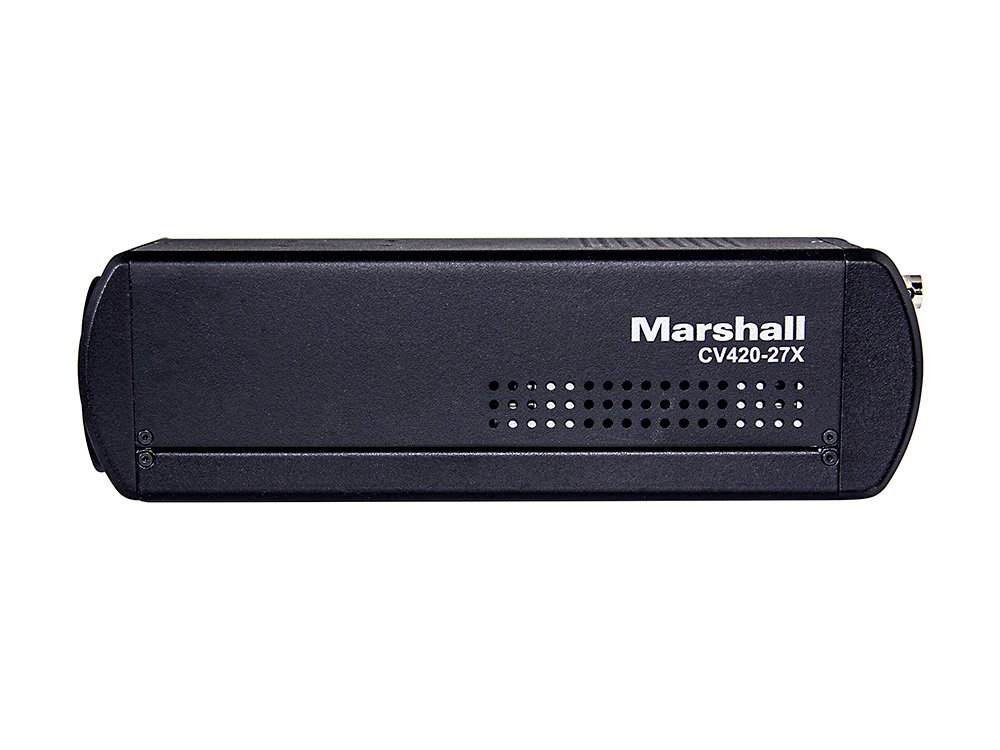

Marshall Electronics CV420-27X 4K60 27x IP (HEVC) and HDMI Camera

The CV420-27X pairs an 8.57-megapixel IMX317 sensor with a 27x optical zoom block (5.56-150.29mm, F1.66-F4.98) for UHD capture up to 3840x2160p, stepping down to 1080p, 1080i and 720p. IP streaming carries HEVC and SRT for bandwidth-efficient delivery, and HDMI plus 3G-SDI cover local monitoring and house feeds.

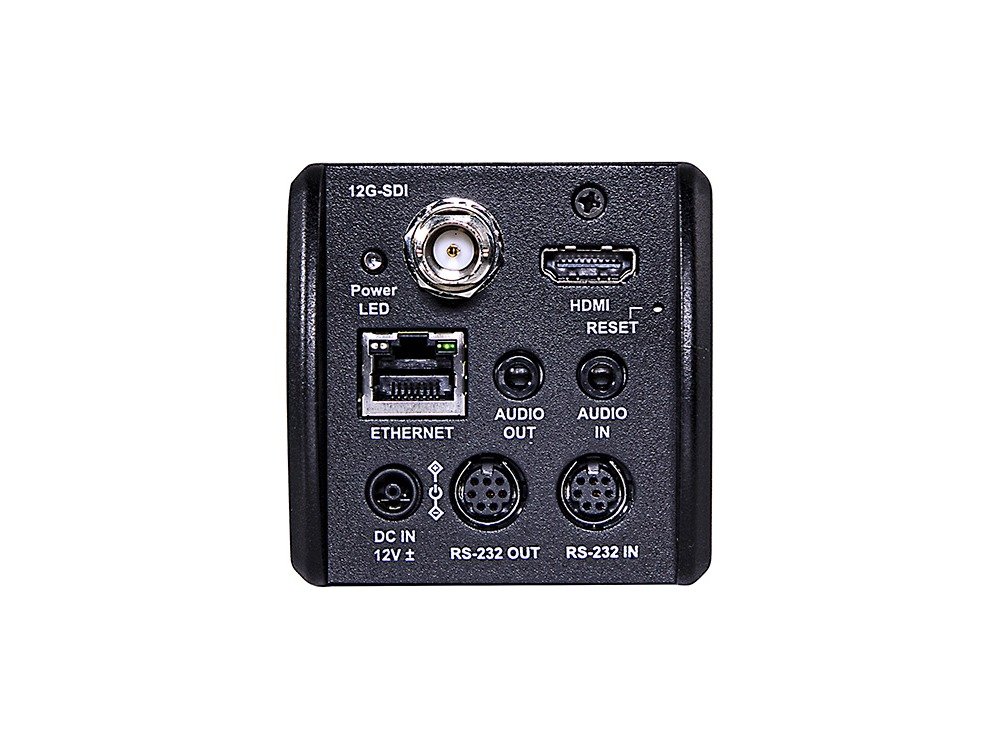

A single Ethernet run supplies PoE power, video and RS-232 VISCA control, so the camera needs only one cable back to the switch. It draws up to 19W on PoE or up to 17W from a 12V/3A supply, and supports ONVIF and web-based control for integration with third-party production systems.

Sensor	1/2.5 inch 8.57 MP CMOS (IMX317)
Optical Zoom	27x (5.56-150.29mm), 12x digital
Angle of View	60 deg horizontal, 3.2 deg full telephoto
Video Formats	4K (3840x2160p), 1080p, 720p, 1080i up to 59.94fps
Outputs	HDMI, 3G-SDI, IP (HEVC/SRT)
Networking	1Gbps Ethernet with PoE
Control	RS-232 VISCA, ONVIF, web interface
Power	PoE (<=19W) or 12V DC/3A (<=17W)
