Marshall Electronics CV504-WP Weatherproof Micro POV Camera

The CV504-WP is a weatherproof micro POV camera that puts a 2.2 megapixel Sony sensor into an IP67-rated body small enough to tuck into a set, a goal, or an exterior rig. It ships with an interchangeable CV-4704.0-3MP 4.0mm lens that frames a 78.8 degree horizontal angle of view, and it outputs 3G-SDI at 10-bit 4:2:2 in the BT.709 color space so it cuts cleanly alongside larger cameras in live production, sports, and wildlife work.

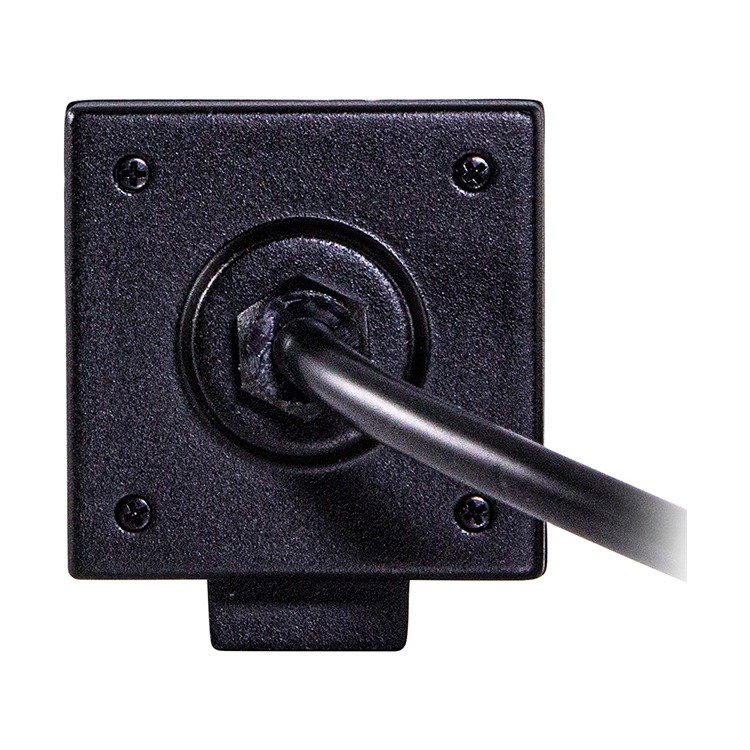

All of the connections leave the camera on a 10-foot (3 meter) weatherproof breakout cable that terminates in BNC, RS485, and power, keeping the exposed head sealed. Picture can be remotely adjusted and matched over RS485 through the CV-RCP-V2, Marshall camera control software, and third-party controllers such as Cyanview and Skaarhoj. The camera runs on a flexible 7 to 15V supply and draws just 2.64W, with a 6W maximum.
