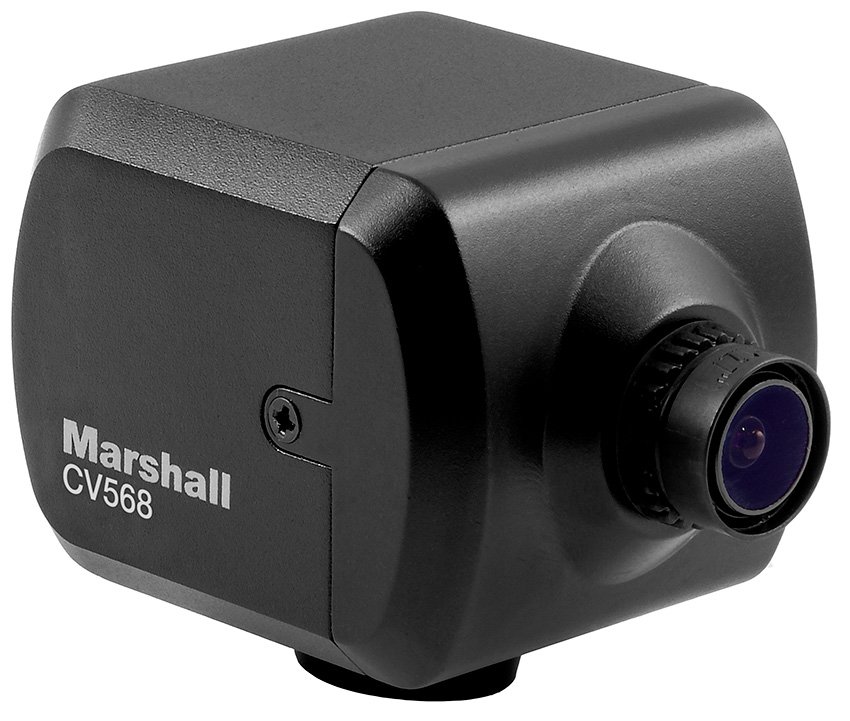

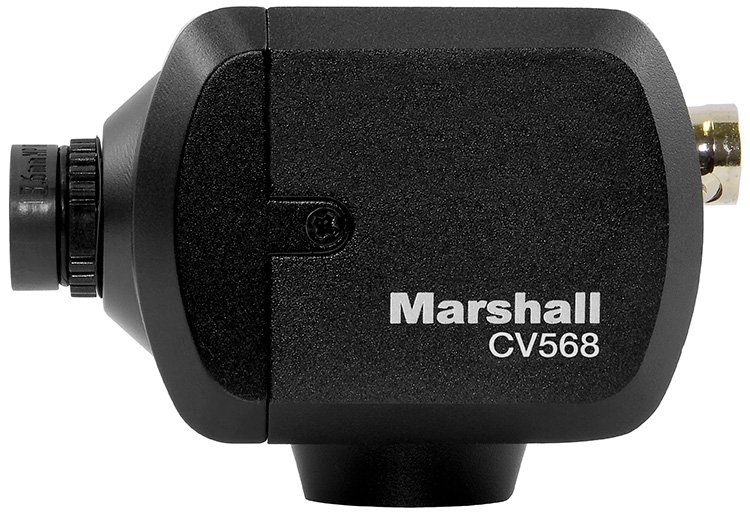

Marshall Electronics CV568 Miniature Global Shutter Camera with Genlock

The CV568 uses a 1/1.8-inch Sony global shutter CMOS sensor with 25% larger pixels than a comparable rolling-shutter chip, so fast-moving subjects in sports, racing and eSports capture stay free of skew and jello artifacts. It ships with the CV-4804.4-12MP lens (4.4mm, F2.7, 81-degree horizontal AOV) on an interchangeable M12 mount.

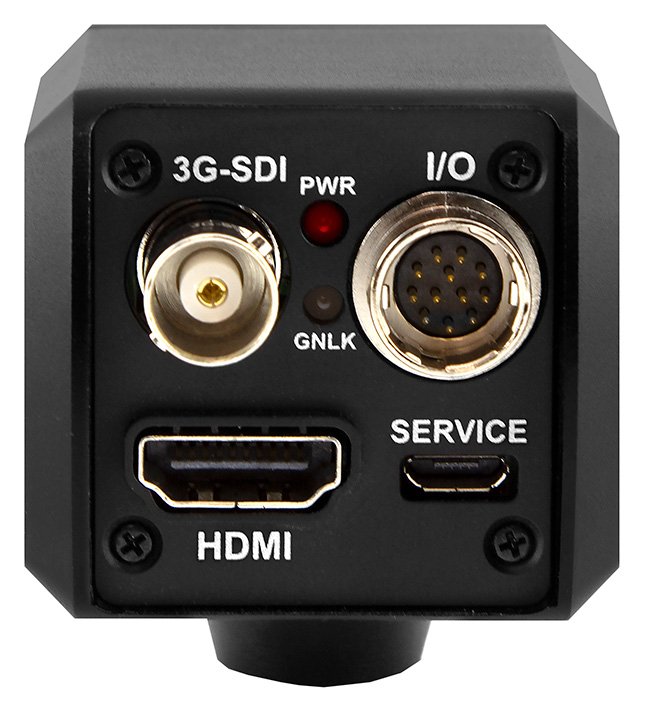

Video runs simultaneously over 3G-SDI and HDMI at up to 1920x1080p60, with tri-level sync (genlock) for locking to a house reference across a multi-camera shoot. The aluminum body draws 6 watts from a 12V supply and is rated -10C to 50C for field use.

Sensor1/1.8 inch Sony global shutter CMOS, 3.2 MP
LensCV-4804.4-12MP, 4.4mm F2.7, 81 deg horizontal AOV, M12
OutputsSimultaneous 3G-SDI and HDMI
Resolutions1920x1080p/i, 1280x720p at 50/59.94/60fps
SyncTri-level genlock
AudioMic/line stereo input, 2.5V bias, up to 48kHz
Power12V +/-10%, 6W
Mount1/4-20 standard
CV568 Global Genlock Camera with 3G-SDI/HDMI - Overview
