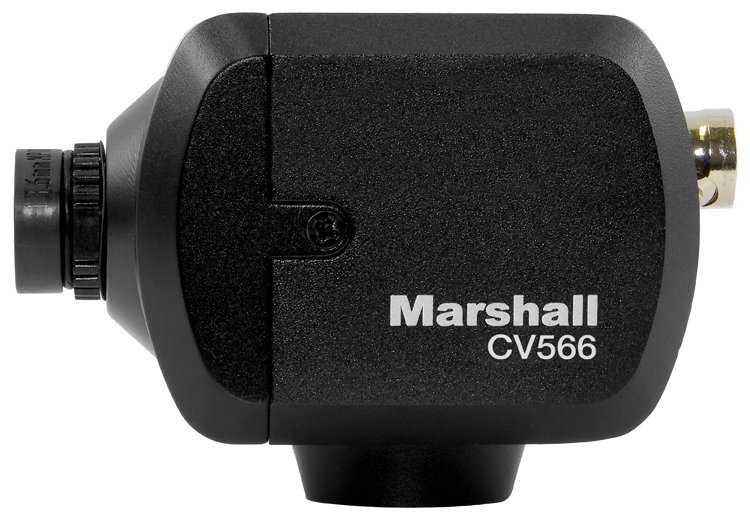

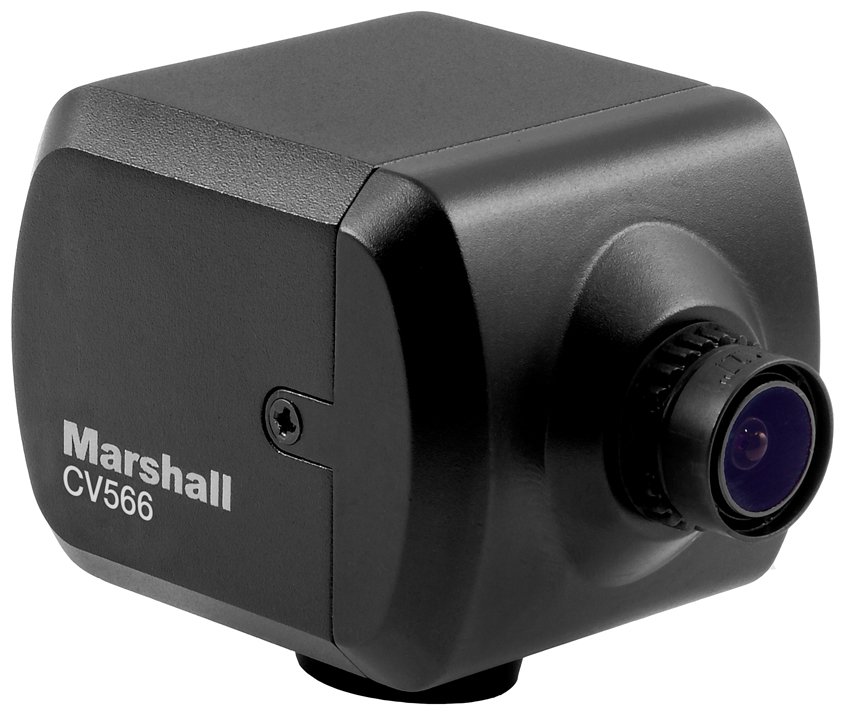

Marshall Electronics CV566 Micro Genlock Camera, 3G-SDI and HDMI

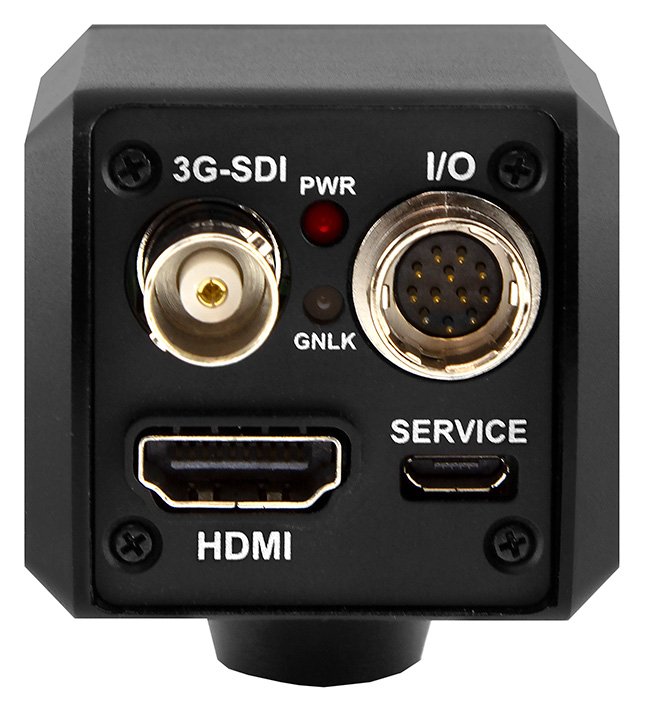

The CV566 puts a 2.2-megapixel Sony 1/2.8-inch CMOS sensor with tri-level genlock sync into an aluminum alloy micro body, shipping with the CV-4704.0-3MP 4.0mm lens on an interchangeable M12 mount. It outputs simultaneously over 3G-SDI and HDMI, holding true color across 1920x1080p, 1080i and 720p at frame rates from 23.98 to 60fps.

Low-light performance reaches 0.01 lux standard and 0.005 lux in night mode, and RS485 plus VISCA-compatible control let it be color-matched and adjusted alongside other cameras on the same rig. Power draws 6 watts from a 12V supply.
