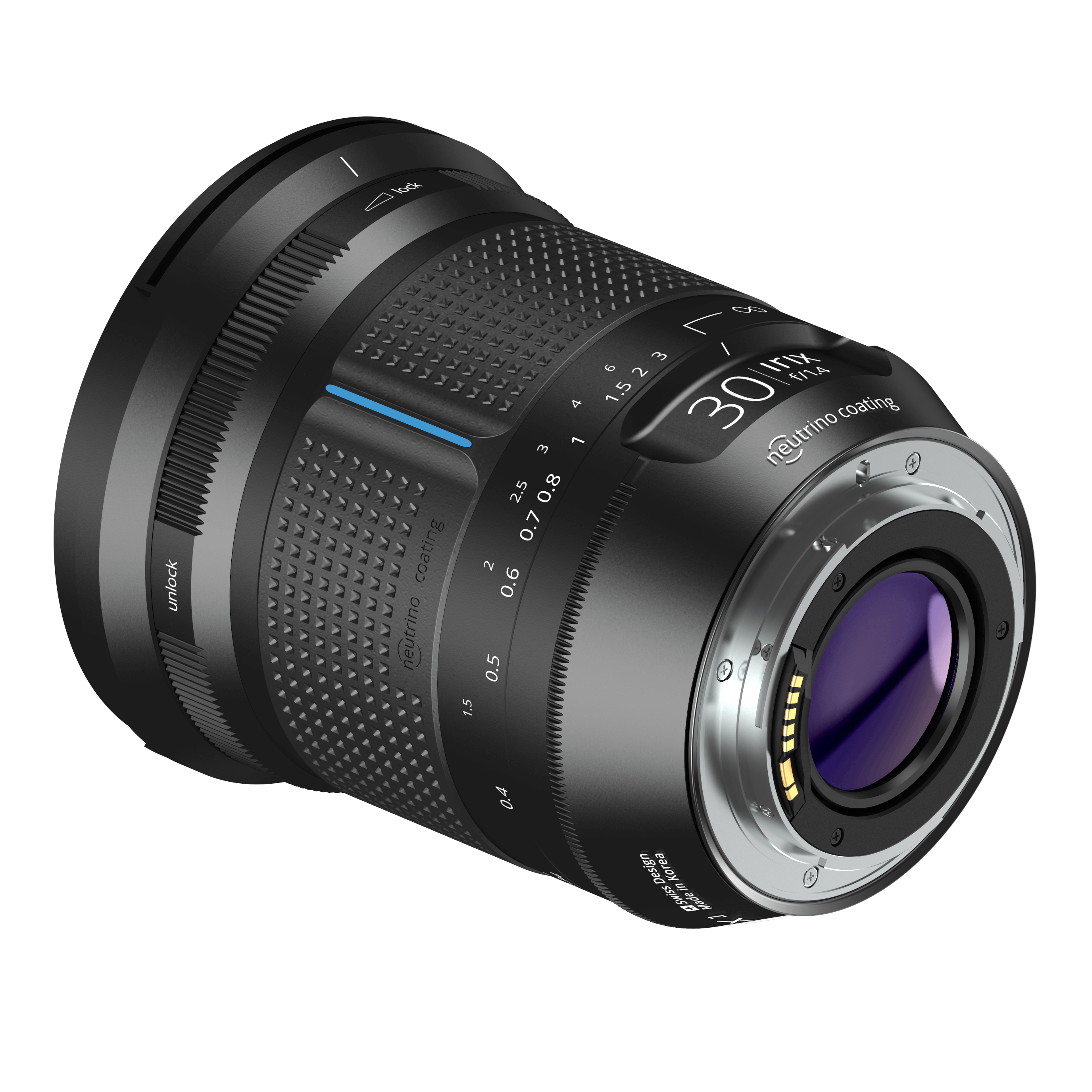

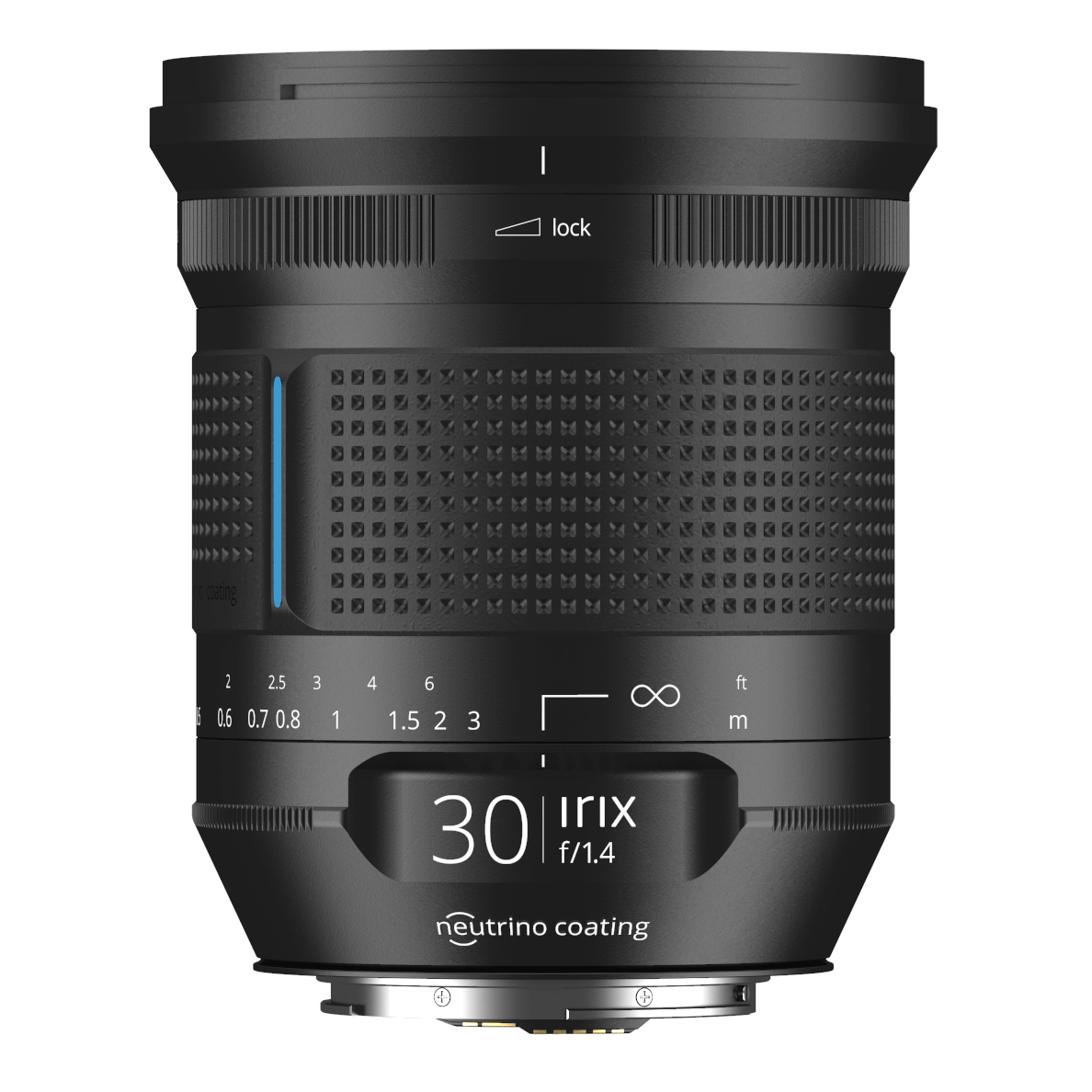

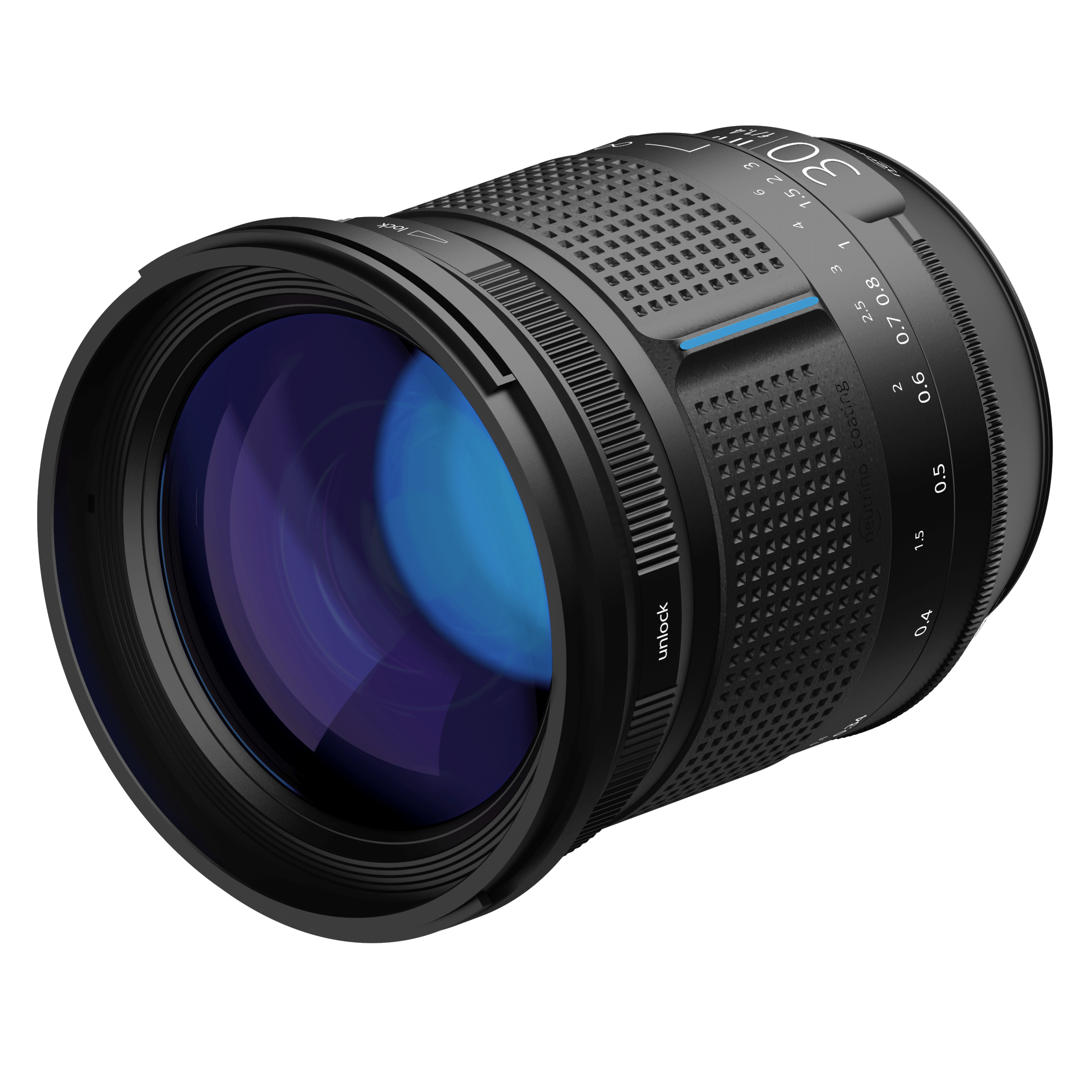

Irix 30mm f/1.4 Dragonfly Full-Frame Lens
The Irix 30mm f/1.4 Dragonfly covers 73 degrees diagonally on full frame, wider than a 35 without going into ultra wide territory, and opens to f/1.4 with an 11-blade rounded iris. Thirteen elements in nine groups keep distortion low enough for architecture, while the fast maximum aperture makes it usable for available-light reportage.

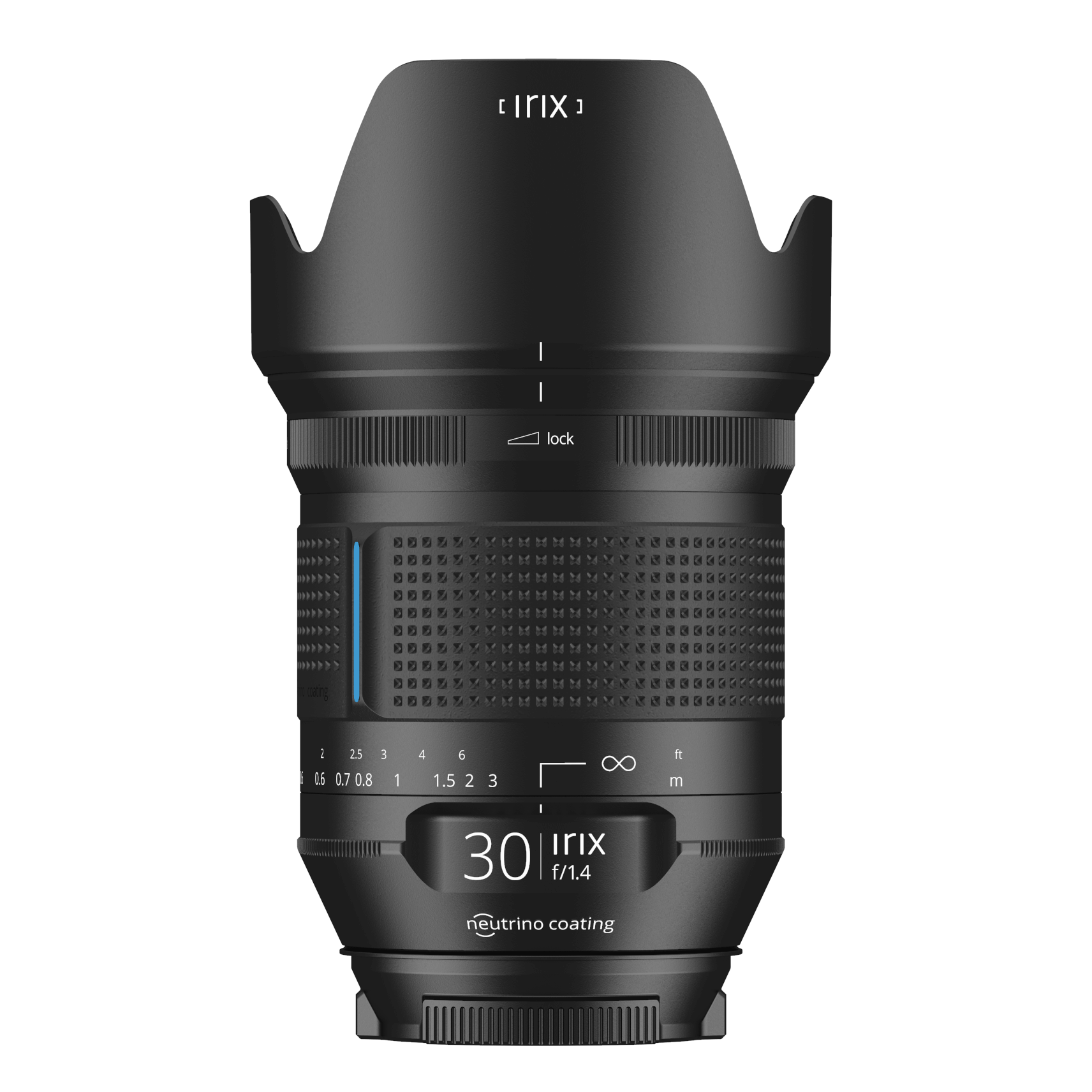

It takes 86 x 1.0 mm screw-in filters and works with the Irix Edge IFH-100 and IFH-100-PRO square filter holders. The Dragonfly barrel is metal-reinforced with a scratch-resistant finish and engraved UV reactive markings, sealed in four key areas. Focus is manual with a 140 degree throw and a lock ring; minimum focus is 0.34 m. Lens hood and caps are supplied.
| Image Coverage | Full frame (43.3 mm) |
|---|---|
| Focal Length | 30 mm |
| Aperture Range | f/1.4 - f/16 |
| Field of View | 73 degrees diagonal |
| Iris | 11 rounded blades |
| Minimum Focus | 0.34 m (13.38 in) |
| Optical Construction | 13 elements in 9 groups |
| Front Filter Thread | 86 x 1.0 mm |
| Focusing | Manual, 140 degree throw |
| Weather Sealing | 4 key areas |
