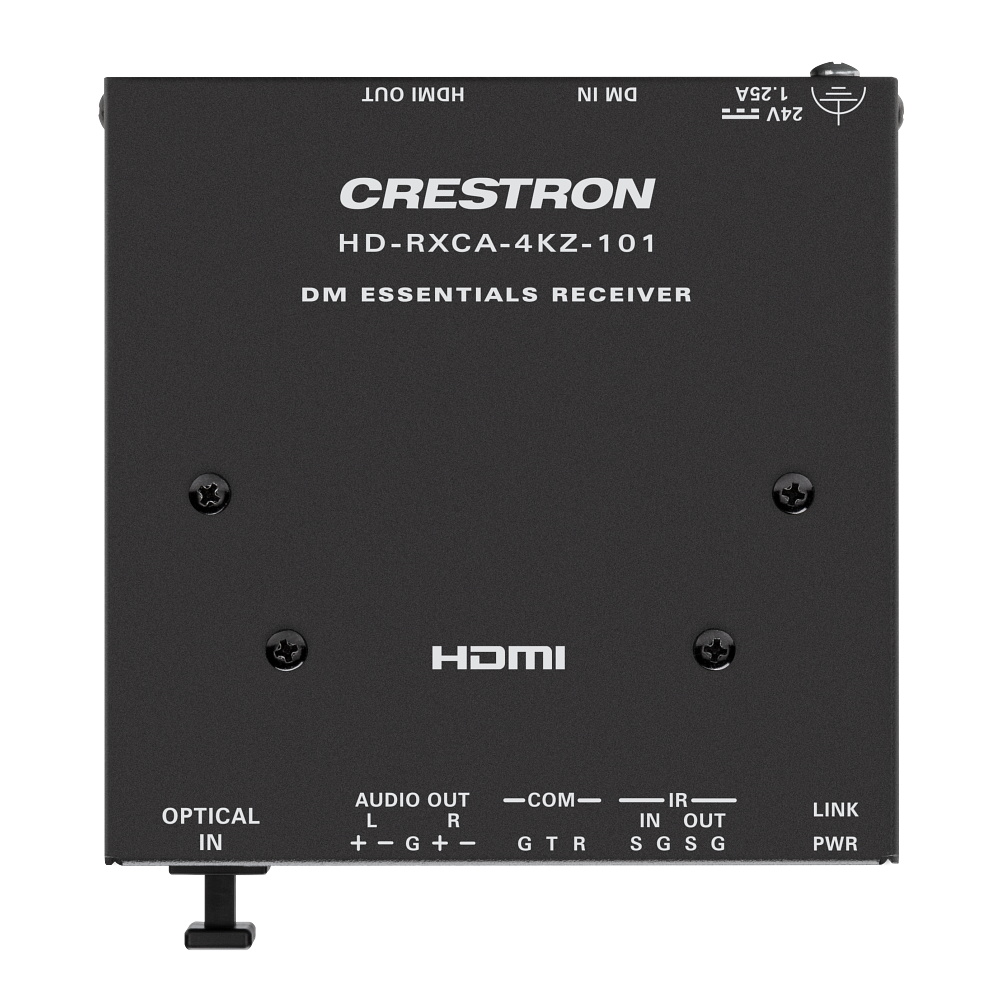

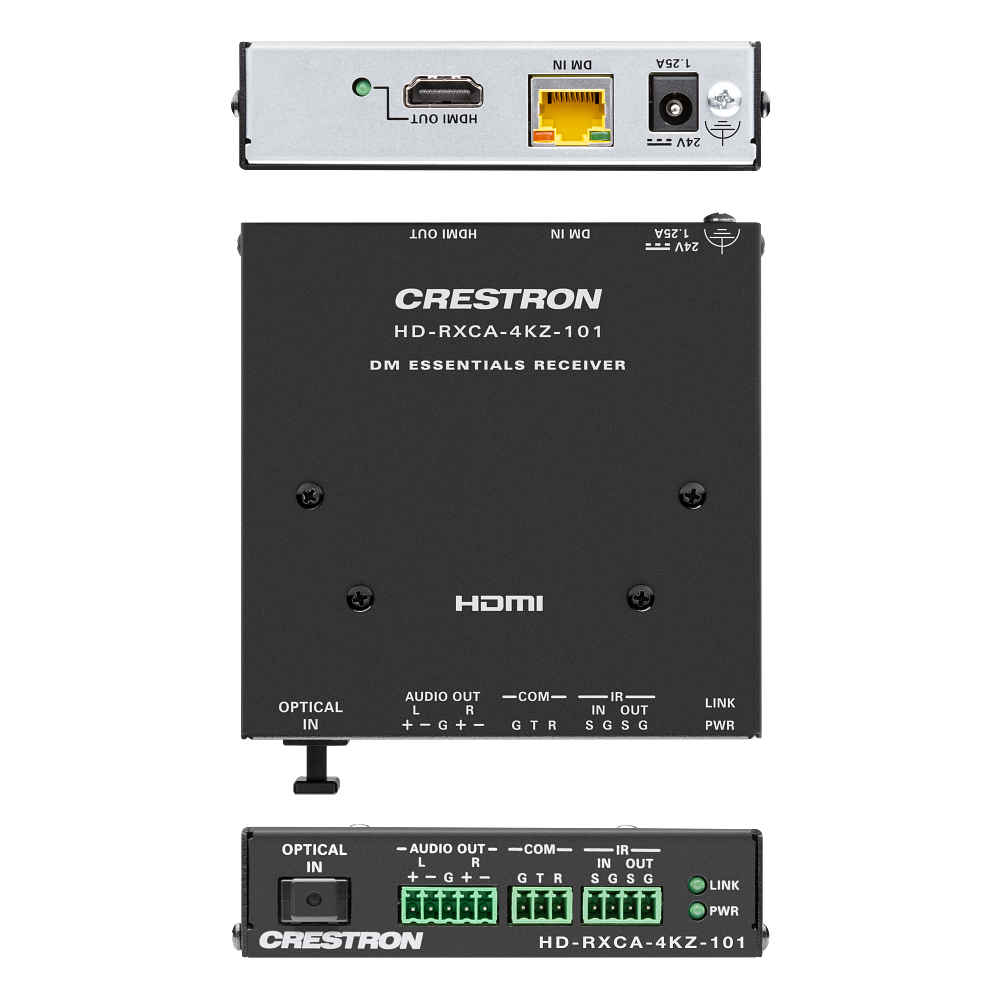

Crestron HD-RXCA-4KZ-101 DM Essentials 4K60 Receiver with Analog Audio

The HD-RXCA-4KZ-101 is a DM Essentials 4K60 4:4:4 receiver for HDMI, RS-232, IR and analog audio, working with a DM Essentials transmitter or a DMPS Essentials switcher. The analog audio output is the reason to choose it over the HD-RXC: program audio de-embedded at the display end can drive a local amplifier or a ceiling speaker system without a separate breakout.

Connect with CAT5e or better twisted pair (Crestron DM-CBL-8G or DM-CBL-ULTRA, sold separately). Cable lengths reach 230 ft (70 m) for 1080p, WUXGA and 2K signals, and less at UHD and 4K.

Dimensions	4.13 in. (105 mm) H x 4.18 in. (106 mm) W x 1.08 in. (27 mm) D
Input Signal Type	DM Essentials with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support
Output Signal Type	HDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support (DVI compatible)
HDMI	HDCP 2.3, EDID, CEC pass-through
IR IN/OUT	(1) 4-pin 3.5 mm detachable terminal block; Comprised of (1) IR input port and (1) IR output port...
LINK	(1) Green LED, indicates that a DM Essentials link is established.
Power Pack (Included)	Input: 100-240VAC; Output: 24VDC 2.5A; Model: PW-2420RU
Temperature	32 deg to 104 deg F (0 deg to 40 deg C)
