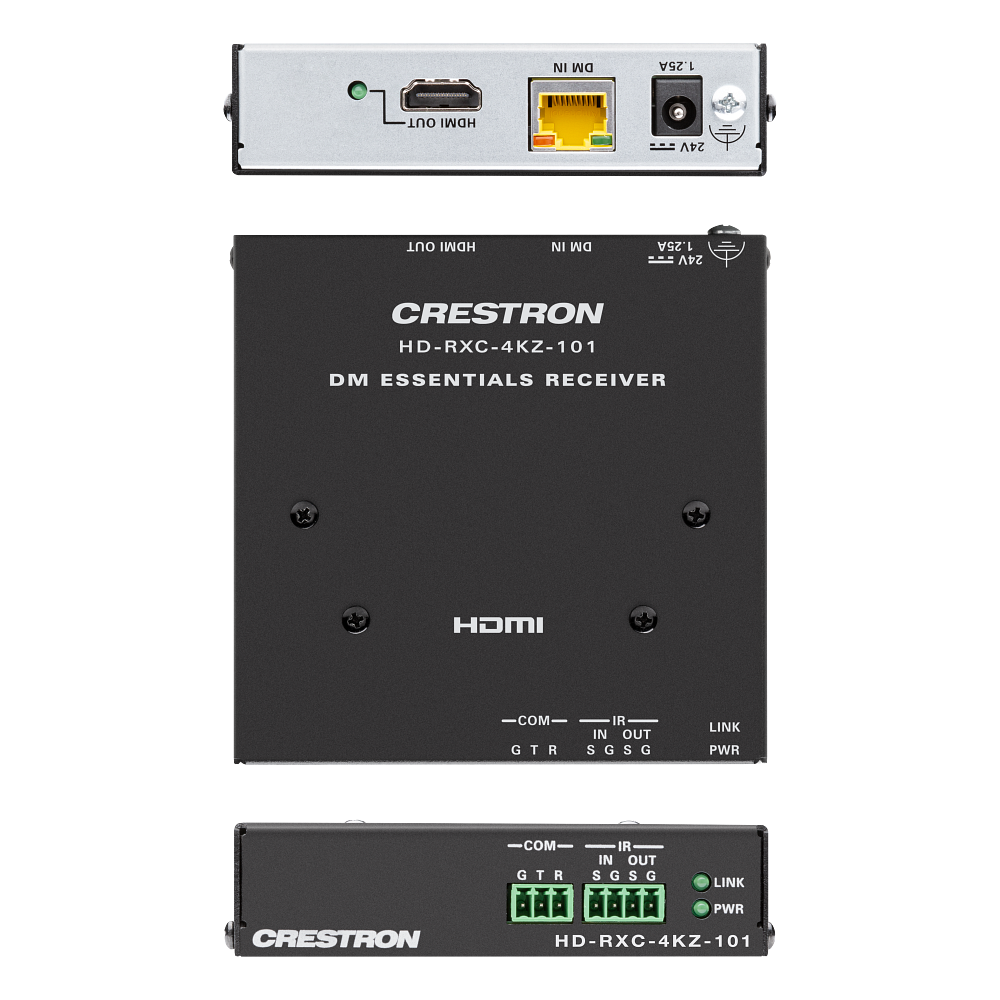

Crestron HD-RXC-4KZ-101 DM Essentials 4K60 Receiver, HDMI, RS-232, IR

The HD-RXC-4KZ-101 is a DM Essentials 4K60 4:4:4 receiver that pairs with a DM Essentials transmitter or a DMPS Essentials switcher to carry HDMI, RS-232 and IR over one CATx cable. The control ports matter as much as the video: the RS-232 and IR outputs at the display end are how the system powers and switches the screen.

Run CAT5e or better (Crestron DM-CBL-8G or DM-CBL-ULTRA, sold separately). Up to 230 ft (70 m) is supported for 1080p, WUXGA and 2K, and a shorter distance at UHD and 4K. Order the surface unit or the 1-gang black wall plate version to suit the finish at the display.

  • Dimensions4.13 in. H x 4.18 in. W x 1.08 in. D
  • Input Signal TypeDM Essentials with HDR10, HDR10+, Dolby Vision, Deep Color
  • Output Signal TypeHDMI with HDR10, HDR10+, Dolby Vision, Deep Color
  • Power Pack (Included)Input: 100-240VAC; Output: 24VDC 2.5A; Model: PW-2420RU
  • Weight11.82 oz
Dimensions4.13 in. (105 mm) H x 4.18 in. (106 mm) W x 1.08 in. (27 mm) D
Input Signal TypeDM Essentials with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support
Output Signal Type with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support (DVI compatible)
HDMIHDCP 2.3, EDID, CEC pass-through

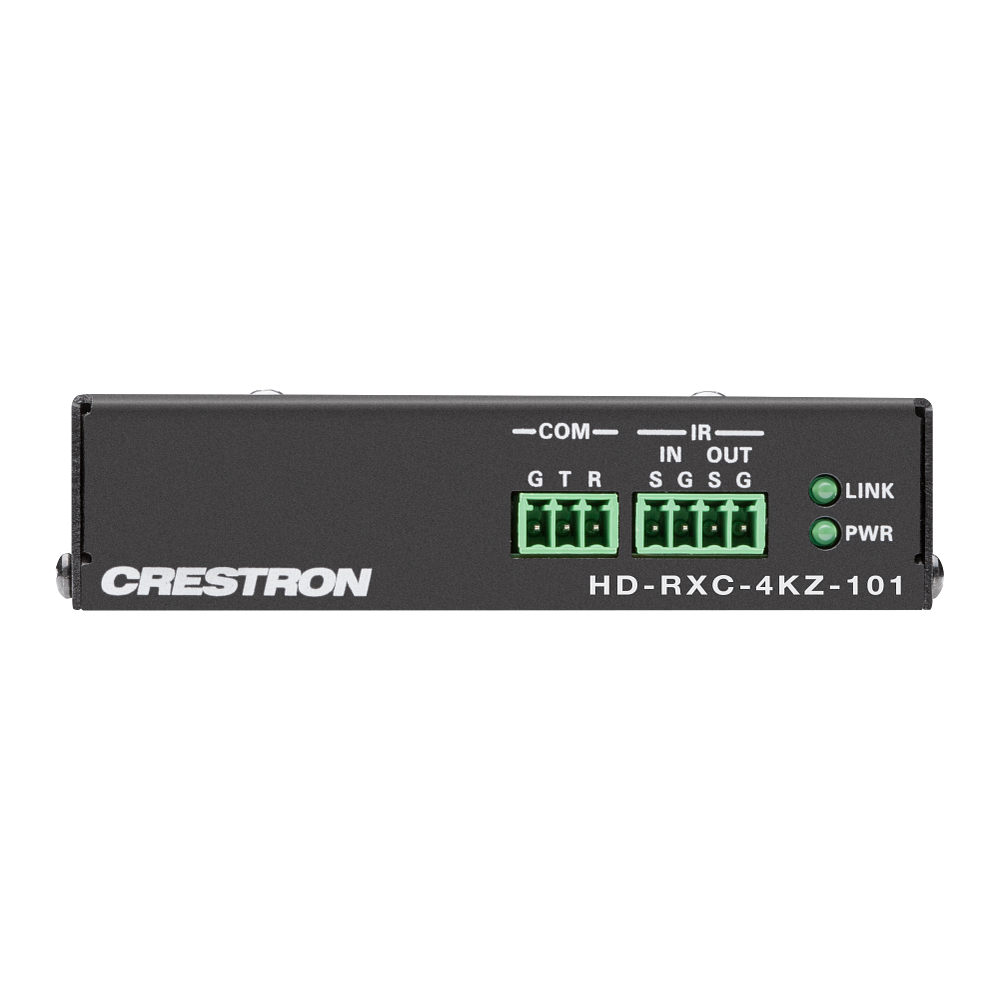

IR IN/OUT(1) 4-pin 3.5 mm detachable terminal block; Comprised of (1) IR input port and (1) IR output port...
LINK(1) Green LED, indicates that a DM Essentials link is established.
Power Pack (Included)Input: 100-240VAC; Output: 24VDC 2.5A; Model: PW-2420RU
Temperature32 deg to 104 deg F (0 deg to 40 deg C)
Weight11.82 oz (335 g)
