Crestron HD-TXU-4KZ-211-CHGR DM Essentials 4K60 Transmitter with USB and Charging

The HD-TXU-4KZ-211-CHGR is a DM Essentials 4K60 4:4:4 transmitter with an HDMI input and a USB-C input, switching between them automatically and extending HDMI or USB-C DisplayPort video along with USB 2.0 data to an HD-RXU-4KZ series receiver. The room peripherals stay with the guest device rather than with the rack.

It also charges over the USB-C connection while the laptop presents. Use CAT5e or better twisted pair (Crestron DM-CBL-8G or DM-CBL-ULTRA, sold separately) between transmitter and receiver.

Dimensions1.20 in. (30 mm) H x 8.52 in. (216 mm) W x 6.48 in. (165 mm) D
Input Signal TypesHDMI (DVI and Dual-Mode DisplayPort interface compatible) and DisplayPort over USB-C (DisplayPort Alt Mode) with HDR10, HDR10+, Dolby Vision, Deep...
Output Signal TypeDM Essentials with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support
HDMIHDCP 2.3, EDID, CEC
SERVICE(1) USB 2.0 Type-A connector, female; Used for firmware loading and configuration management...

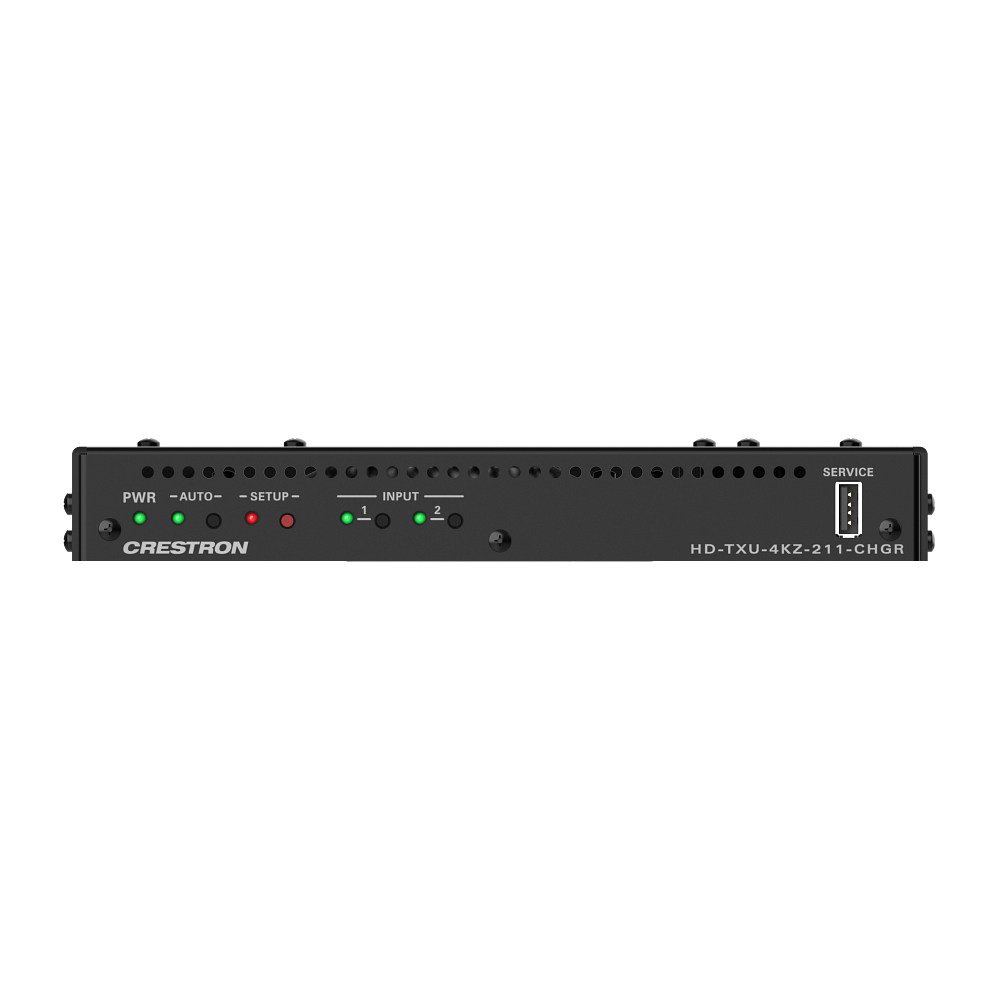

PWR(1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is...
Power Pack (Included)Input: 100-240VAC; Output: 24VDC 7.5A; Model: PW-2475DU
Temperature32 deg to 104 deg F (0 deg to 40 deg C)

Resources and support

Compatibility helpCall (201) 791-1400 to confirm signal format, connections, and workflow fit. Crestron product familyContinue browsing the full Crestron range we carry.
