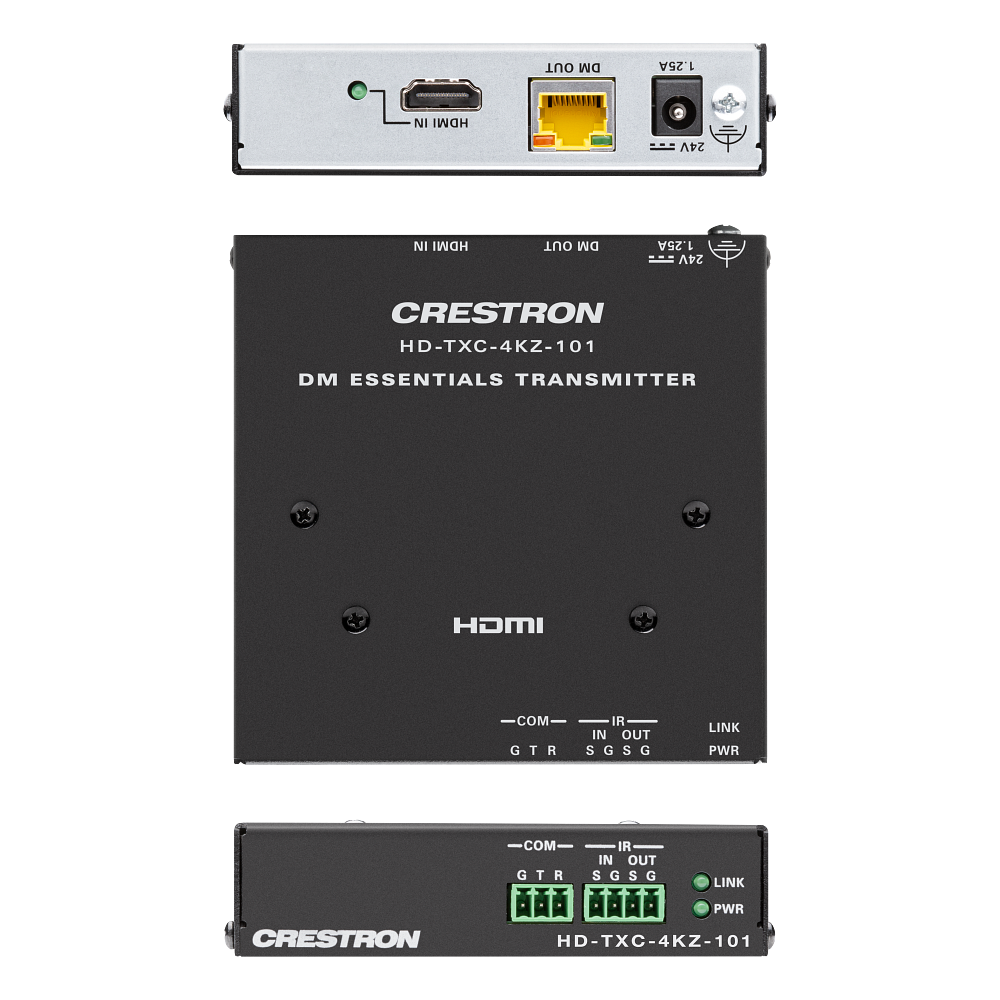

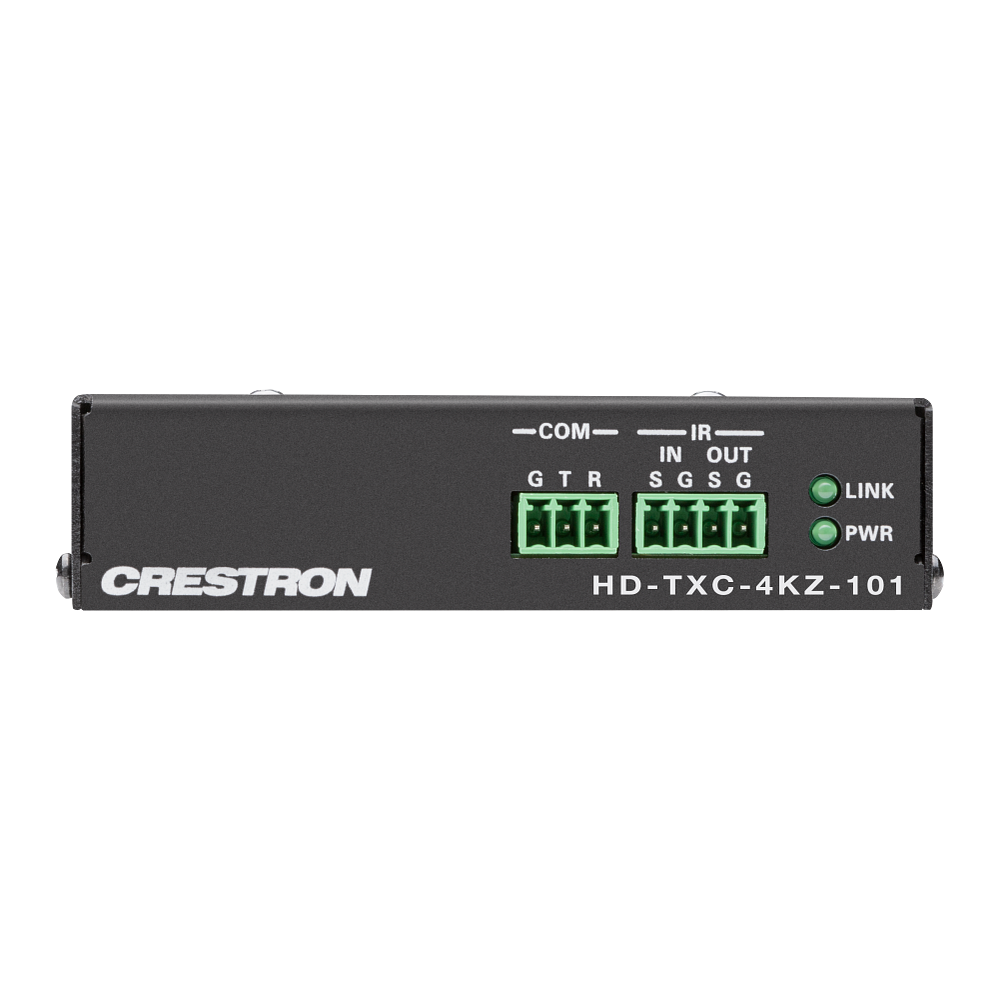

Crestron HD-TXC-4KZ-101 DM Essentials 4K60 Transmitter for HDMI, RS-232 and IR

The HD-TXC-4KZ-101 is a DM Essentials 4K60 4:4:4 transmitter carrying HDMI, RS-232 and IR to a DM Essentials receiver or DMPS Essentials switcher over a single twisted pair. The RS-232 and IR channels ride with the video, so control reaches the source position without a second cable.

Use CAT5e or better (Crestron DM-CBL-8G or DM-CBL-ULTRA, sold separately): up to 230 ft (70 m) for 1080p, WUXGA and 2K, and less at UHD and 4K. Three versions cover the finish, a surface transmitter and 1-gang wall plates in black or white.

Dimensions	4.13 in. (105 mm) H x 4.18 in. (106 mm) W x 1.08 in. (27 mm) D
Input Signal Type	HDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support (DVI and Dual-Mode DisplayPort interface compatible)
Output Signal Type	DM Essentials with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support
HDMI	HDCP 2.3, EDID, CEC pass-through
IR IN/OUT	(1) 4-pin 3.5 mm detachable terminal block; Comprised of (1) IR input port and (1) IR output port...
LINK	(1) Green LED, indicates that a DM Essentials link is established.
Power Pack (Included)	Input: 100-240VAC; Output: 24VDC 2.5A; Model: PW-2420RU
Temperature	32 deg to 104 deg F (0 deg to 40 deg C)
