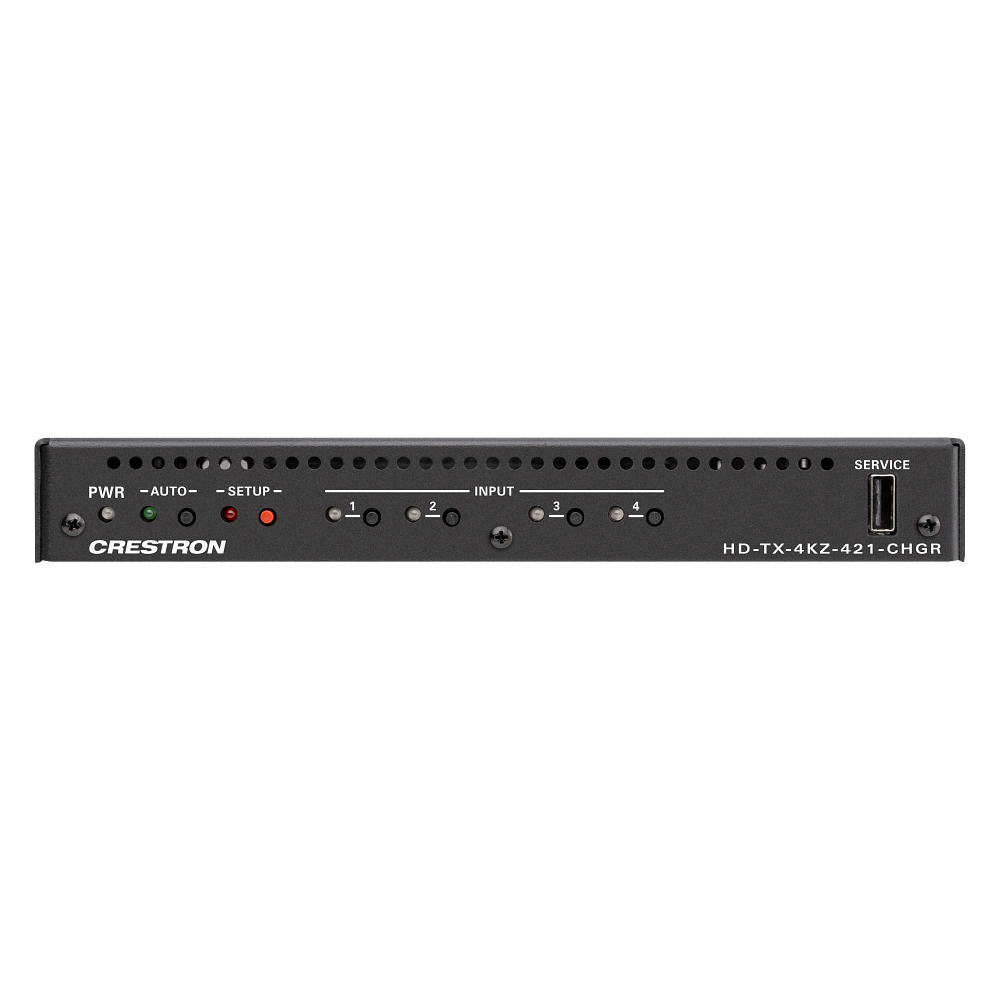

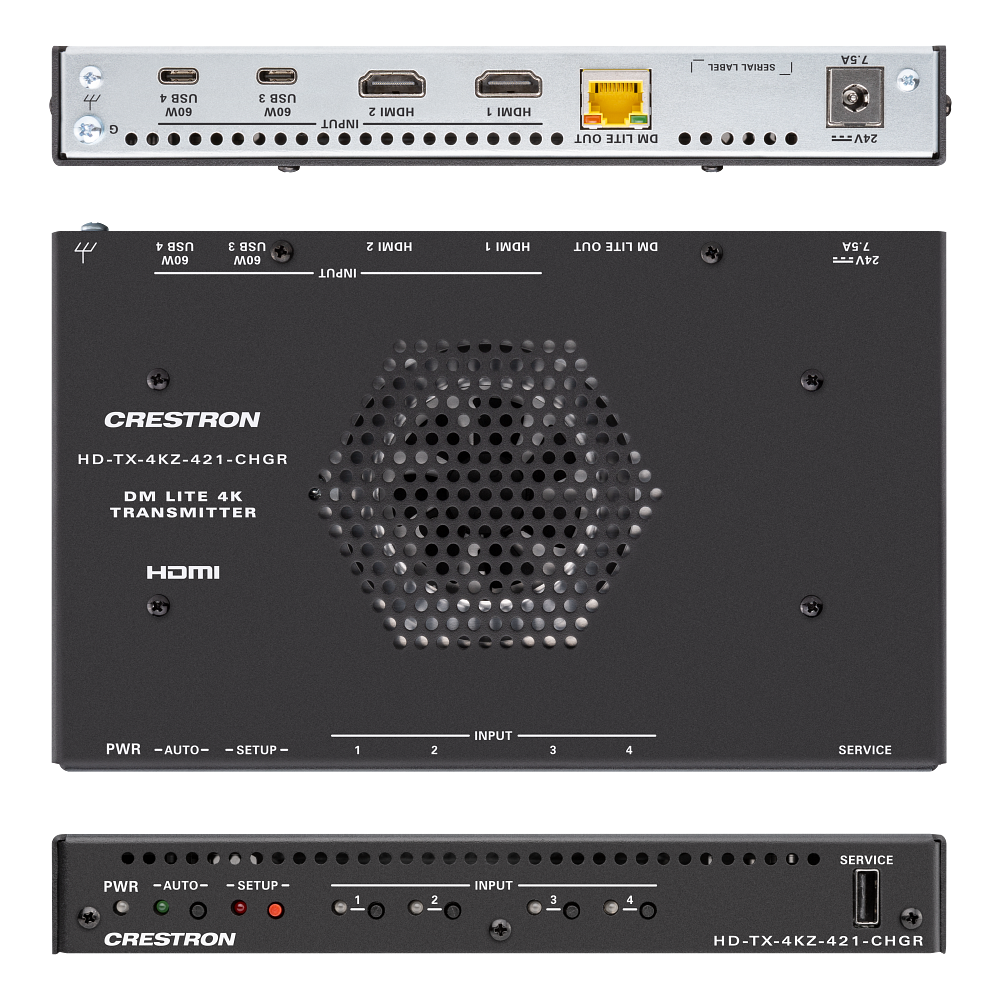

Crestron HD-TX-4KZ-421-CHGR DM Essentials 4K60 Transmitter with Device Charging

The HD-TX-4KZ-421-CHGR is a DM Essentials 4K60 4:4:4 transmitter with both HDMI inputs and USB-C inputs using DisplayPort Alt Mode, switching automatically and sending the result to a DM Essentials receiver or DMPS Essentials switcher. Charging is the difference: the USB-C connection powers the connected laptop while it presents.

Connect with CAT5e or better twisted pair (Crestron DM-CBL-8G or DM-CBL-ULTRA, sold separately). It suits long meetings in rooms with no power at the table, where a guest laptop otherwise runs flat mid-session.

Dimensions1.20 in. (30 mm) H x 8.52 in. (216 mm) W x 5.23 in. (133 mm) D
Input Signal TypesHDMI (DVI and Dual-Mode DisplayPort interface compatible) and DisplayPort over USB-C (DisplayPort Alt Mode) with HDR10, HDR10+, Dolby Vision, Deep...
Output Signal TypeDM Essentials with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support
HDMIHDCP 2.3, EDID, CEC pass-through
SERVICE(1) USB 2.0 Type-A connector, female; Used for firmware loading, configuration management, or as a USB host port for one TT-100 series cable caddy...
PWR(1) Bicolor amber/green LED, indicates that power is being applied to the device; Amber indicates that the device is booting...
Power Pack (Included)Input: 100-240VAC; Output: 24VDC 7.5A; Model: PW-2475DU
Temperature32 deg to 104 deg F (0 deg to 40 deg C)
