Crestron HD-TXU-4KZ-111 DM Essentials 4K60 USB-C Transmitter with USB 2.0

The HD-TXU-4KZ-111 is a DM Essentials 4K60 4:4:4 transmitter whose USB-C input carries a DisplayPort AV signal and USB 2.0 data together to an HD-RXU-4KZ series receiver. That is what makes a bring-your-own-device room work: the guest laptop gets the room camera, microphone and touch display through the same connector it uses to present.

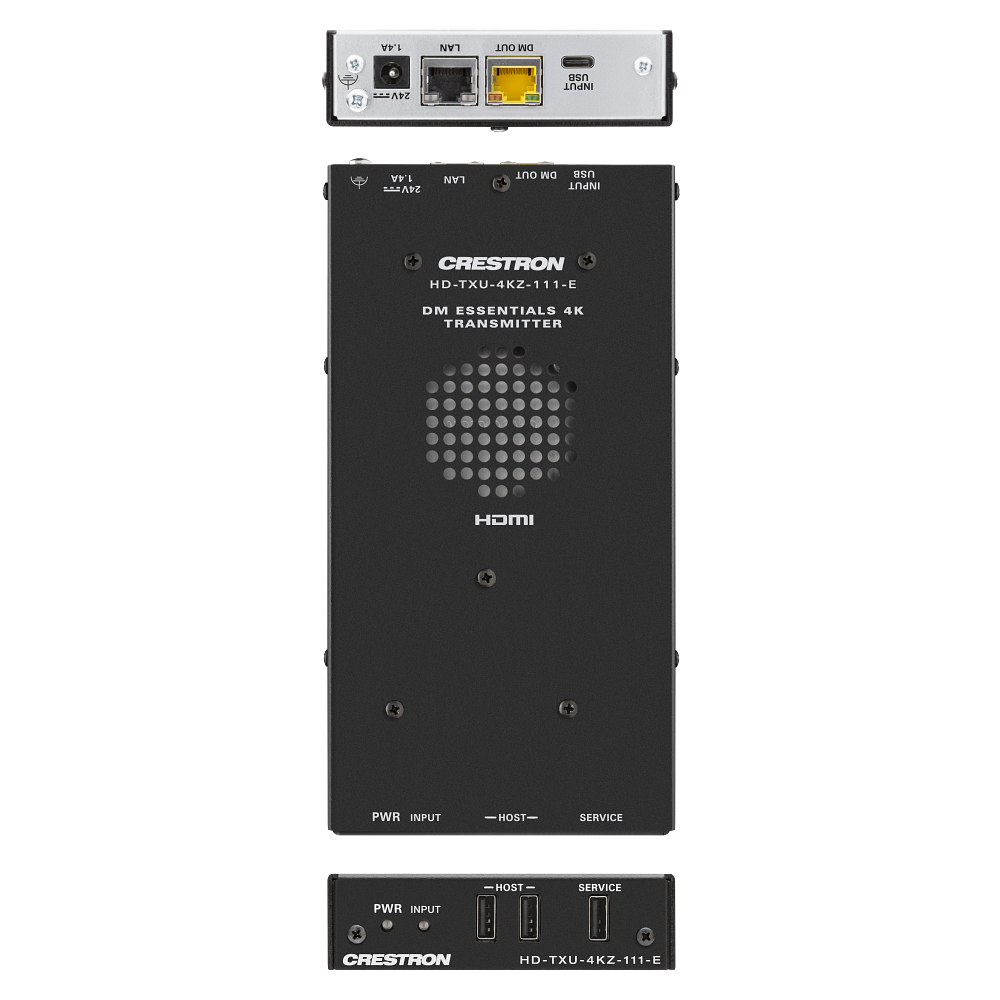

A CAT5e or better twisted pair joins the transmitter to the receiver. Three versions are offered: the -E surface transmitter, which adds an Ethernet port, and 2-gang wall plates in black or white.

Dimensions1.20 in. (30 mm) H x 4.19 in. (106 mm) W x 7.94 in. (202 mm) D
Input Signal TypeDisplayPort over USB-C (DisplayPort Alt Mode) with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support
Output Signal TypeDM Essentials with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support
USB-CHDCP 2.3, EDID, CEC pass-through; USB 2.0 up to 300 Mbps
USB INPUT(1) USB Type-C connector, female; Digital video/audio input using DisplayPort Alt Mode; USB 2.0 data support

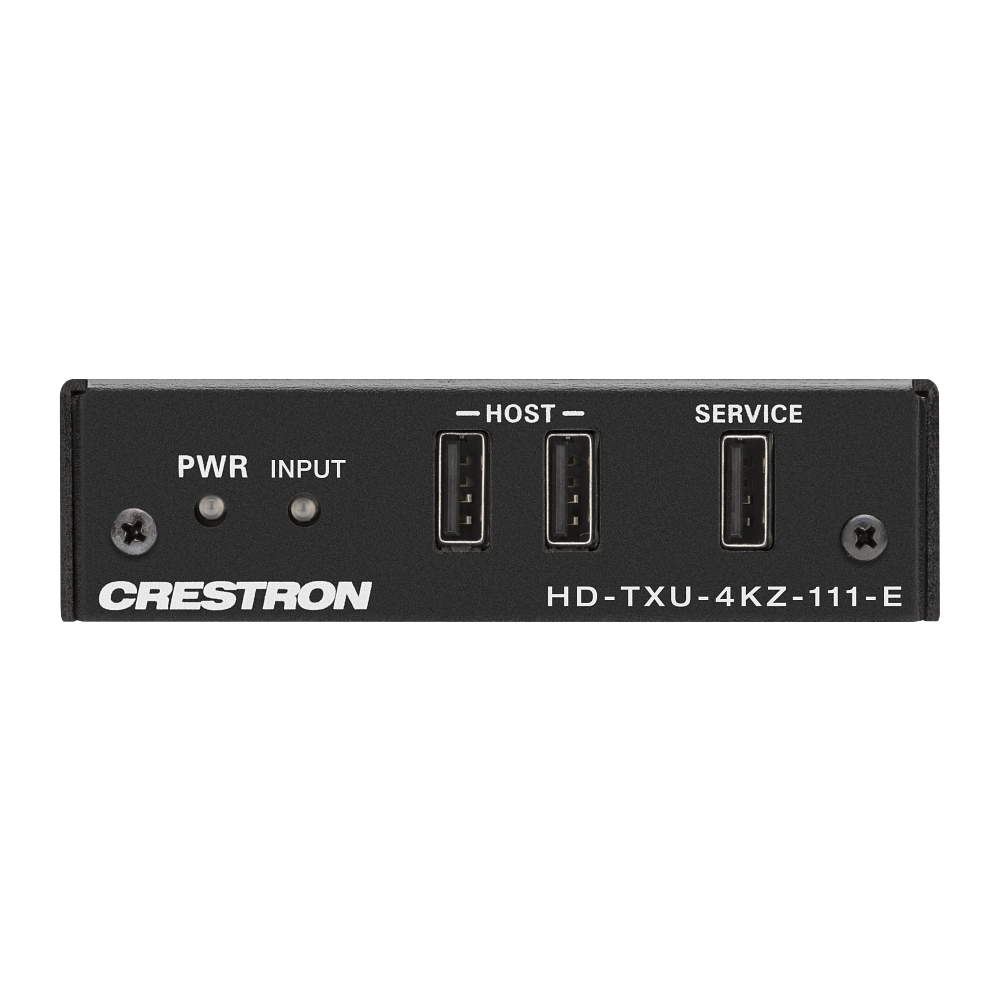

PWR(1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is...
Power Pack (Included)Input: 100-240VAC; Output: 24VDC 2.5A; Model: PW-2420RU
Temperature32 deg to 104 deg F (0 deg to 40 deg C)
