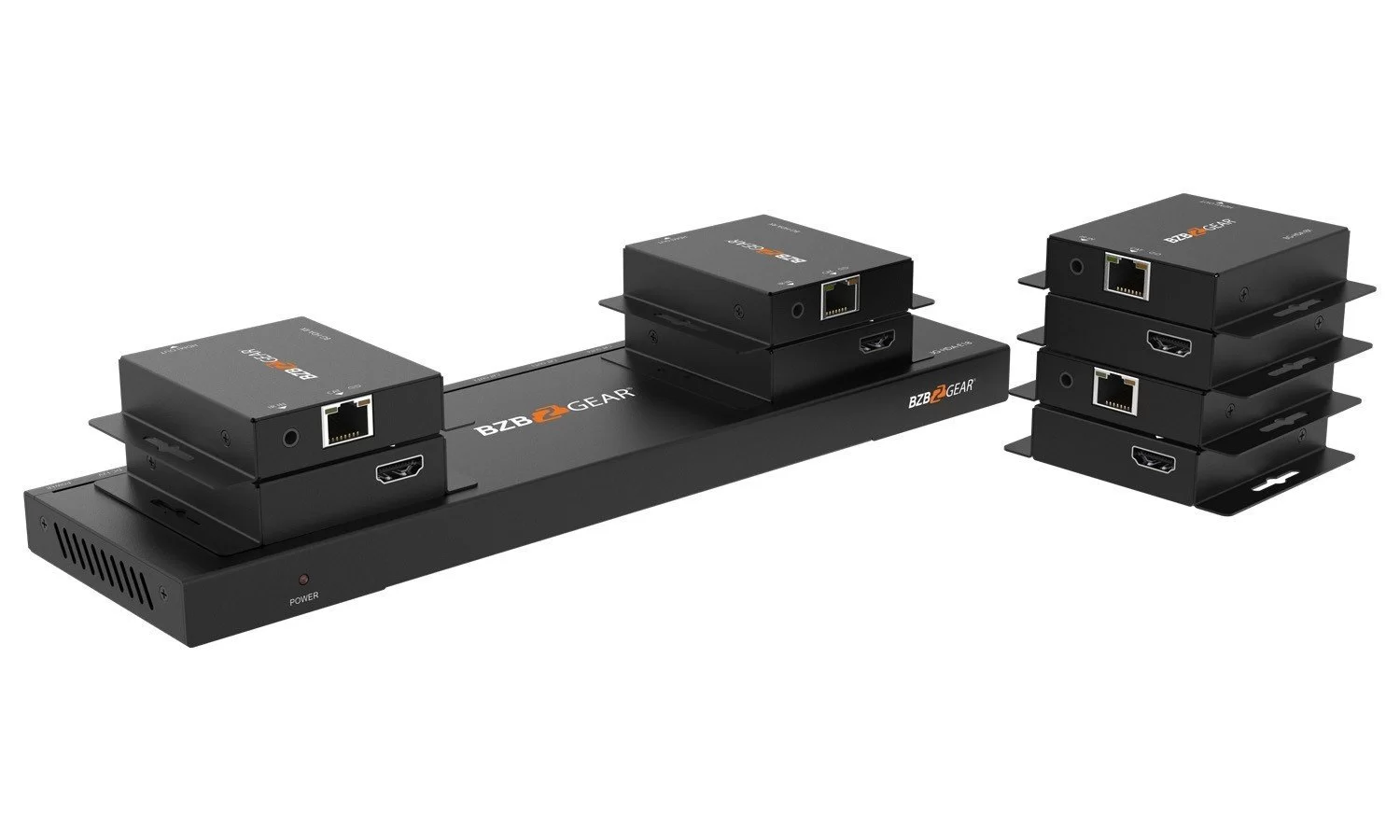

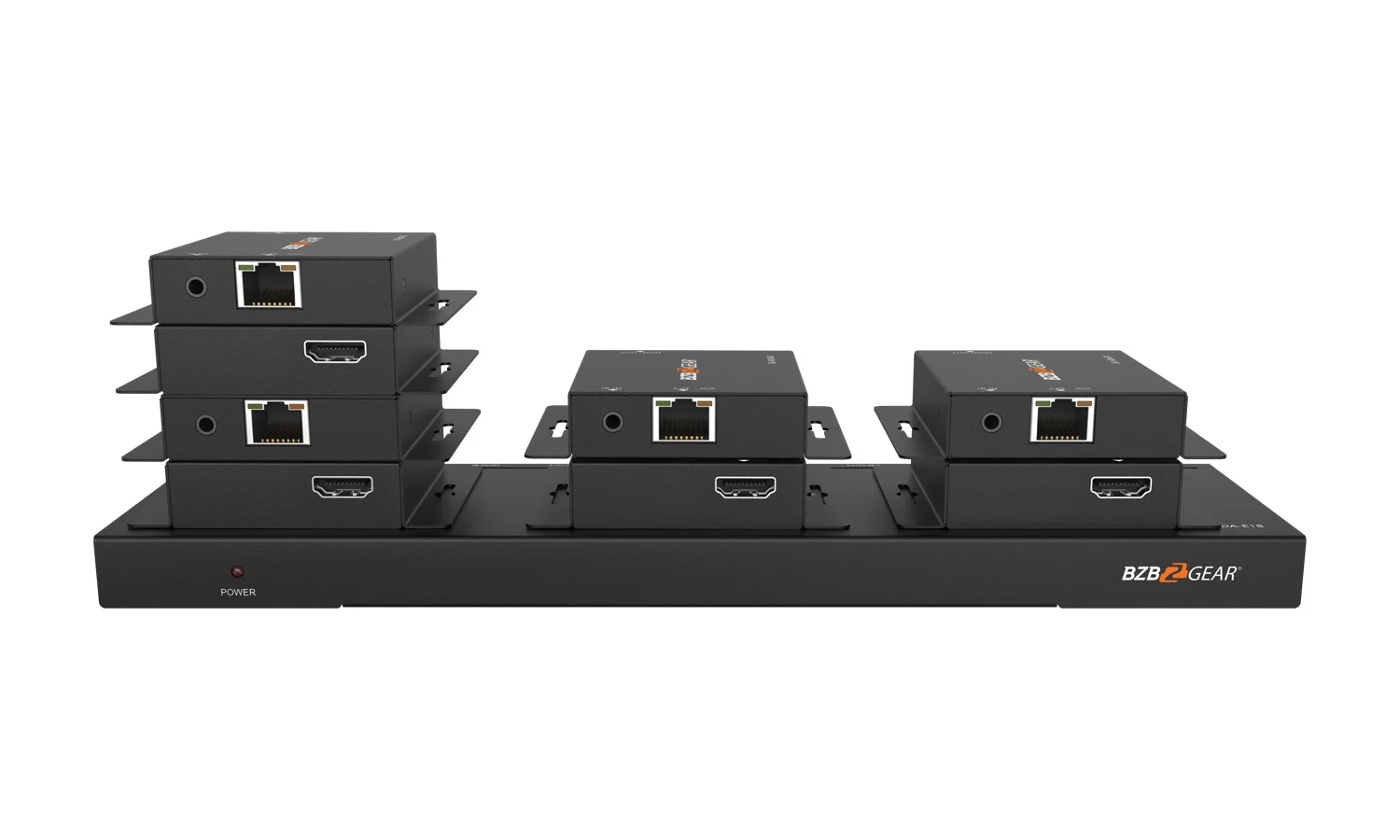

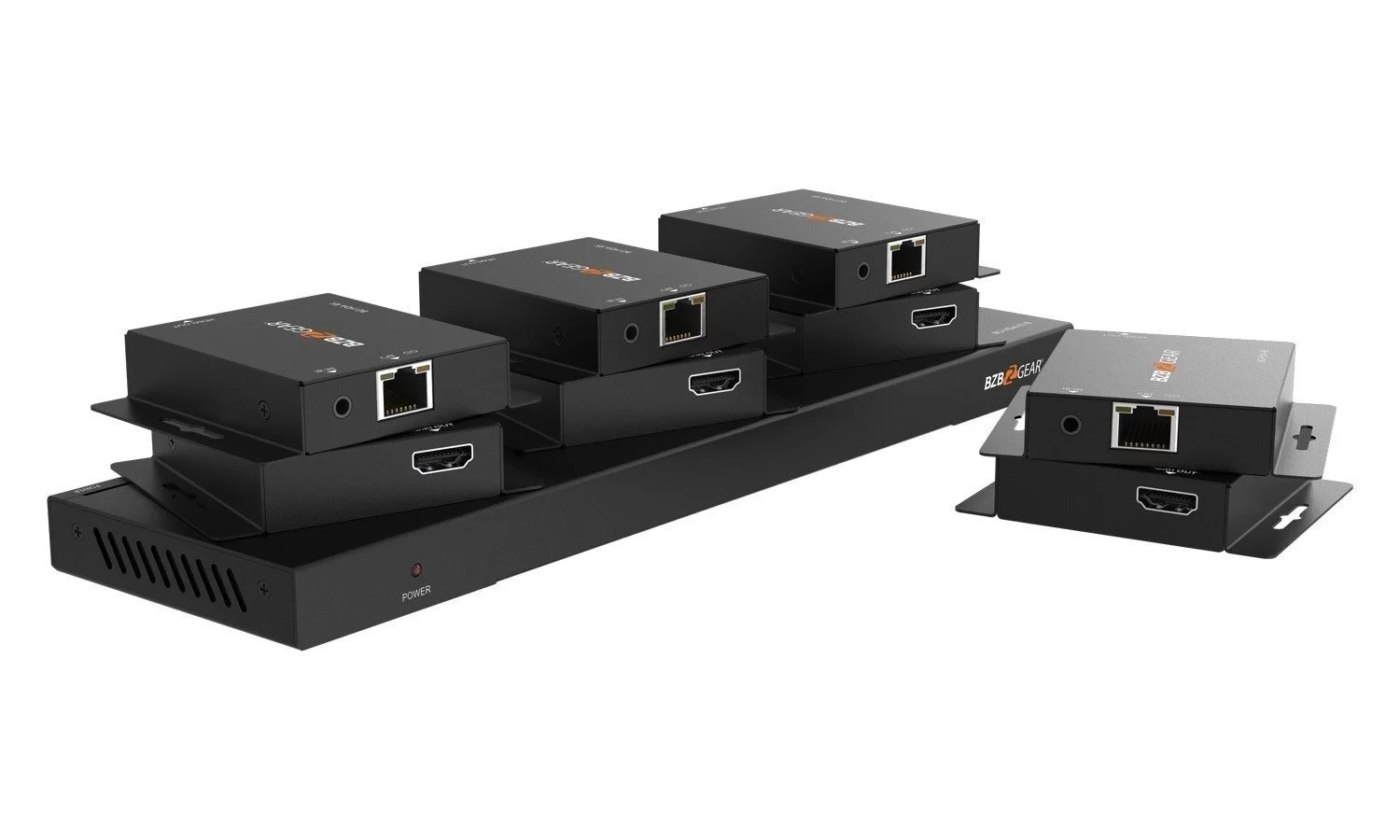

BZBGear BG-HDA-E18 1x8 HDMI Splitter Kit with Eight Receivers
The BG-HDA-E18 is the eight-output version of BZBGear's long-range HDMI splitter kit. One source goes to eight displays over Cat6, at 70 m for 1080p60 or 50 m for 4K30 4:4:4, with all eight receivers in the box.

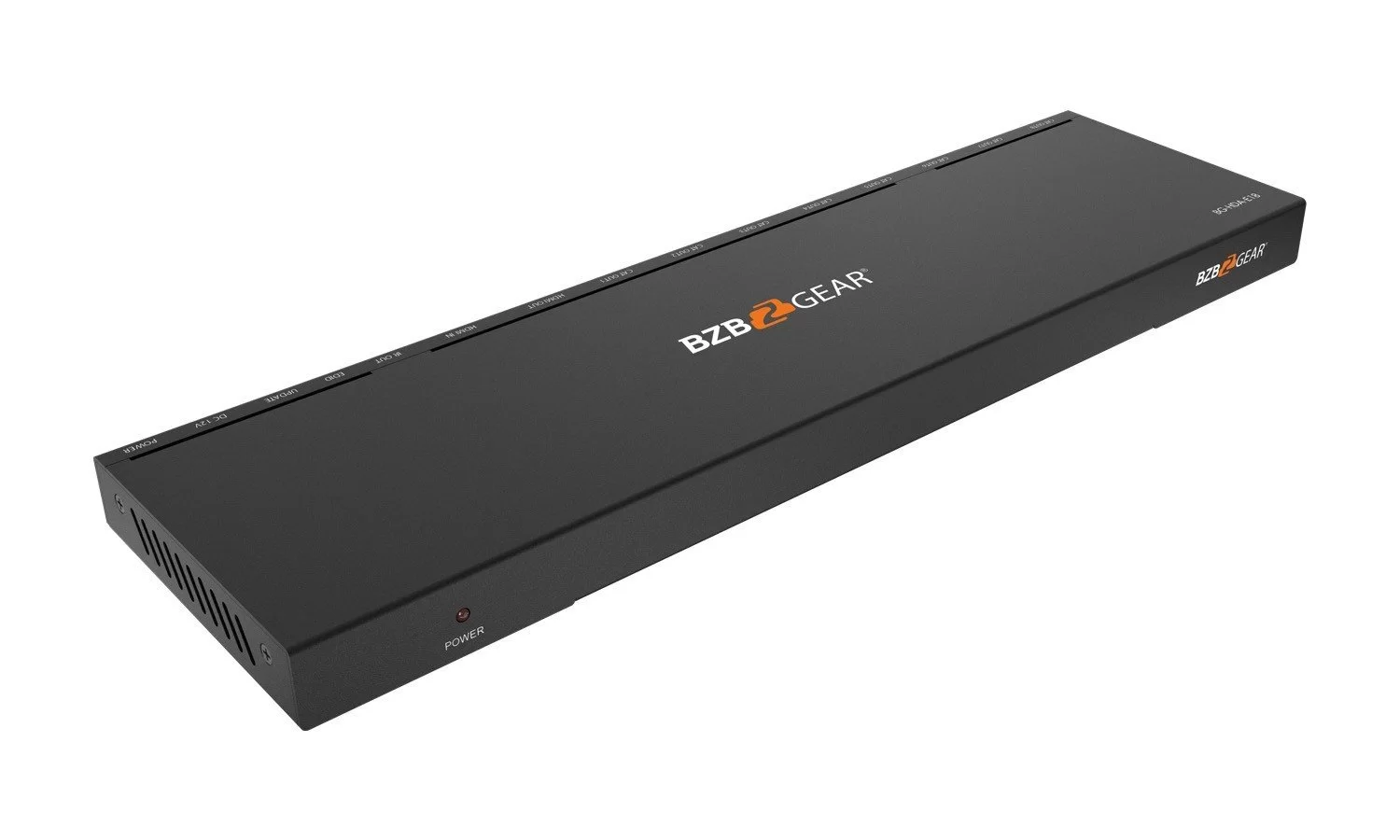

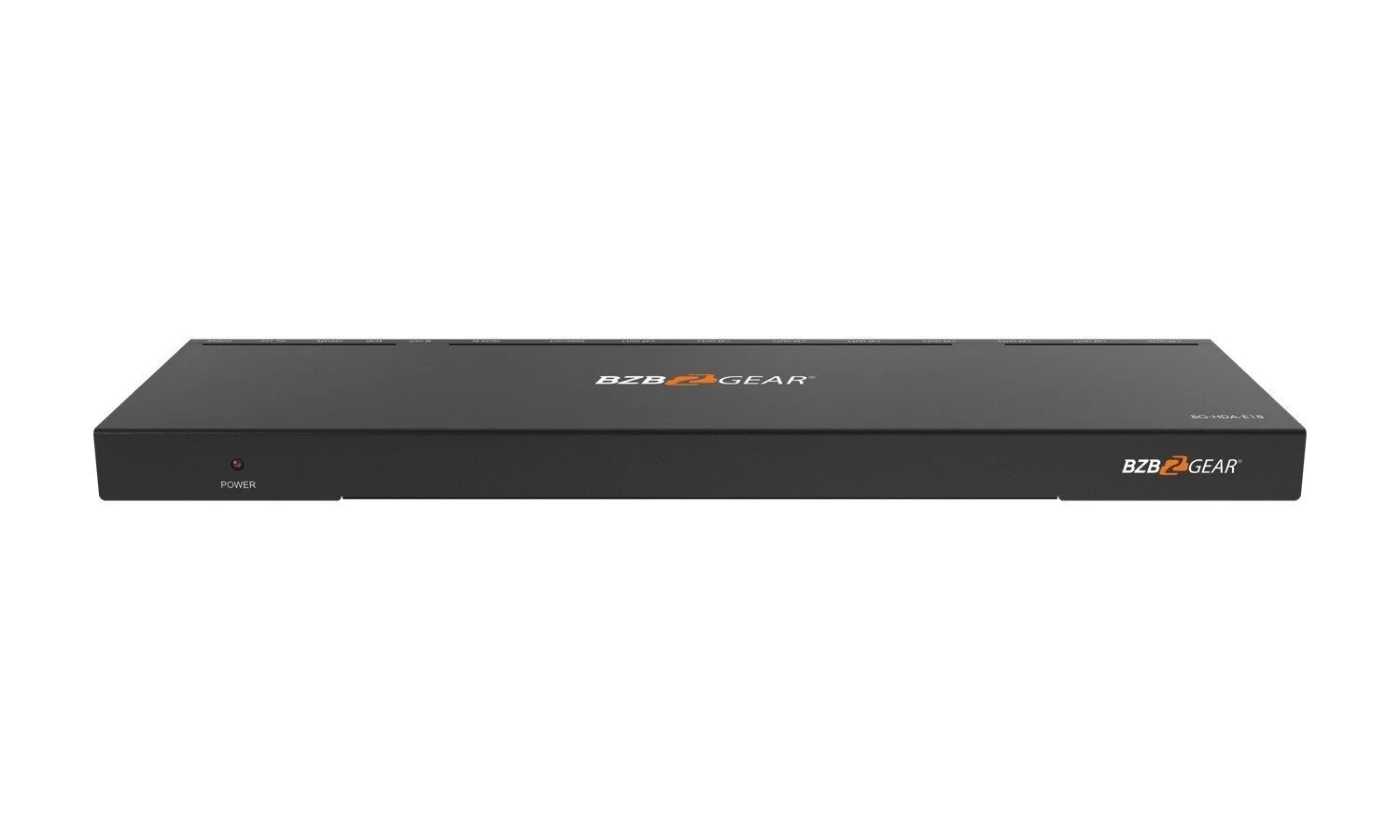

An HDMI loop output on the transmitter keeps a local monitor live. The link is 297 MHz and 10.2 Gbps with HDCP 1.4, and LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio pass through. The transmitter is 295 mm wide in a metal case; each receiver weighs about 130 g and takes an IR input for control back to the source.
| HDMI Compliance | HDMI 1.4 |
|---|---|
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 297MHz/10.2Gbps |
| Video Resolution | 480i ~1080p@50/60Hz, 4Kx2K@30Hz (4:4:4) |
| Transmission Distance | 1080P@60 - 70M, 4K@30 - 50M |
| Audio Formats | LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz) |
| Color Space | RGB, YCbCr_4:4:4/4:2:2, YUV_4:2:0 |
