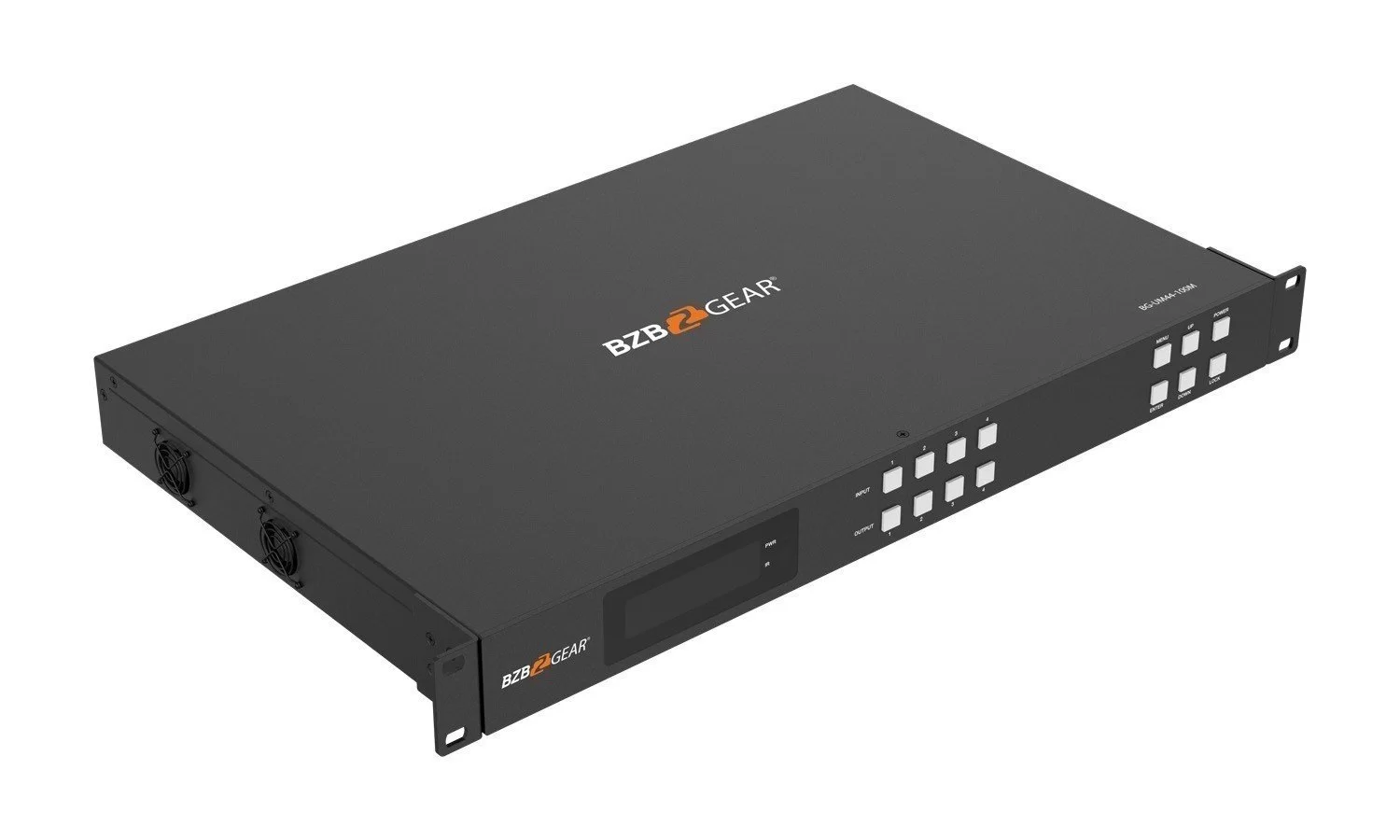

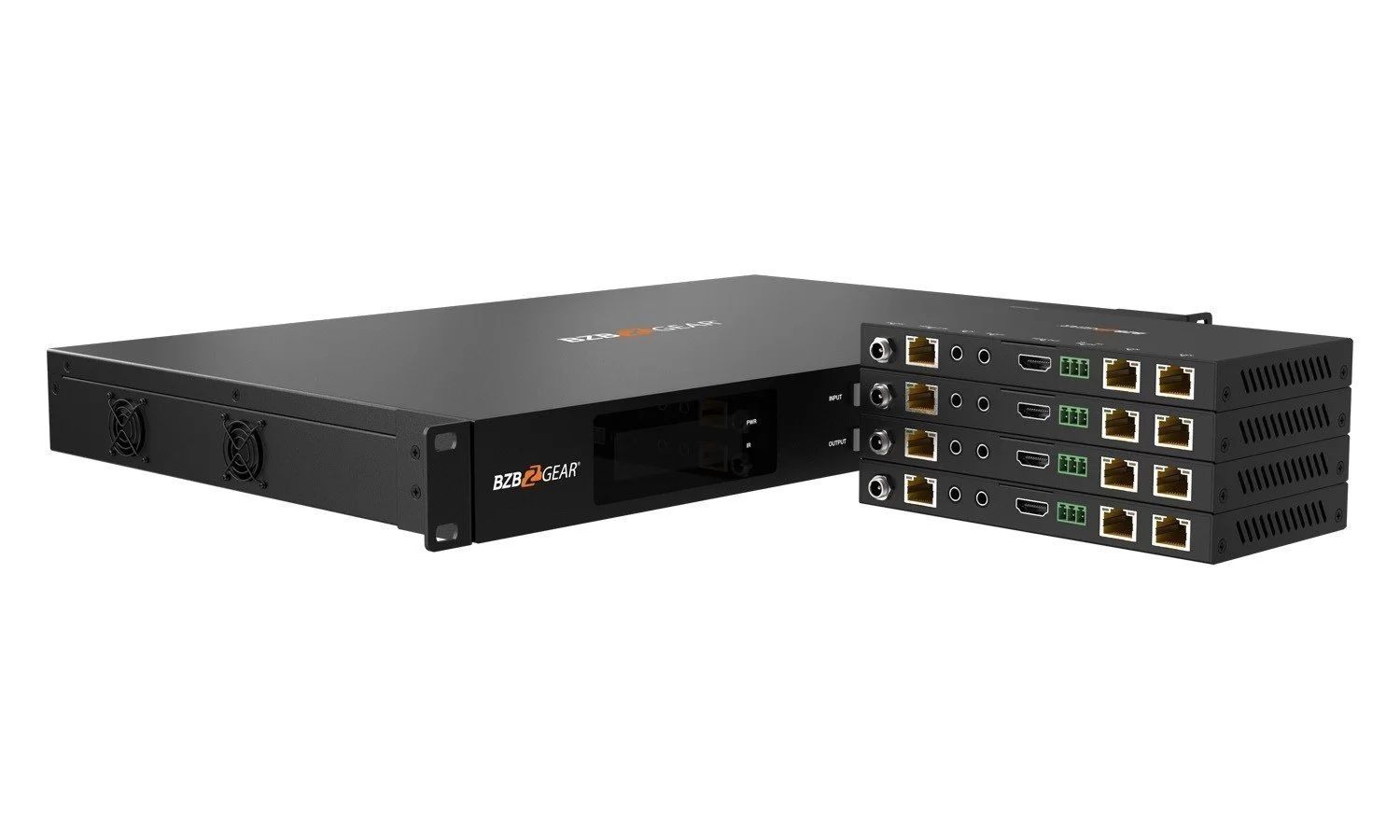

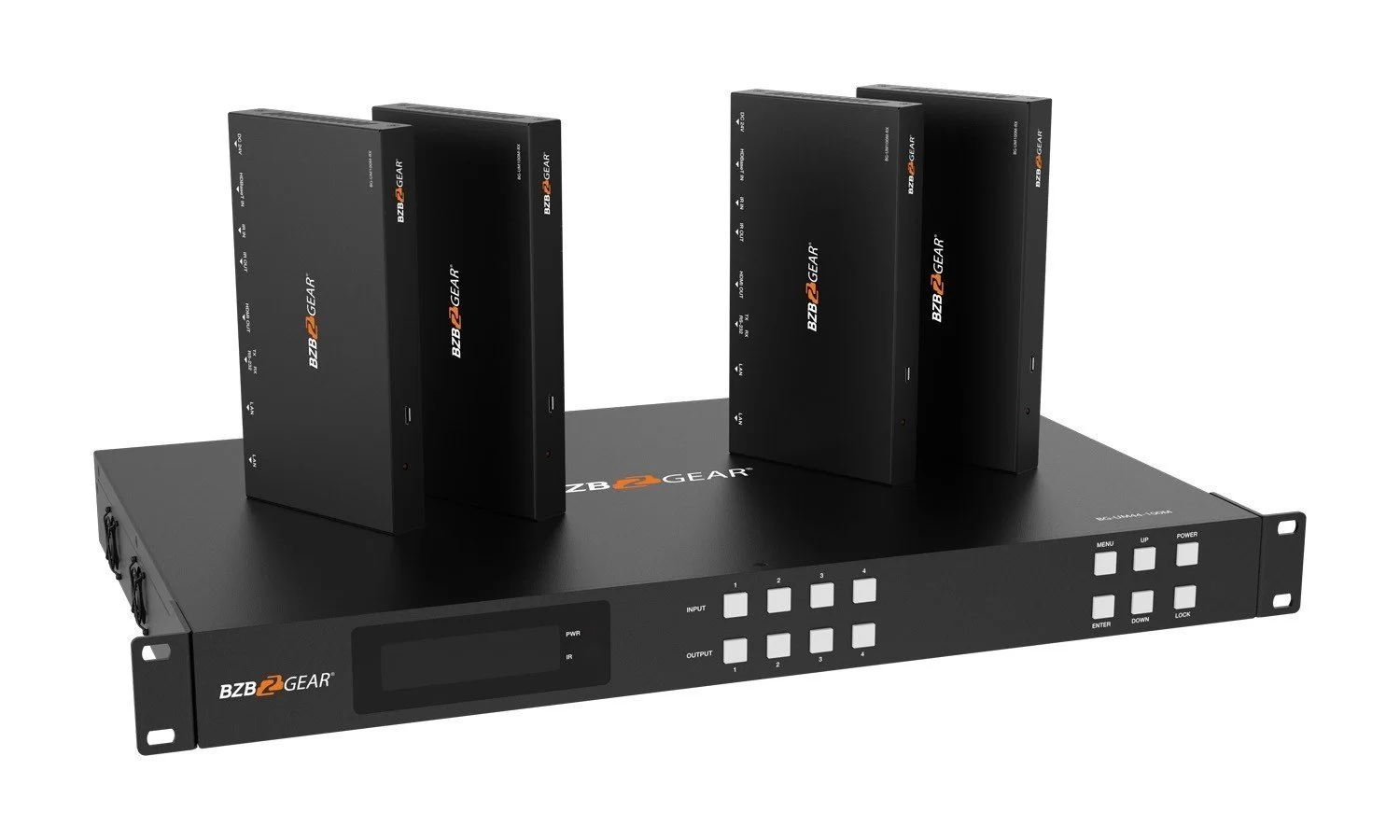

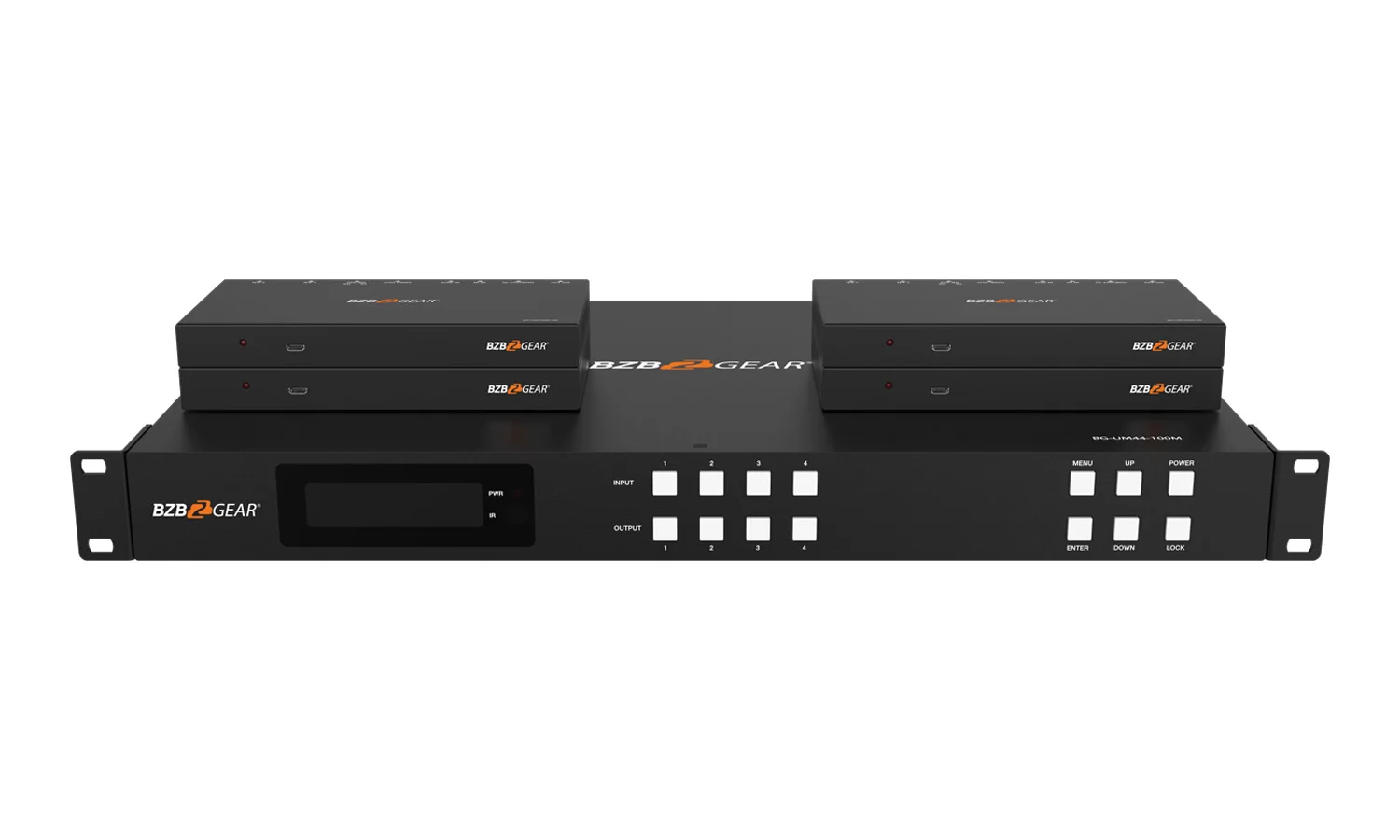

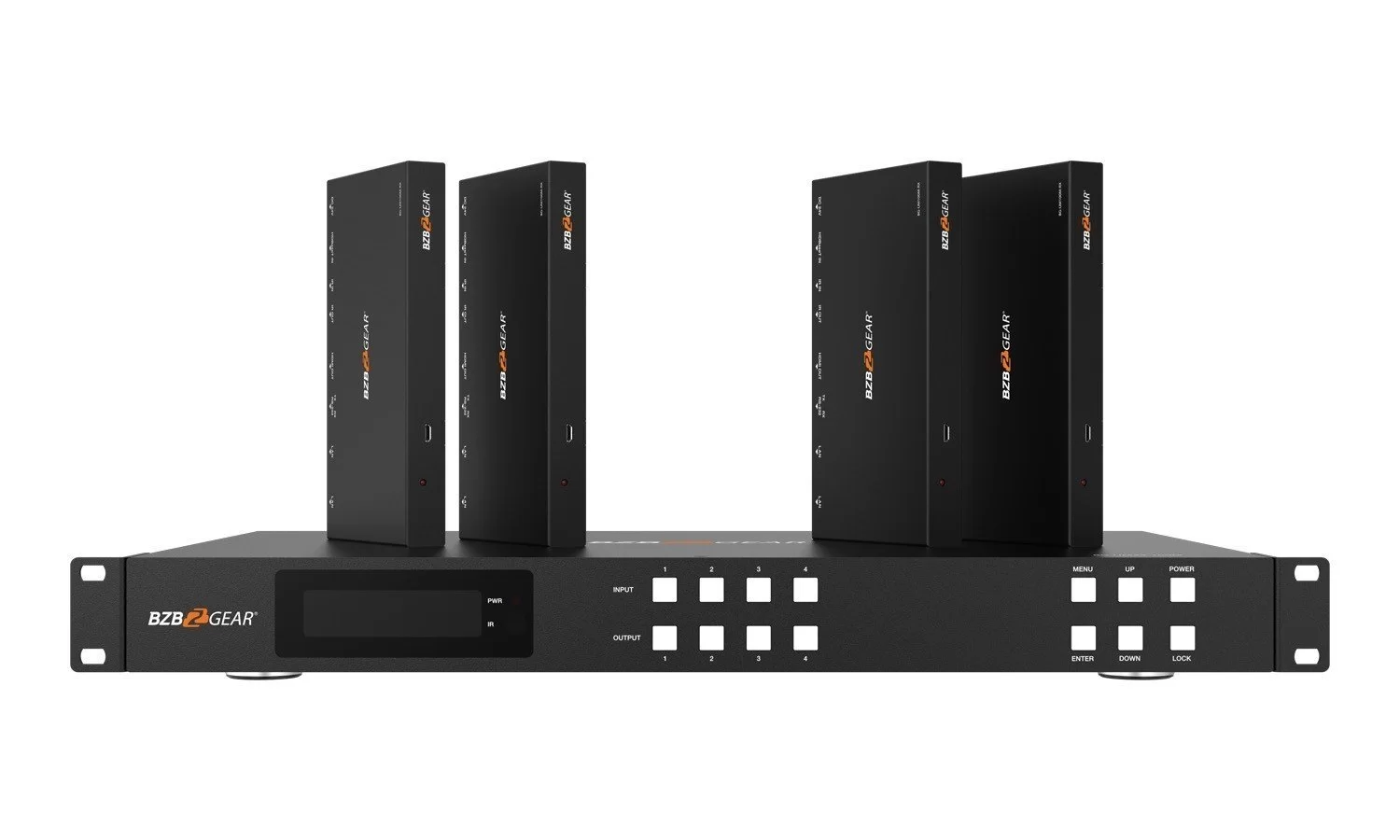

BZBGear BG-UM44-100M-KIT 4x4 HDBaseT Matrix Kit with Four Receivers

The BG-UM44-100M-KIT is a 4x4 4K matrix with four HDBaseT outputs and four mirrored HDMI outputs, so the same four sources reach up to eight displays. HDBaseT carries uncompressed video to 100 m over Cat6 with the four receivers included.

Ethernet passes through to every receiver, which saves running a second network drop to each display position, and bi-directional IR lets the rack and the room control each other. Audio is matrixed independently of video on coax and analog outputs, and ARC brings TV sound back. Video is 4K60 4:4:4 at 18 Gbps with HDCP 2.2, carrying Dolby Vision, HDR10+ and HLG. Control is over TCP/IP or RS-232.
