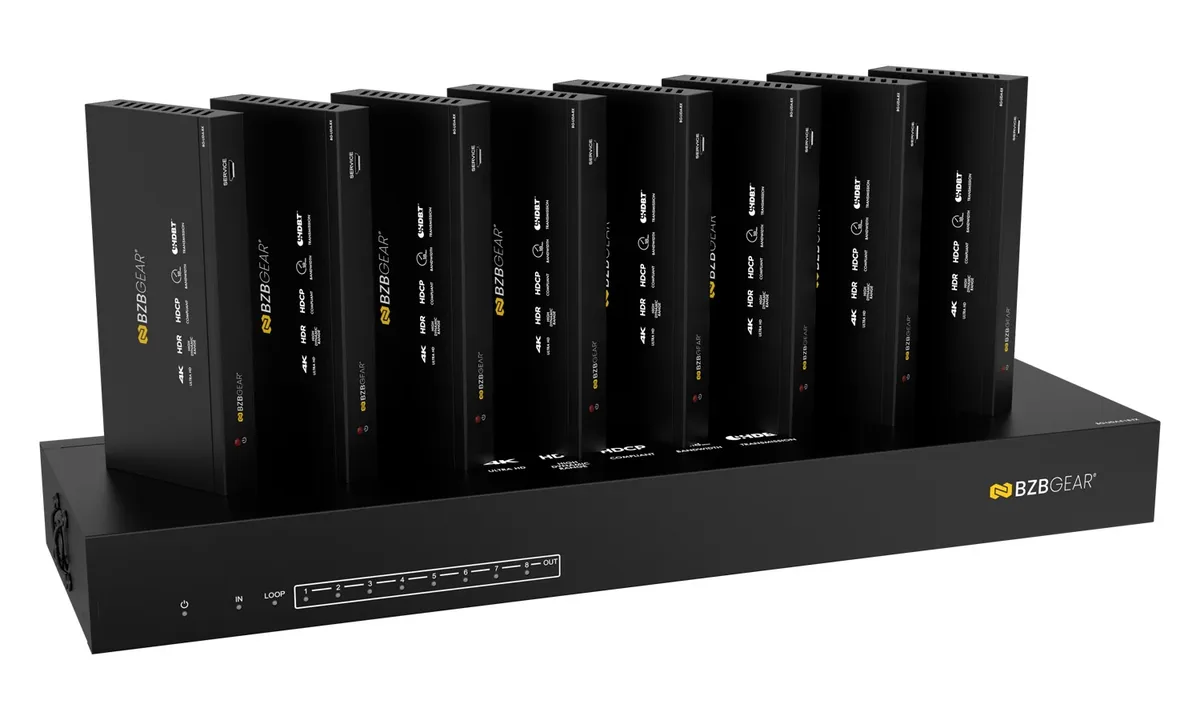

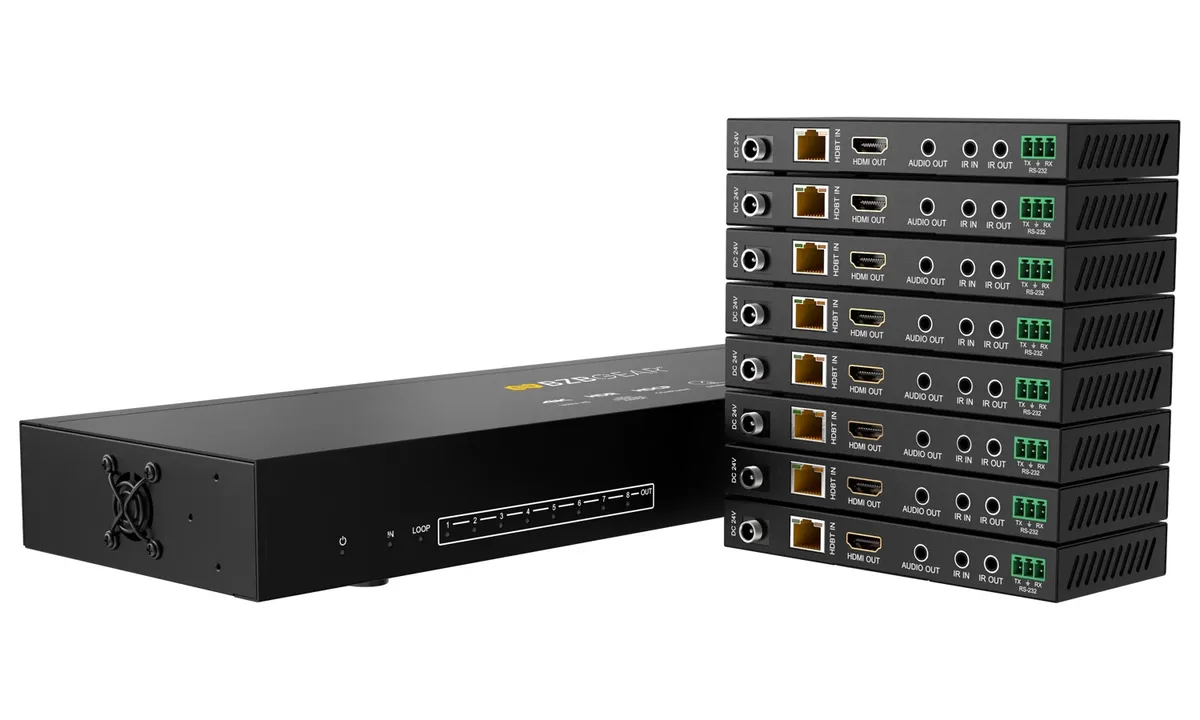

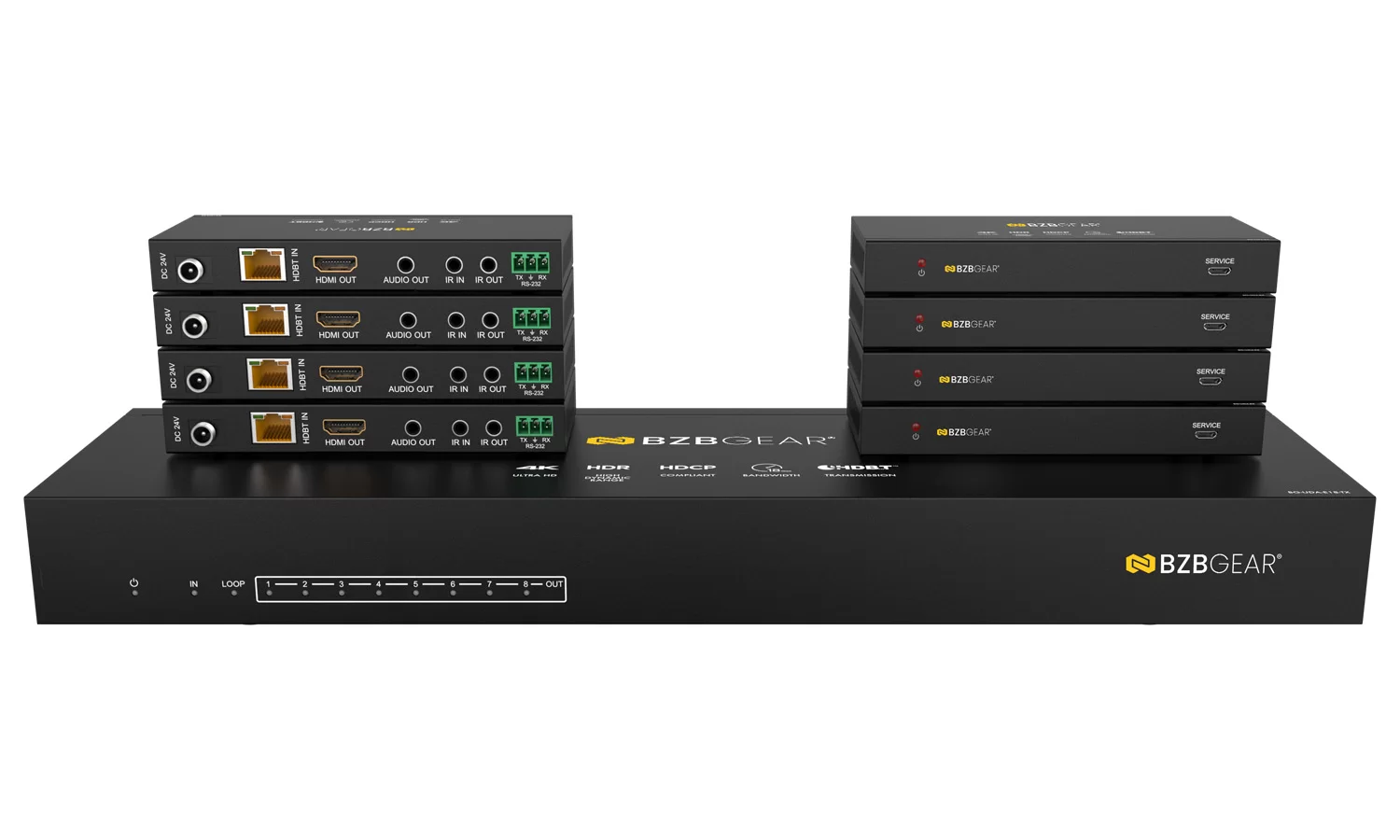

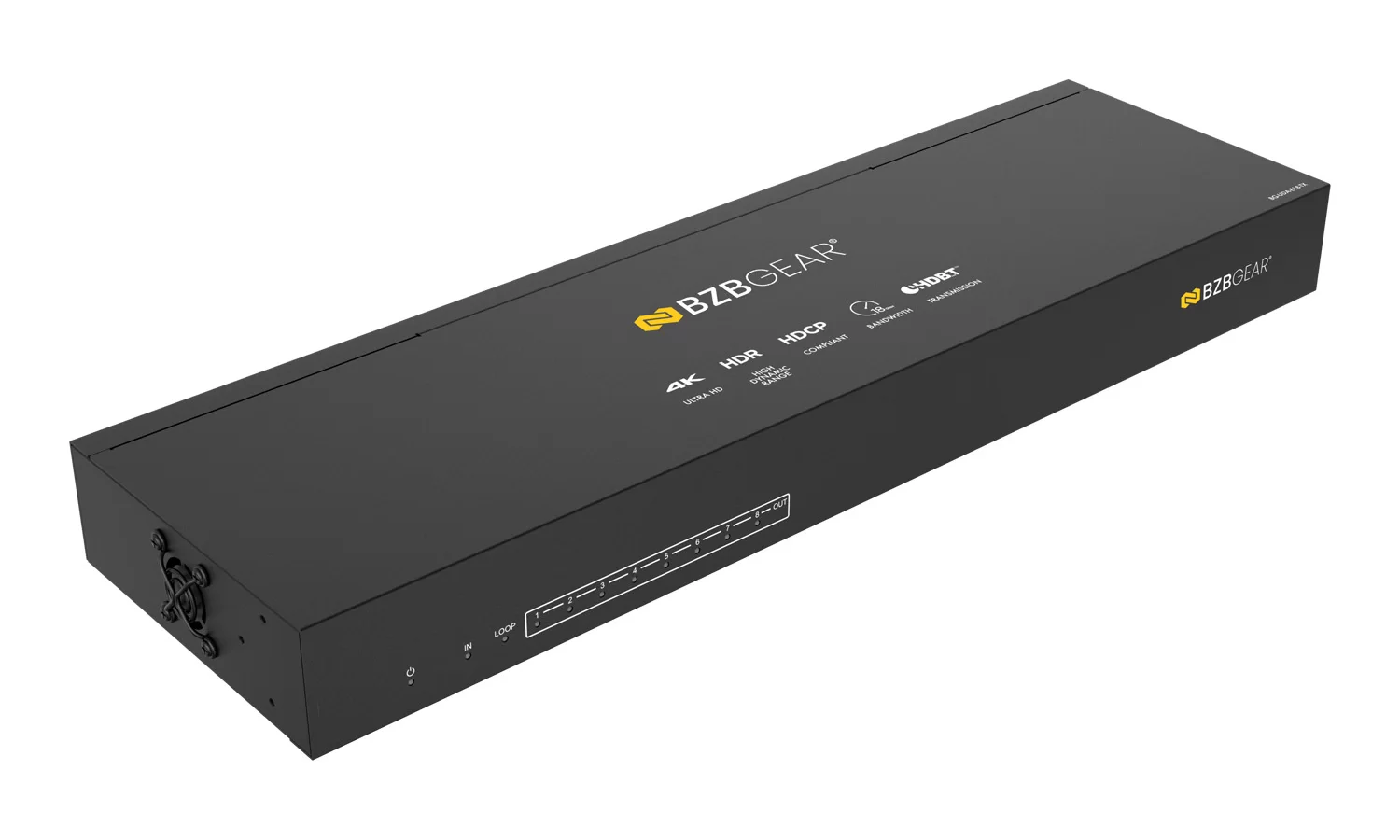

BZBGear BG-UDA-E18 1x8 HDBaseT Splitter Kit with Eight Receivers

The BG-UDA-E18 is the eight-output HDBaseT splitter kit: one HDMI input, one local loop output and eight HDBaseT outputs, each reaching 390 ft at 4K60 or 490 ft at 1080p60 over Cat6, with the receivers supplied.

It is built for the venue with screens spread across a building: HDMI 2.0b at 18 Gbps with HDCP 2.2, HDR, HDR10+, HLG and Dolby Vision pass-through, EDID management to keep a mixed set of displays stable, and audio broken out on digital coax and an analog phoenix connector. RS-232 is provided for control.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2/1.x
Video Bandwidth	594MHz/18Gbps
Video Resolution	Up to 4K2K@60Hz 4:4:4
Input	1x HDMI Type A (19-pin female)
Output	1x HDMI Type A (19-pin female) 8x HDBaseT OUT [RJ45] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [5-pin phoenix connector]
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coaxial Audio Formats	PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
