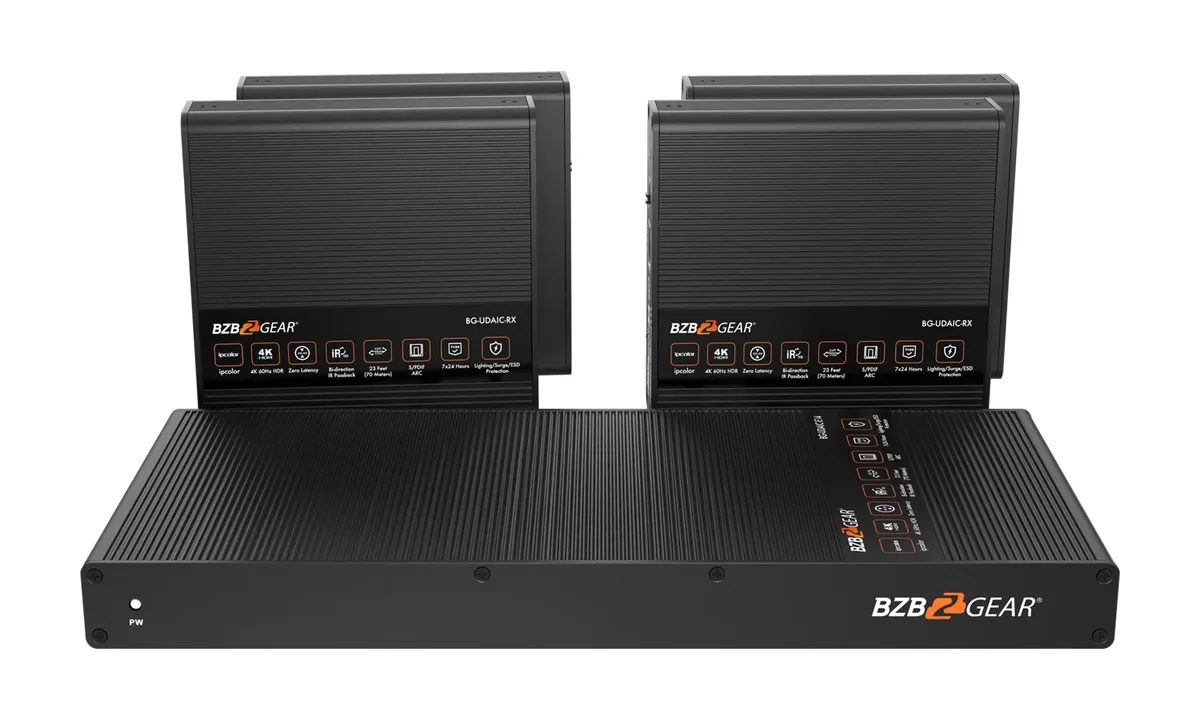

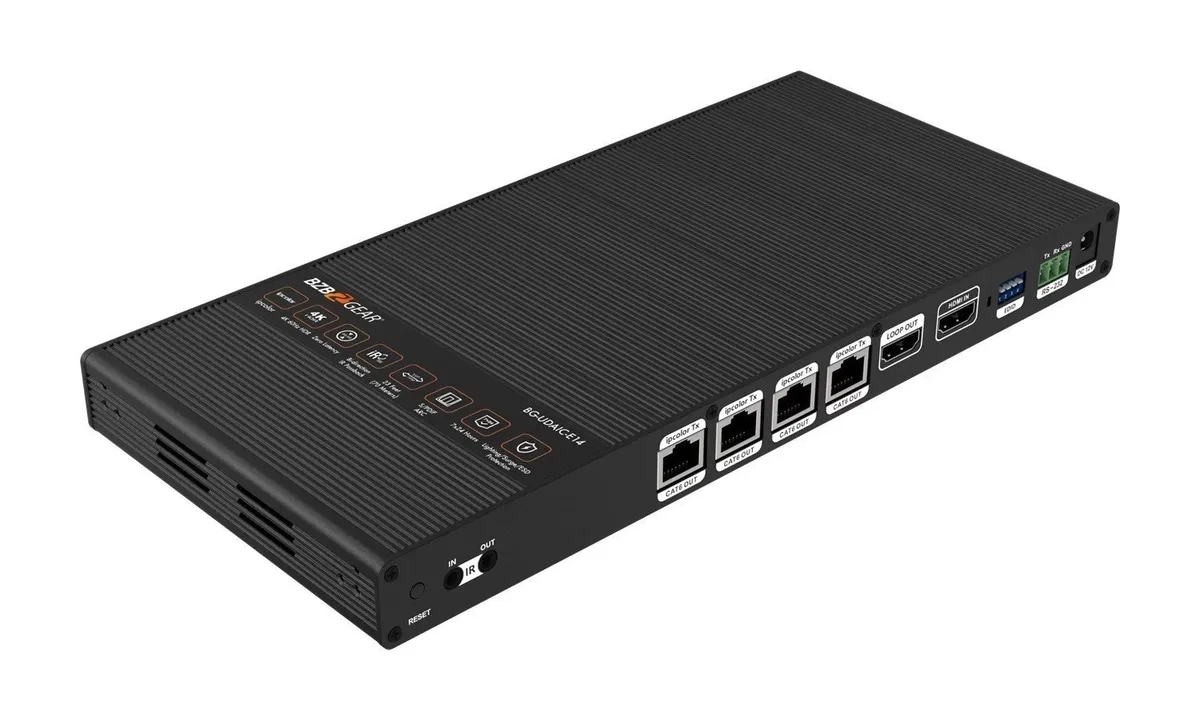

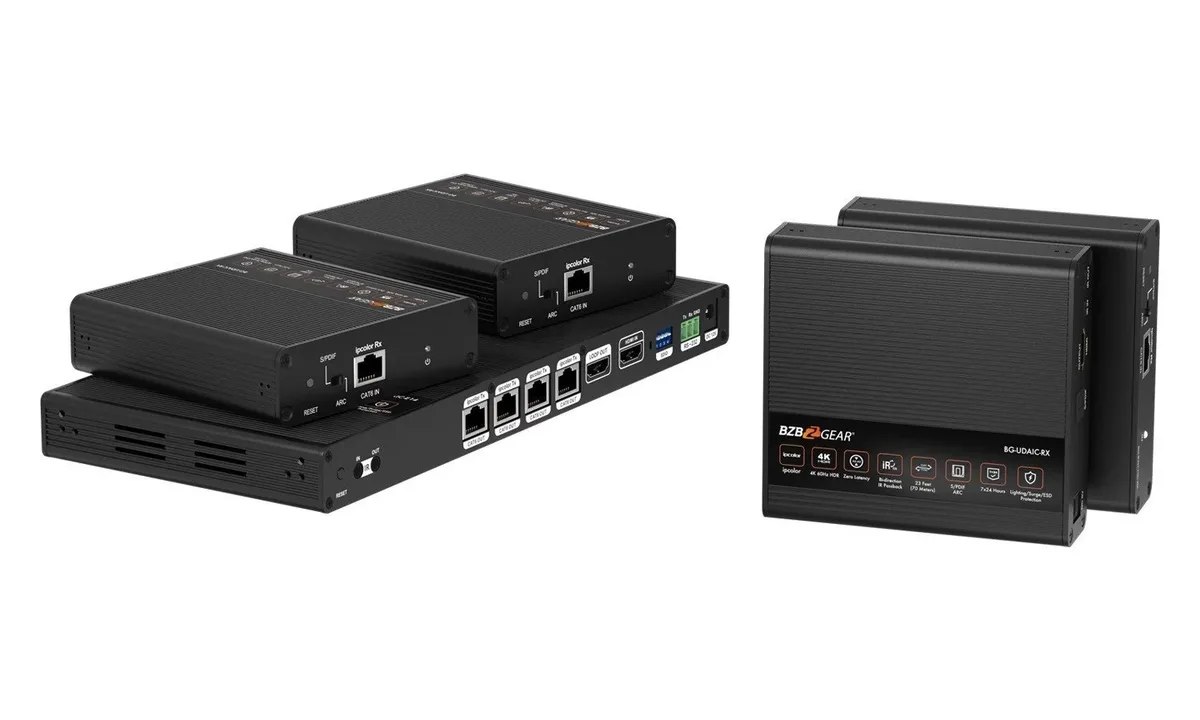

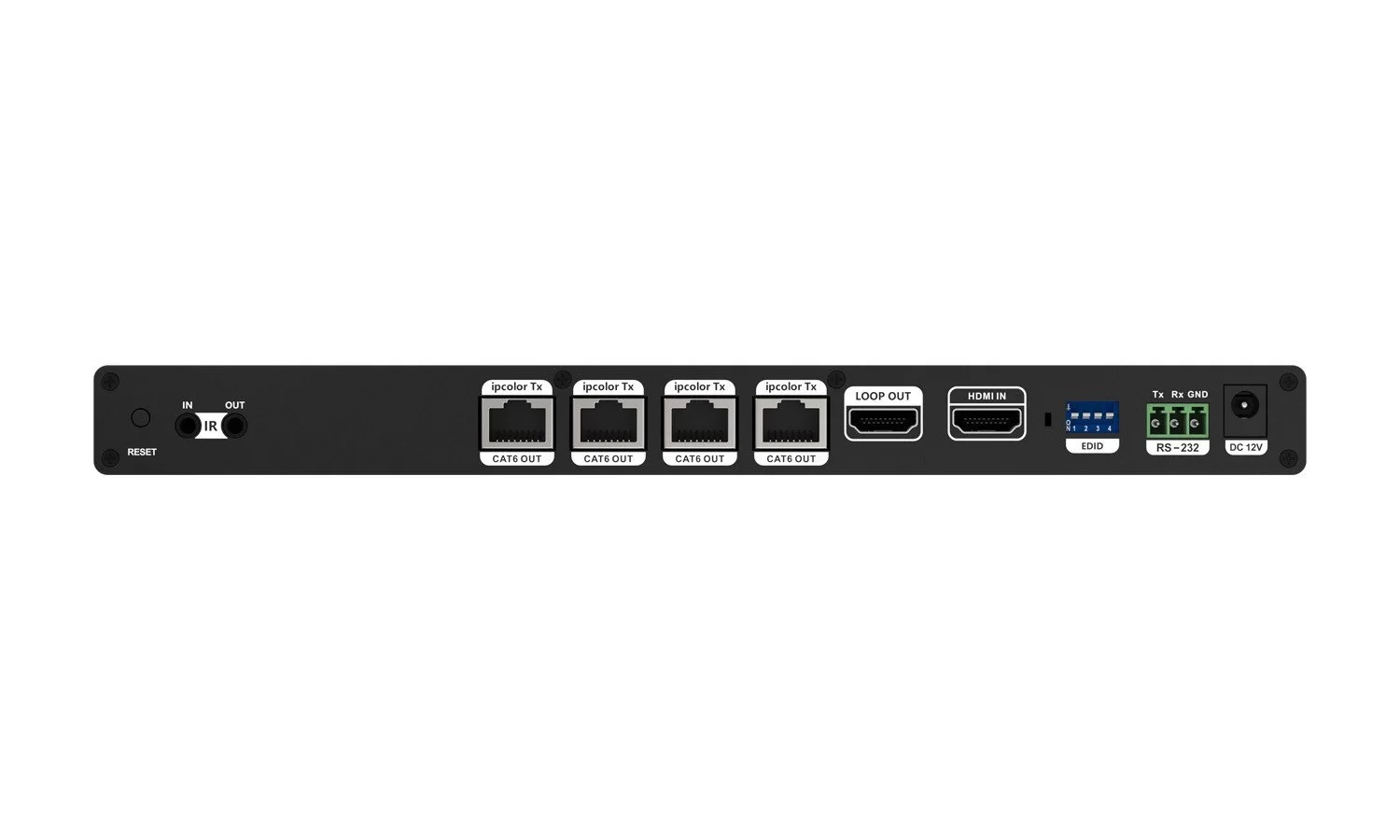

BZBGear BG-UDAIC-E14 1x4 HDMI Splitter Kit with Four Receivers

The BG-UDAIC-E14 distributes one HDMI input to four remote displays over Cat6, Cat6a or Cat7 at up to 70 m per run, with the four receivers included. It uses BZBGear's ipcolor transmission, which keeps latency low enough to be unnoticeable on live content.

Video is HDMI 2.0 with HDCP 2.2 at up to 4K60, and LPCM, DTS-HD, DTS-Audio and Dolby Digital 5.1 pass through. Bi-directional IR at 20 to 60 kHz and RS-232 travel with the video, so displays and sources can be controlled from either end. The transmitter draws under 13W and each receiver under 4W.

HDMI Resolution	480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz
Transmission protocol	ipcolor
Transmission distance	CAT6/6A/7 <= 70m
Audio formats	LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1
RS-232	3 pin: TxD-RxD-GND, follows RS-232 levels
Power supply	TX: DC 12V/2A RX: DC 5V/2A
Power consumption	TX<13W RX<4W
Dimension	TX: 9.7"(L) x 4.5"(W) x 0.9"(H) [264.00(L) x 104.00(W) x 23.50(H)mm] RX: 4.2"(L) x 3.9"(W) x 1.0"(H) [106.0(L) x 99.0(W) x 26.2(H)mm]
