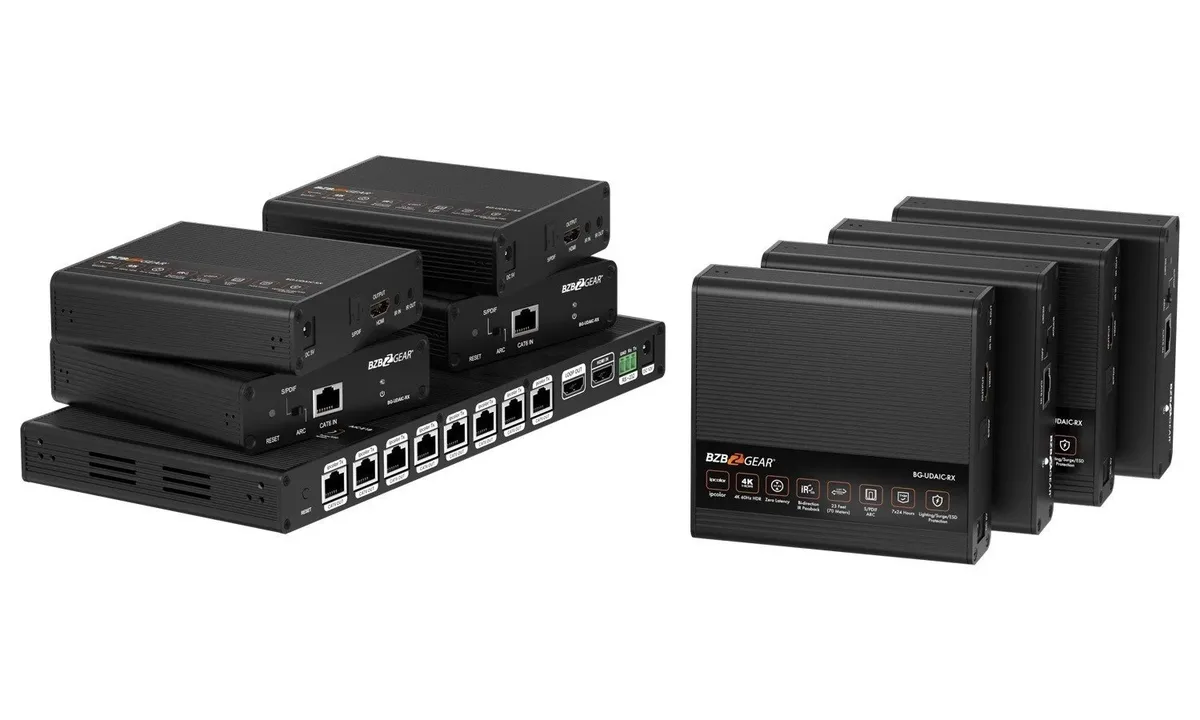

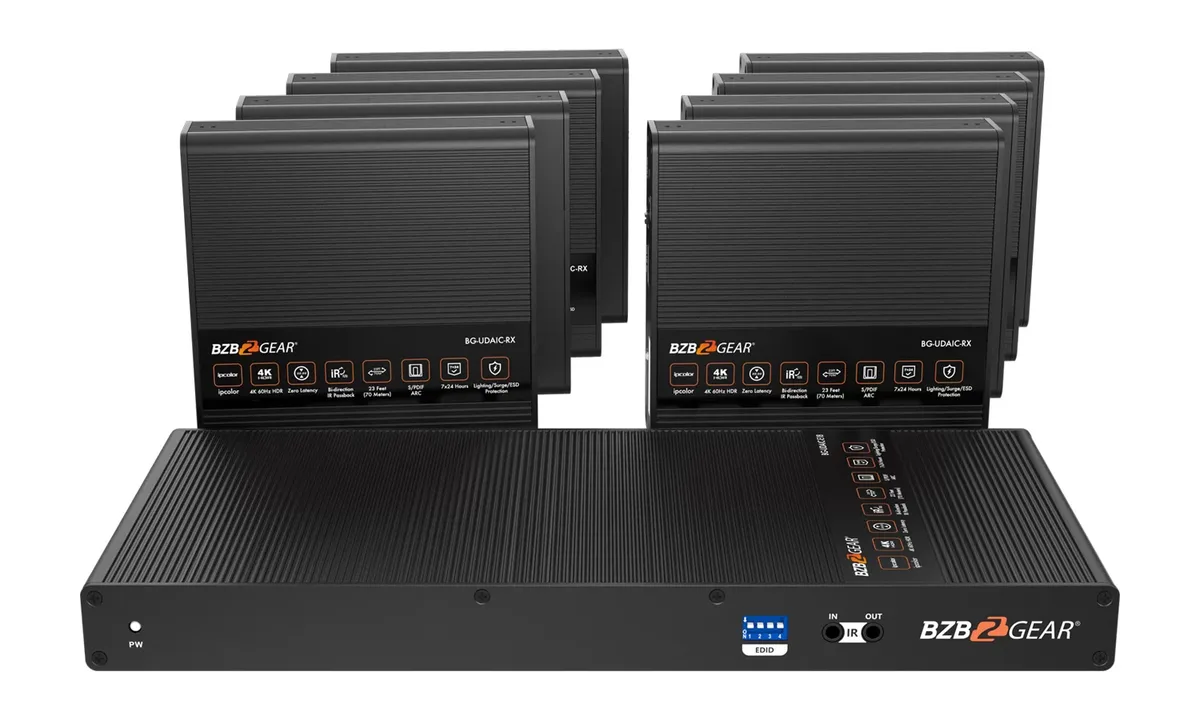

BZBGear BG-UDAIC-E18 1x8 HDMI Splitter Kit with Eight Receivers

The BG-UDAIC-E18 sends one HDMI source to eight remote displays over Cat6, Cat6a or Cat7, each run up to 70 m, with all eight receivers supplied. Transmission uses BZBGear's ipcolor protocol with no perceptible delay between the source and any screen.

It handles HDMI 2.0 and HDCP 2.2 up to 4K60, carries LPCM, DTS-HD, DTS-Audio and Dolby Digital 5.1, and passes bi-directional IR and RS-232 so control reaches both ends. The transmitter draws under 24W and each receiver under 4W.

HDMI Resolution	480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz
Transmission protocol	ipcolor
Transmission distance	CAT6/6A/7 <= 70m
Audio formats	LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1
RS-232	3 pin: TxD-RxD-GND, follows RS-232 levels
Power supply	TX: DC 12V/3A RX: DC 5V/2A
Power consumption	TX<24W RX<4W
Dimension	TX: 10.2"(L) x 4.7"(W) x 0.9"(H) [260.00(L) x 120.00(W) x 23.50(H)mm] RX: 4.2"(L) x 3.9"(W) x 1.0"(H) [106.00(L) x 99.00(W) x 26.20(H)mm]
