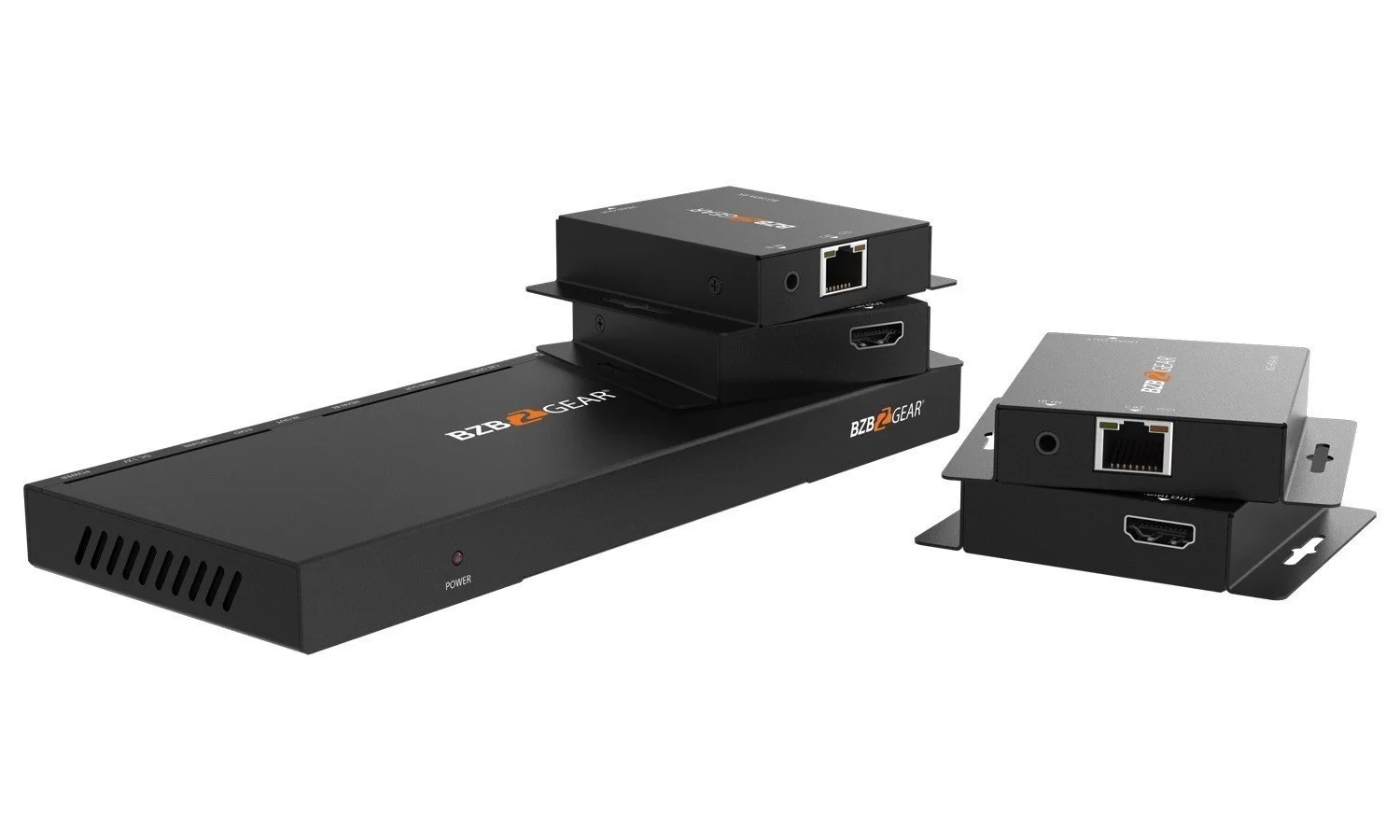

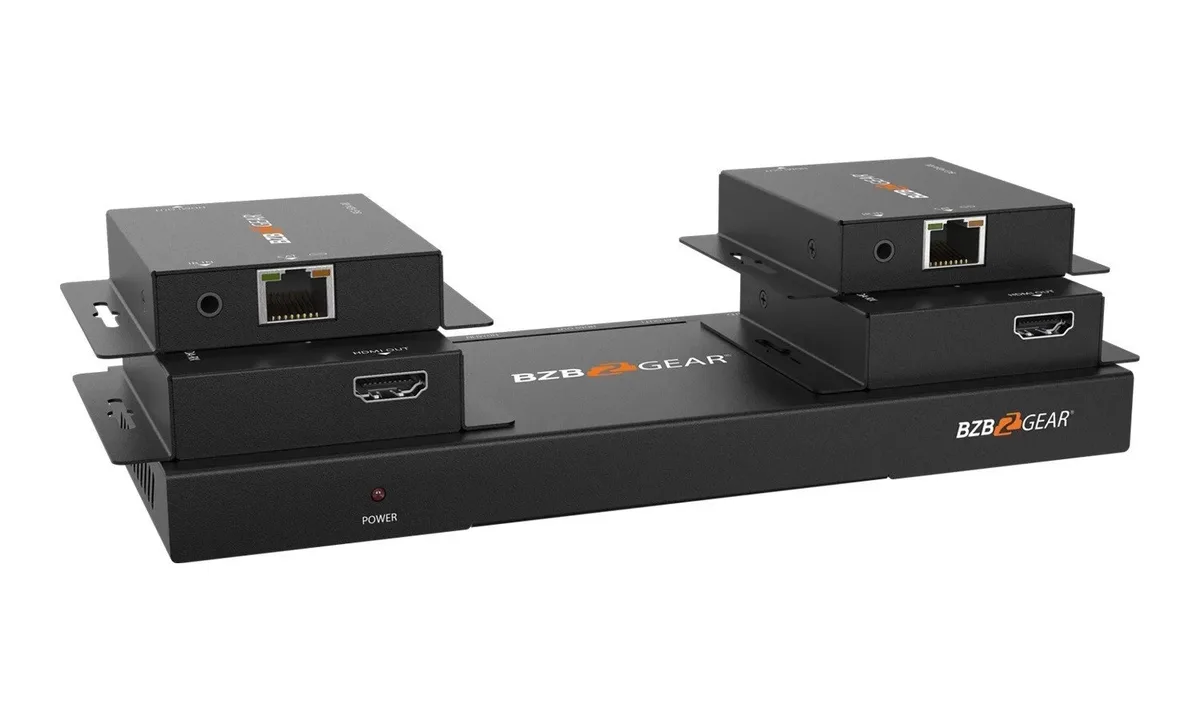

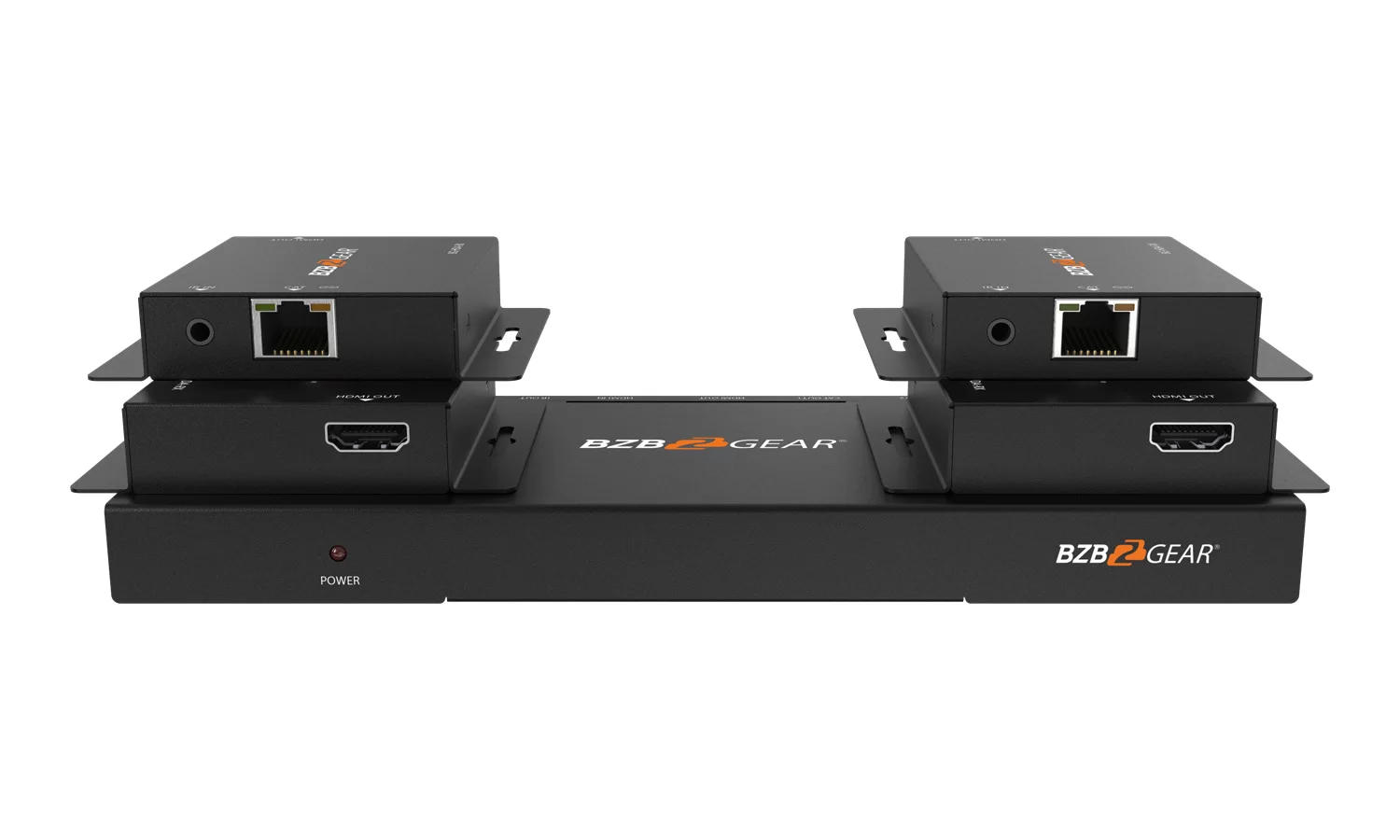

BZBGear BG-HDA-E14 1x4 HDMI Splitter Kit with Four Receivers

The BG-HDA-E14 splits a single HDMI source to four displays over Cat6, reaching 70 m at 1080p60 or 50 m at 4K30 4:4:4. The four receivers ship with it, so nothing else needs ordering to finish the job.

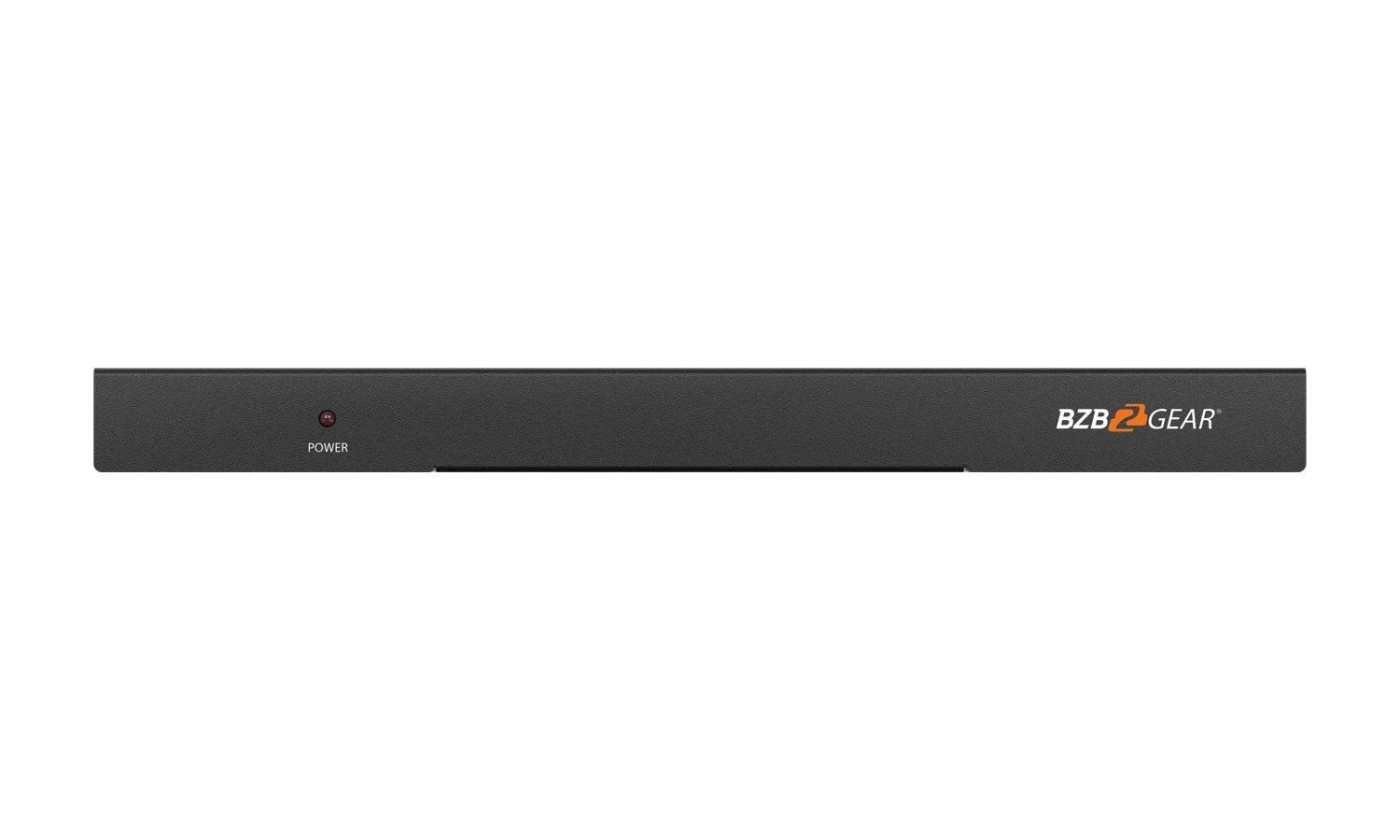

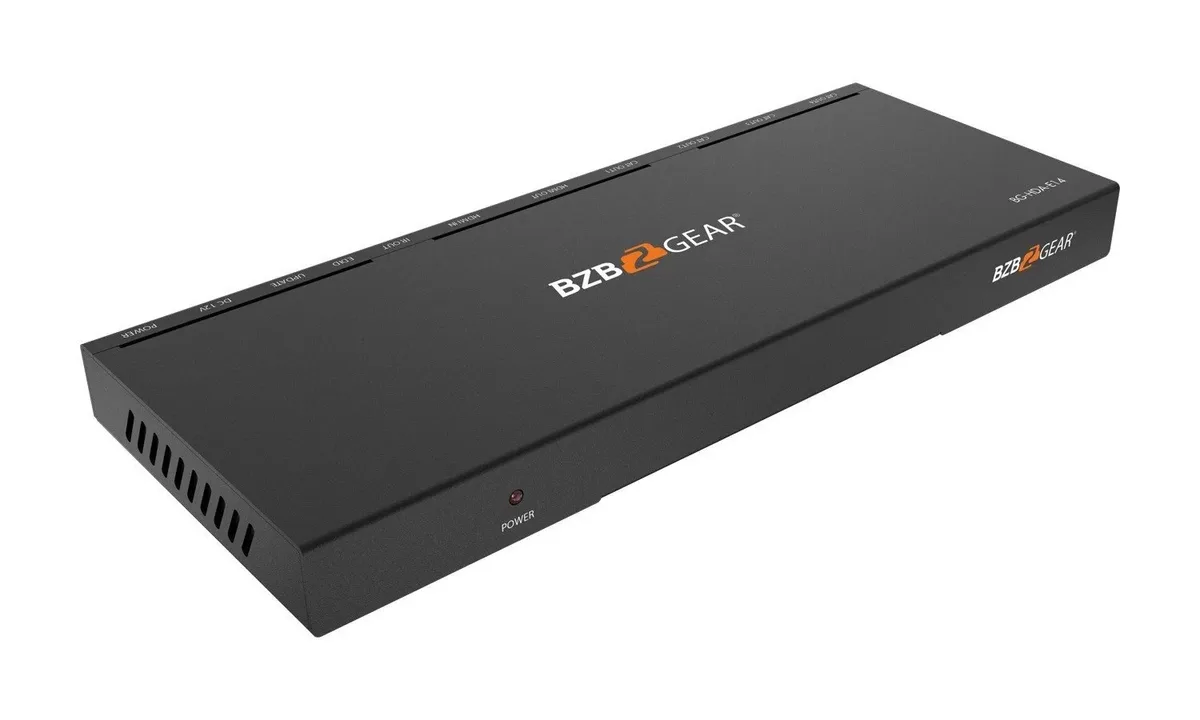

The transmitter has an HDMI input, an HDMI loop output for a local monitor and the category outputs. Video runs on a 297 MHz, 10.2 Gbps link with HDCP 1.4, and audio up to LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio passes through. IR inputs on the receivers send control back to the source end.

HDMI ComplianceHDMI 1.4
HDCP ComplianceHDCP 1.4
Video Bandwidth297MHz/10.2Gbps
Video Resolution480i ~1080p@50/60Hz, 4Kx2K@30Hz (4:4:4)
Audio FormatsLPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
Color Depth8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz)
Color SpaceRGB, YCbCr_4:4:4/4:2:2, YUV_4:2:0
Power Supply12V/2.5A DC Power (US/EU standards, CE/FCC/RoHs certificated)
