Blackmagic DeckLink IP/SDI HD

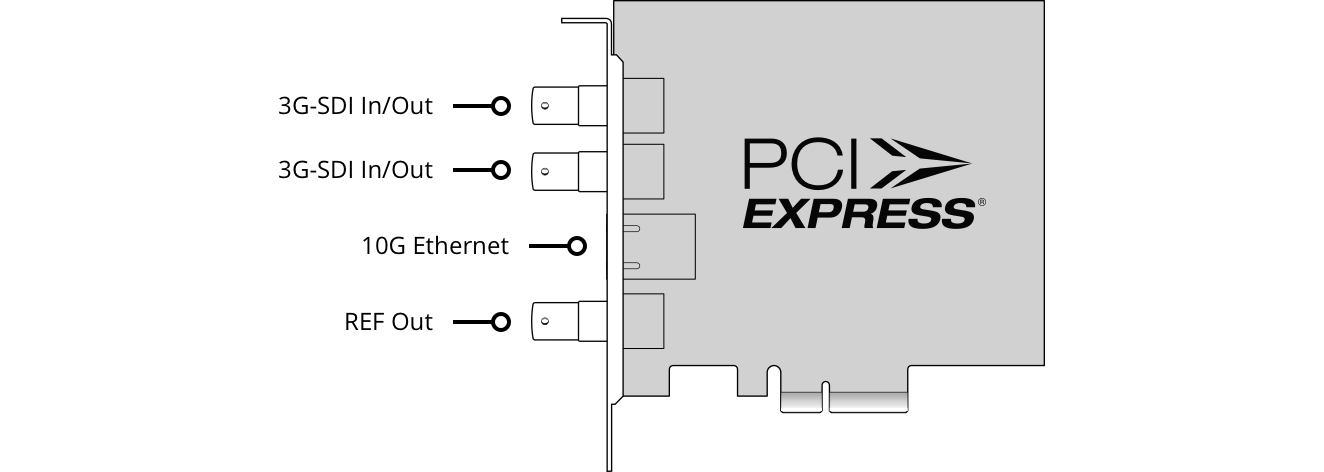

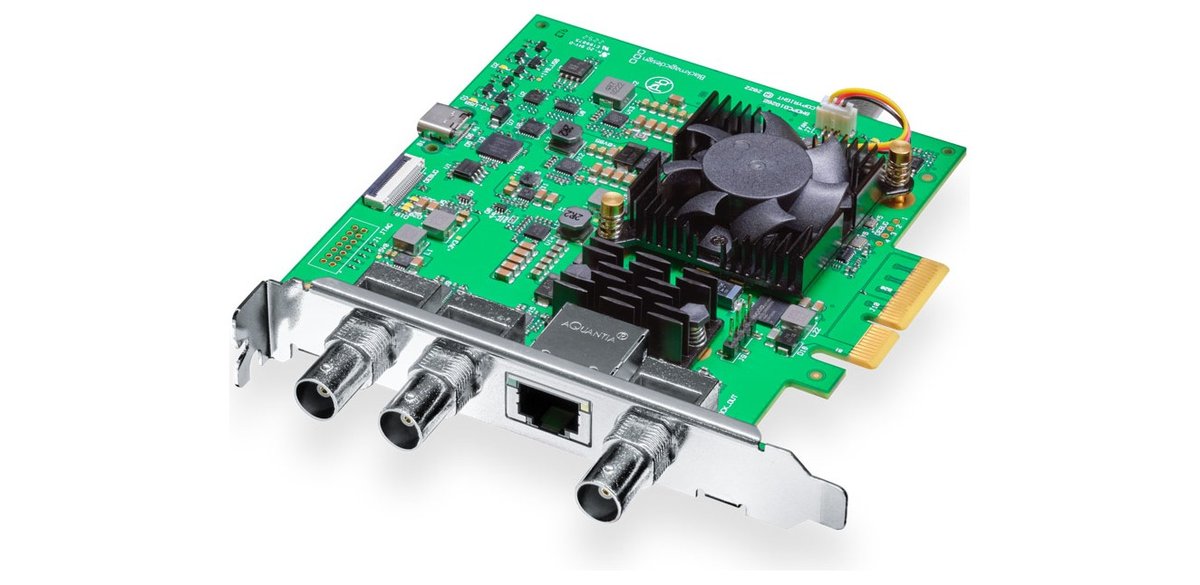

The Blackmagic DeckLink IP/SDI HD is a PCIe capture and playback card that connects to both 3G-SDI and SMPTE-2110 IP systems, so a single card can straddle a facility that is part traditional and part IP. Its two 12-bit SD/HD SDI ports are bidirectional and independently configurable as inputs or outputs, each carrying 16 channels of embedded audio.

On the IP side, a 10G BASE-T Ethernet port supports two input channels and two output channels, each up to 1080p60 with 16 audio channels, letting the card feed and pull uncompressed video from a 2110 network. It installs in a PCI Express 4-lane generation 2 slot and is compatible with 4, 8 and 16 lane slots. It ships as part number BMD-BDLKIPFIP/SDI/HD.
