Blackmagic DeckLink IP HD

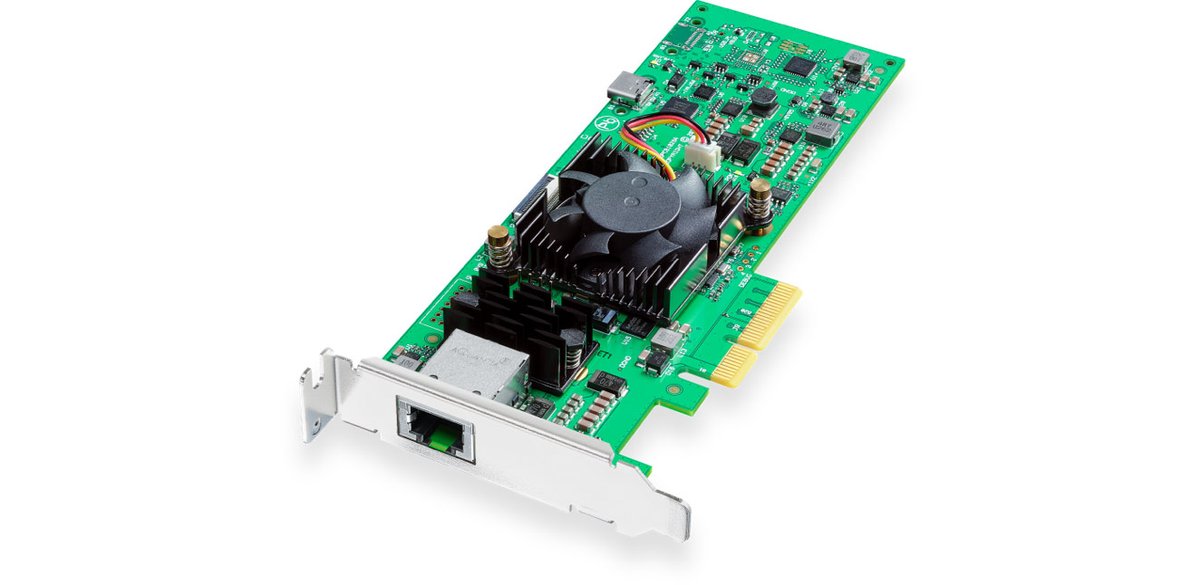

DeckLink IP HD is a PCIe card that connects a workstation directly to a SMPTE ST-2110 IP broadcast system without any SDI wiring. Over a single RJ45 10G Ethernet connection it provides two channels of video capture and two channels of video playback, each up to 1080p60 with 16 channels of embedded audio, so an edit or graphics station becomes a native node on an IP video network.

The connections are multi-rate and support 525i, 625i, 720p, 1080i and 1080p standards up to 1080p60, and the card is designed for high-quality workflows using Apple ProRes, DNxHD or 10-bit uncompressed. It installs in a PCI Express 4-lane generation 2 slot and is compatible with 4, 8 and 16-lane slots. G&G stocks it as Blackmagic part number BMD-BDLKIPBIP/HD.
